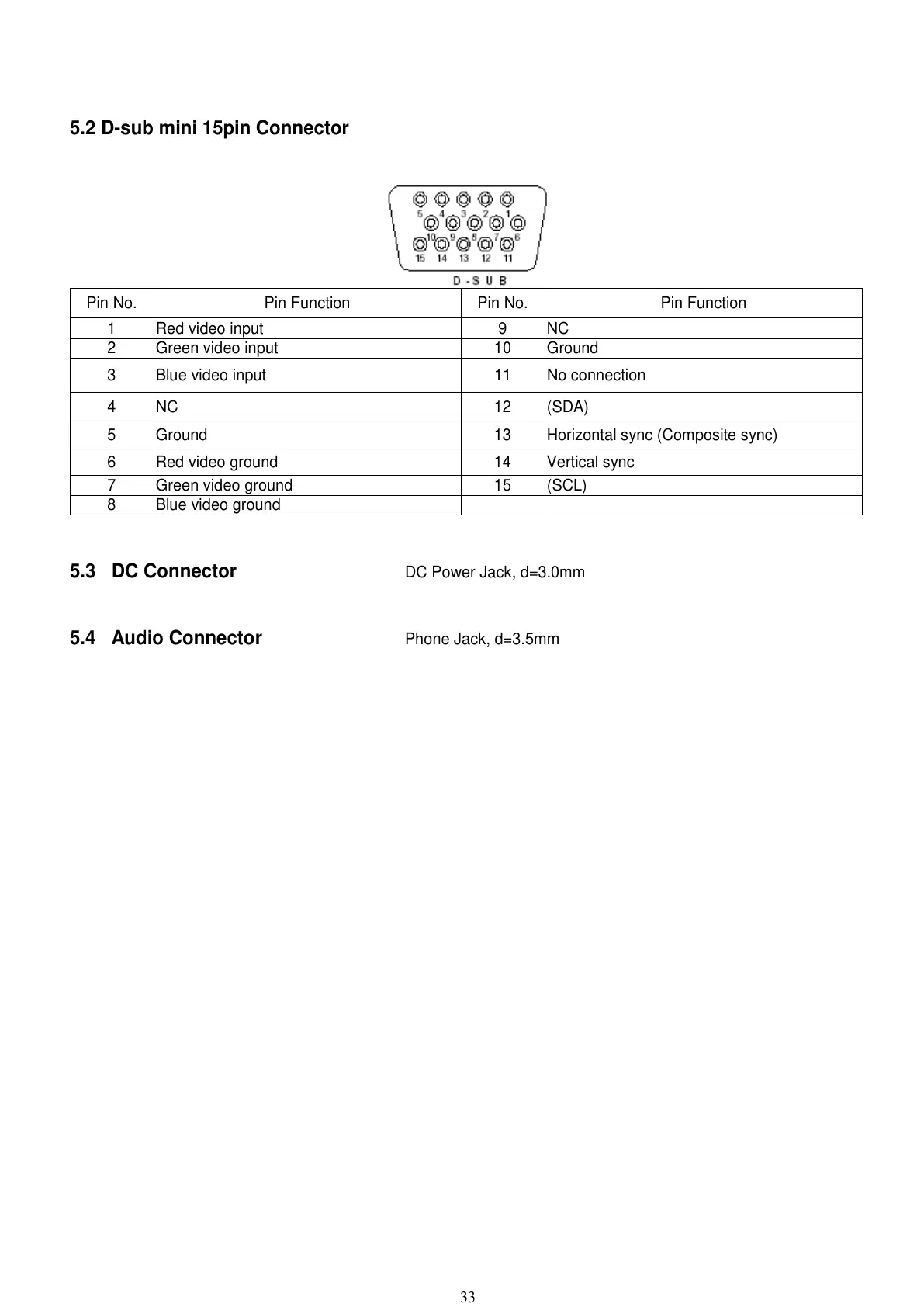

5.2 D-sub mini 15pin Connector
Pin No. Pin Function Pin No. Pin Function
1 Red video input 9 NC
2 Green video input 10 Ground
3 Blue video input 11 No connection
4 NC 12 (SDA)
5 Ground 13 Horizontal sync (Composite sync)
6 Red video ground 14 Vertical sync
7 Green video ground 15 (SCL)
8 Blue video ground
5.3 DC Connector DC Power Jack, d=3.0mm
5.4 Audio Connector Phone Jack, d=3.5mm
