Chapter 3
97
LCD Module Disassembly Process

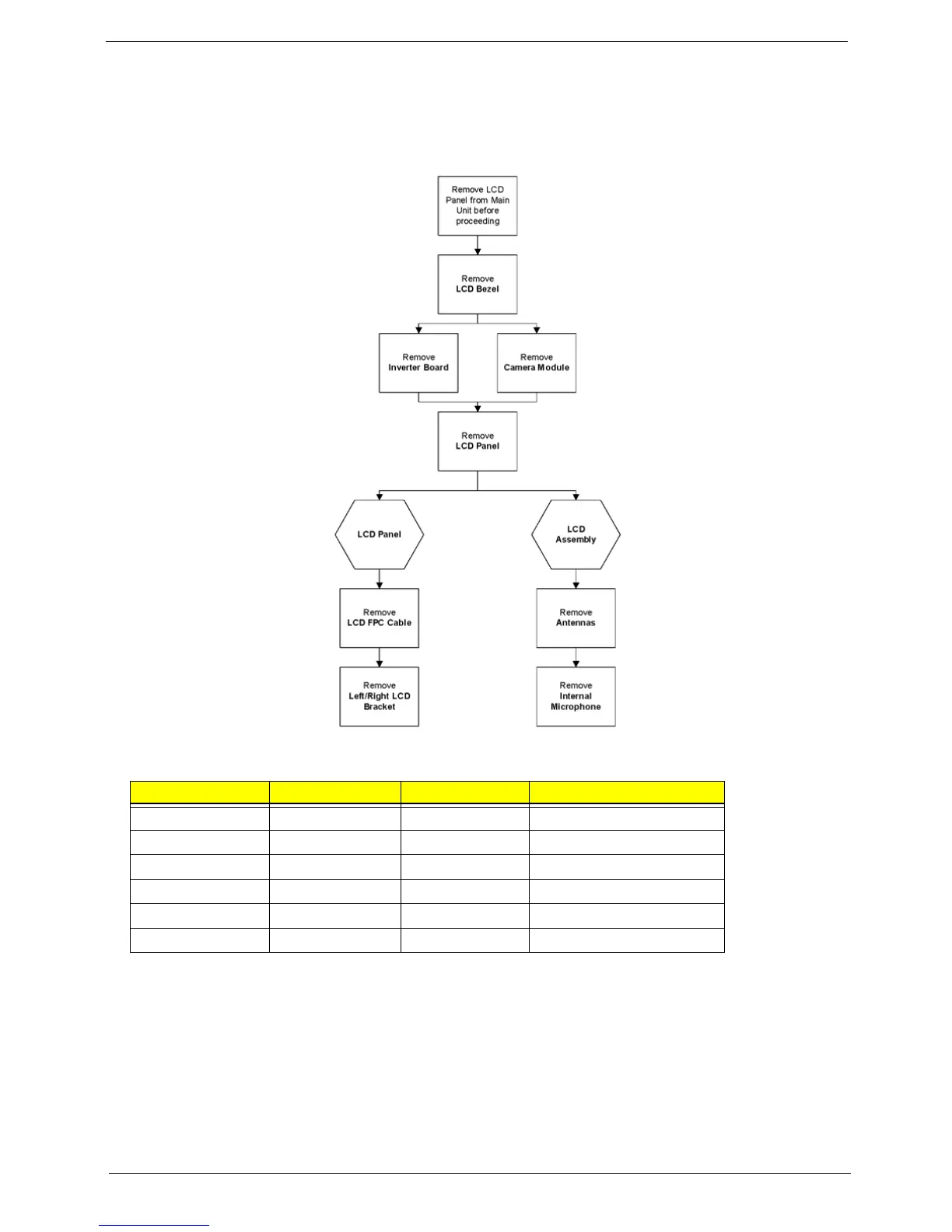

LCD Module Disassembly Flowchart
Screw List
Ste
p
Screw
Quantity
Part No.
LCD Bezel
M2.5*5 (NL)
4
86.APV02.002
Inverter Board
M2.5*
5 (NL)
1
86.APV02.002
Camera Module
M2*3
(NL)
2
86.APV02.004
Camera Board
M2*3
(NL)
1
86.APV02.004
LCD Panel
M2.5*5
(NL)
2
86.APV02.002
LCD Brackets
M2*3 (NL)
8
86.APV02.004
106
