Main Board

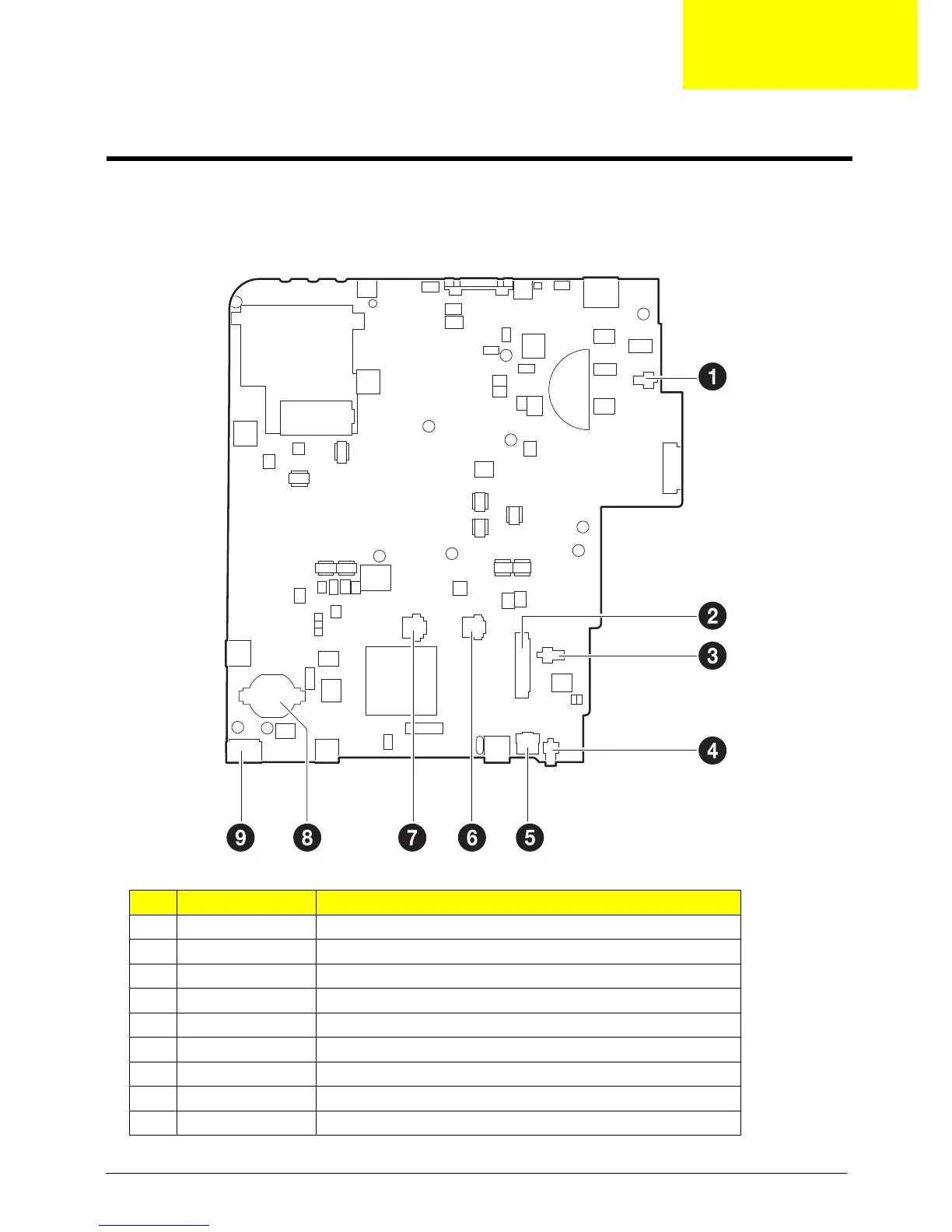

Top View
No. Code Connector
1 SPKR_L1 Left speaker cable connector
2 KB1 Keyboard cable connector
3 AMIC1 MIC cable connector
4 SPKR_R1 Right speaker cable connector
5 PSCN1 Volume button board cable connector
6 TPCN1 Touchpad board cable connector
7 FPCN1 Fingerprint cable connector
8 RTC1 RTC battery connector
9 USBCN1 USB cable connector
Connector Locations
Chapter 5

Acer Aspire 5738Z Series Specifications

General

Graphics	Intel GMA 4500M
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Card Reader	5-in-1 card reader (SD, MMC, MS, MS PRO, xD)
RAM	Up to 4 GB DDR3
Storage	320GB HDD
Display	15.6" HD (1366 x 768)
Operating System	Windows Vista Home Premium
Optical Drive	DVD-Super Multi double-layer drive
Battery	6-cell Li-ion
Weight	2.7 kg
Chipset	Mobile Intel GL40 Express Chipset
Wireless	802.11b/g Wi-Fi
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x Ethernet, 1 x Headphone, 1 x Microphone
Dimensions	383 x 250 x 26/38.6 mm (15.1 x 9.8 x 1.0/1.5 inches)
Processor	Intel Pentium Dual-Core T4200
