Acer Aspire 7220 User Manual

Chapter 1 7

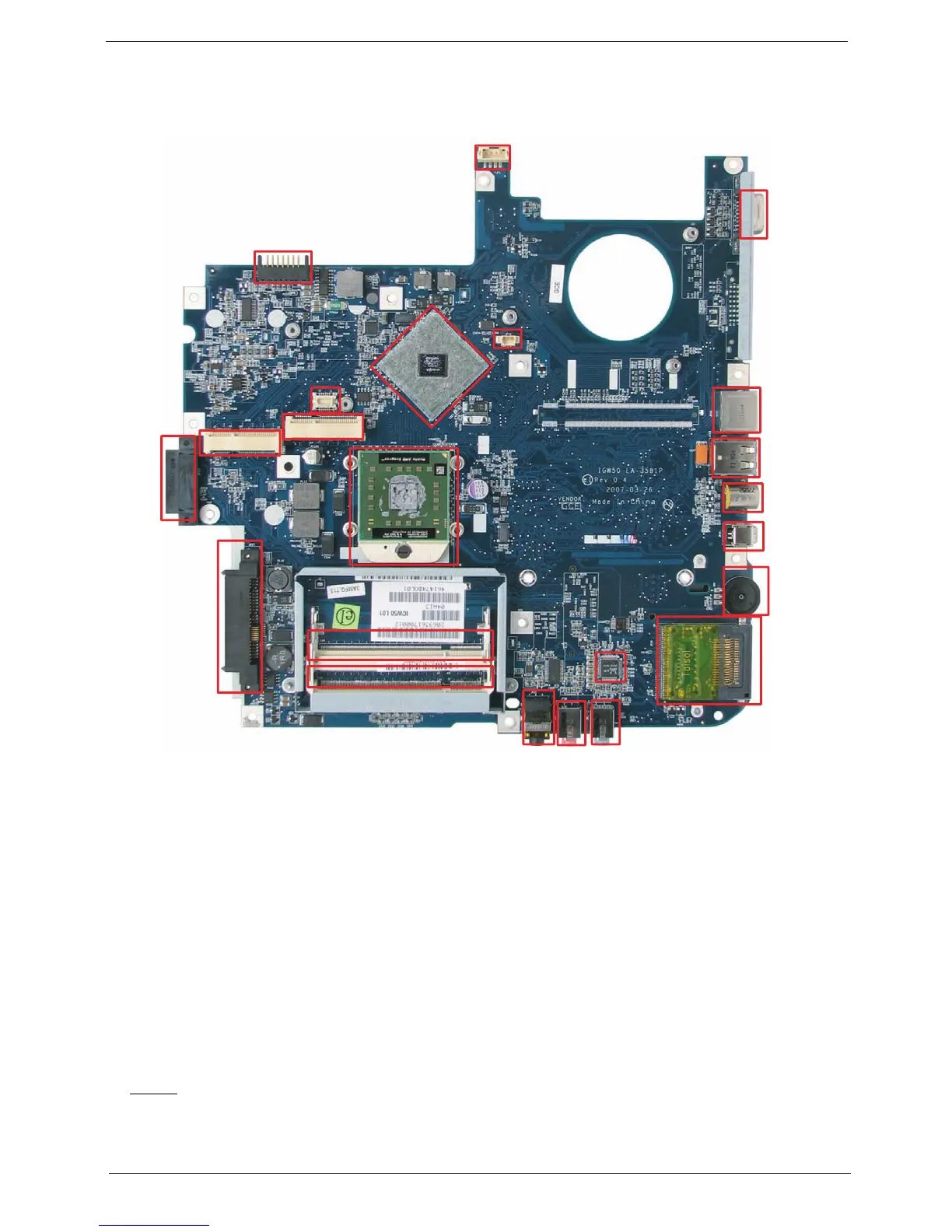

Bottom View
1 PJP1 DC-in Power Jack 13 JP26 IEEE1394 Connector
2 PJP2 Battery Connector 14 JP27 SATA HDD Connector
3 JP14 D-Sub CRT Connector 15 JP22 CPU Socket
4 JP25 ODD Connector 16 SW1 Volume Control
5 JP20 Mini Card (TV-Tuner) Connector 17 JP28 DDRII Memory Socket
6 JP20 Mini Card (WLAN) Connector 18 JP29 DDRII Memory Socket
7 JP21 Mini Card (TV-Tuner) Socket 19 U29 Audio Codec Controller
8 U23 North Bridge 20 JP31 Line-Out/Headphone/SPDIF Jackt
9 JP16 Internal Fan Connector 21 JP32 Mic-in Jack
10 JP18 RJ45 (LAN) Connector 22 JP33 Line-in Jack
11 JP23 USB (Dual) Connectors 23 JP33 Memory Card Reader
