Disassembling the LCD Module

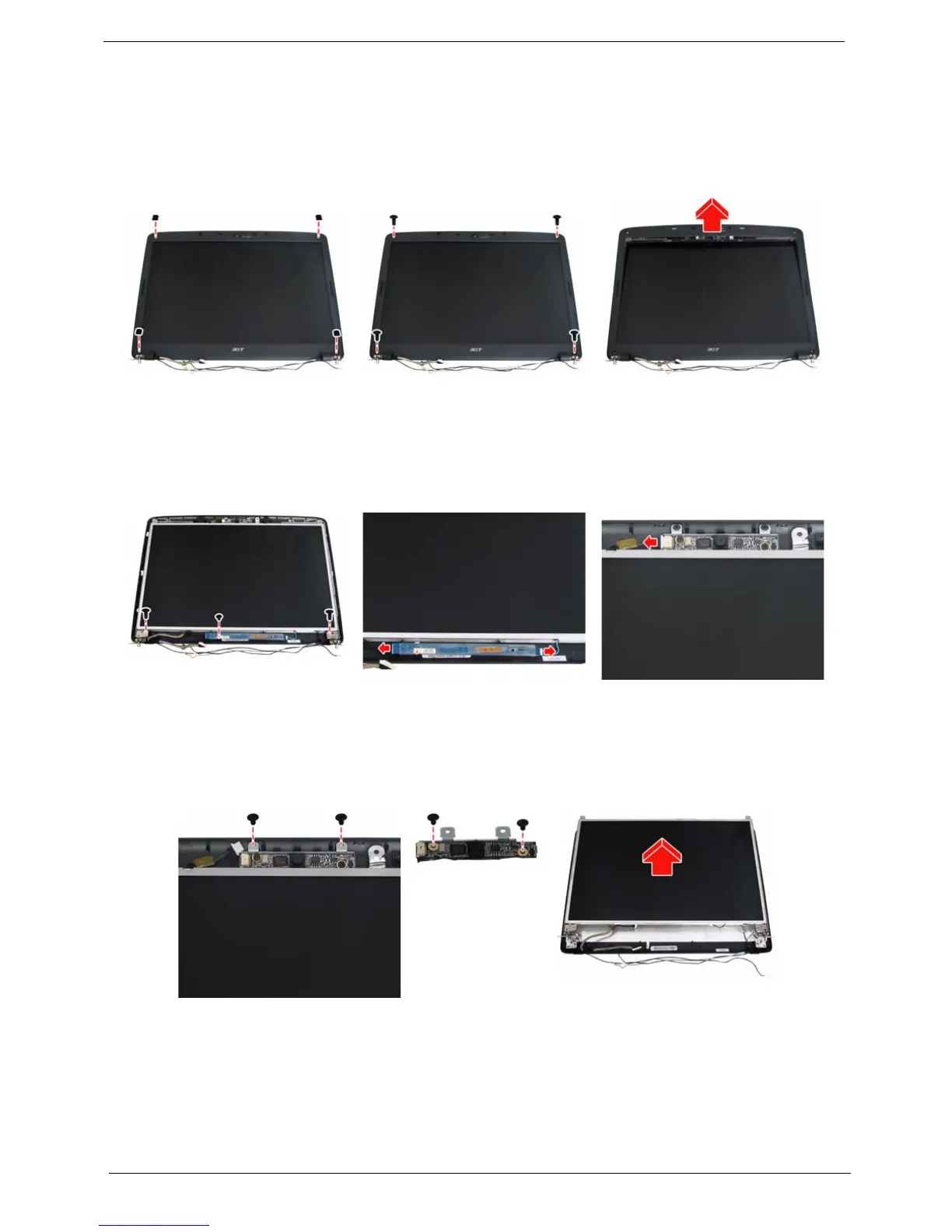

1. Remove the four screw rubbers as shown.
2. Then remove the four screws fastening the LCD bezel.
3. Detach the LCD bezel from the LCD module carefully.
4. Remove the two screws holding the LCD and the one screw holding the inverter board to the LCD panel.
5. Detach the two inverter cable connectors from the inverter board.
6. Detach the CCD cable connector from the CCD board.
7. Remove the two screws fastening the CCD module to the LCD panel and remove the CCD module.
8. Remove the two screws fastening the CCD board to the CCD bracket.
9. Lift out the LCD from the LCD panel as shown.
