Acer Aspire one Series Service Manual

Chapter 3 95
Removing the Antennas
1. See “Removing the LCD Panel” on page 90.

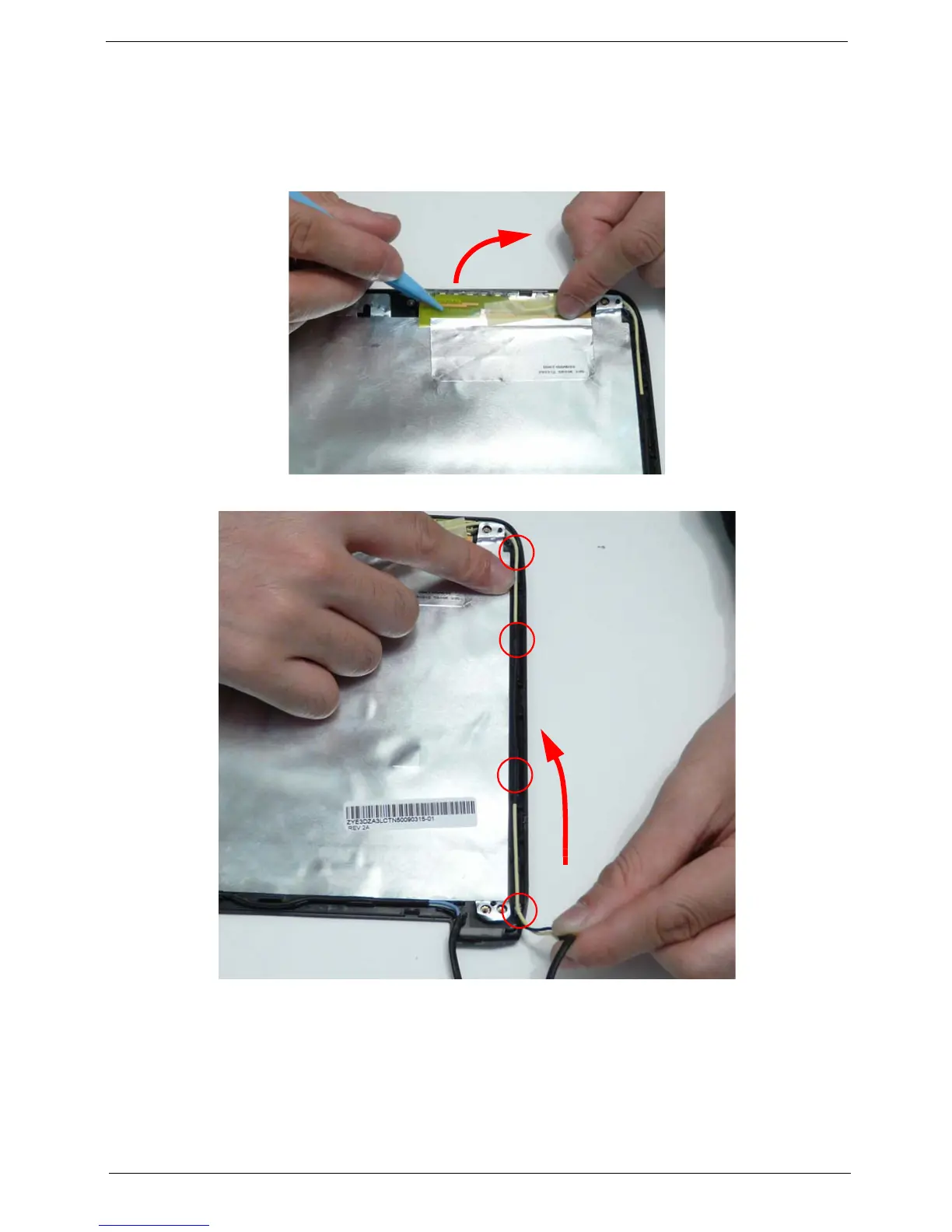

2. Carefully pry up the right Antenna pad, as shown, and remove the pad from the LCD Module.
IMPORTANT: A strong adhesive is used to secure the Antenna pad in place. Take care not to bend the pad during
removal.
3. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips.

Acer Aspire one Series Specifications

General

Processor	Intel Atom N270/N280
Resolution	1024 x 600 pixels
RAM	1GB/2GB DDR2
Storage	8GB, 16GB SSD, 160GB HDD
Operating System	Windows XP or Linux
Graphics	Intel GMA 950
Battery	3-cell, 6-cell Lithium-Ion
Wireless	Wi-Fi 802.11b/g
Webcam	0.3 MP
Card Reader	SD card reader
Connectivity	Ethernet
Ports	VGA, USB 2.0, Headphone, Microphone
