5-17
Service and Maintenance
HDD Board Removal
Prerequisite
:
Mainboard Removal
on p
age
5-39
1.
Remove the two (2) screws secu
ring the HDD bracket to the
HDD.

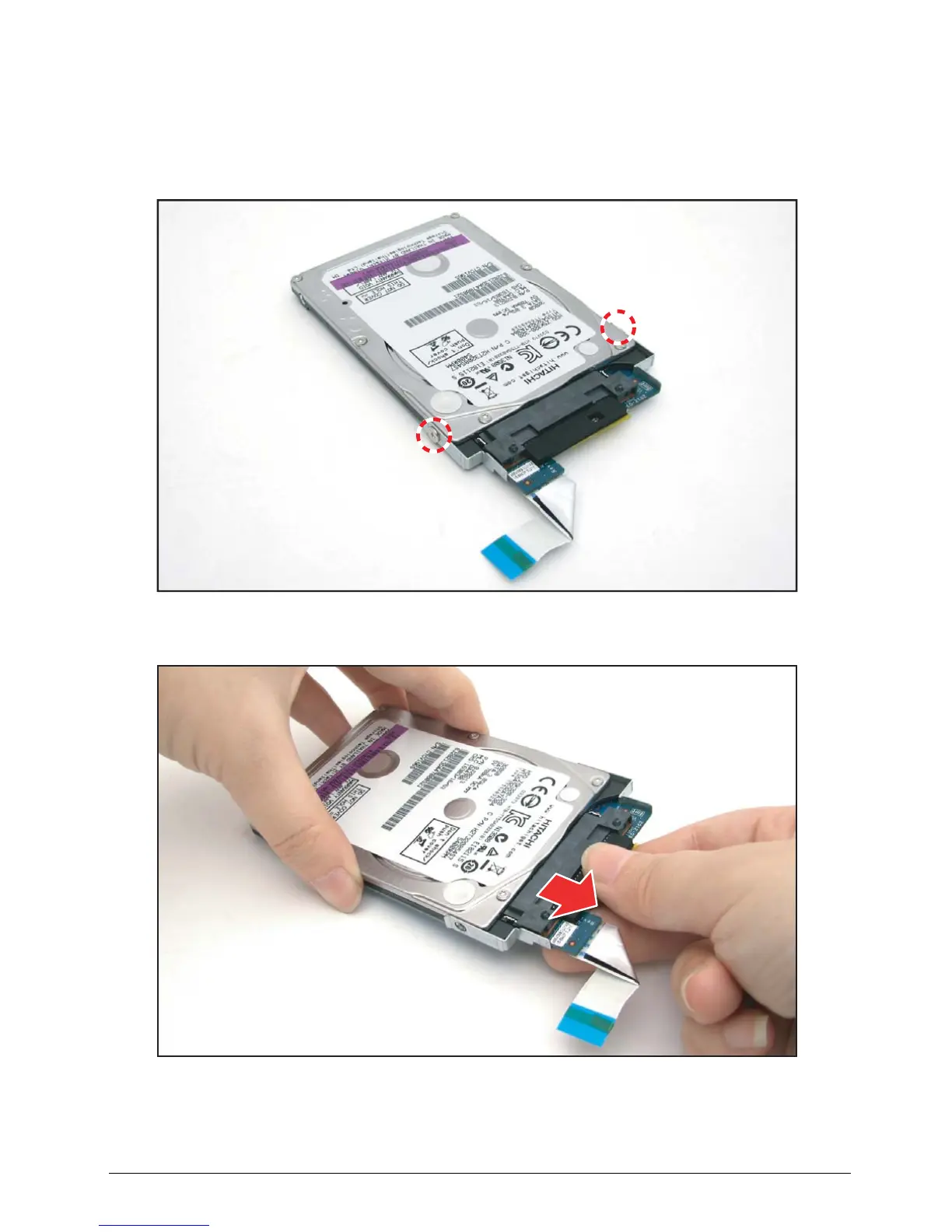

Figure 5:17. Removing the HDD Bracket
s
2.
Pull to disconnect the HDD bo
ard connector from the HDD.
Figure 5:18. Disconnecting the HDD Connect
or
112
