5-53 Service and Maintenance
Speaker Installation
1. Align and place the left speaker on its slot on the lower case.

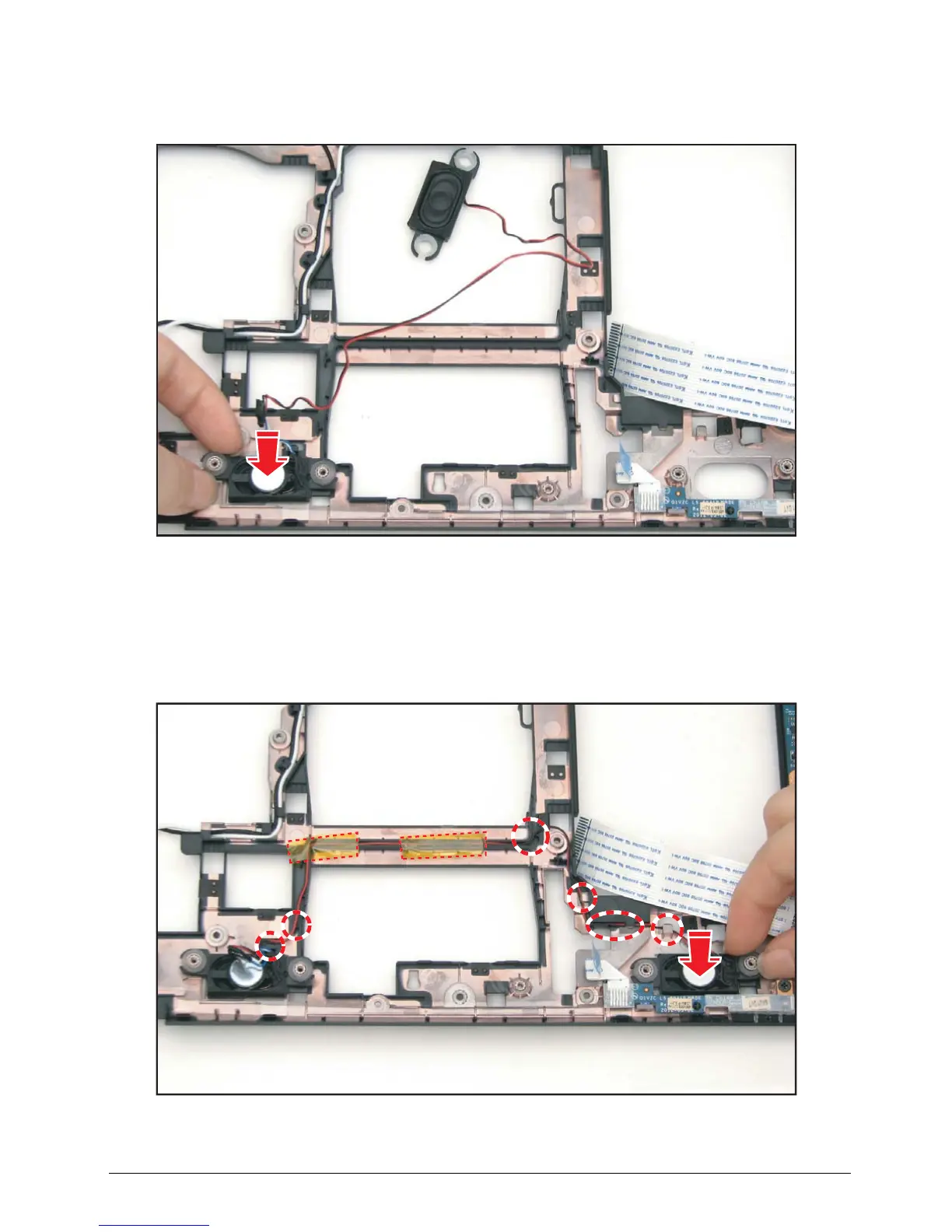

Figure 5:71. Installing the Speakers (1 of 2)
2. Do the following:
a. Route the speaker cable through the guides on the lower case.
b. Place the right speaker to its slot.
c. Attach the tapes to secure the speaker cable.
Figure 5:72. Installing the Speakers (2 of 2)
