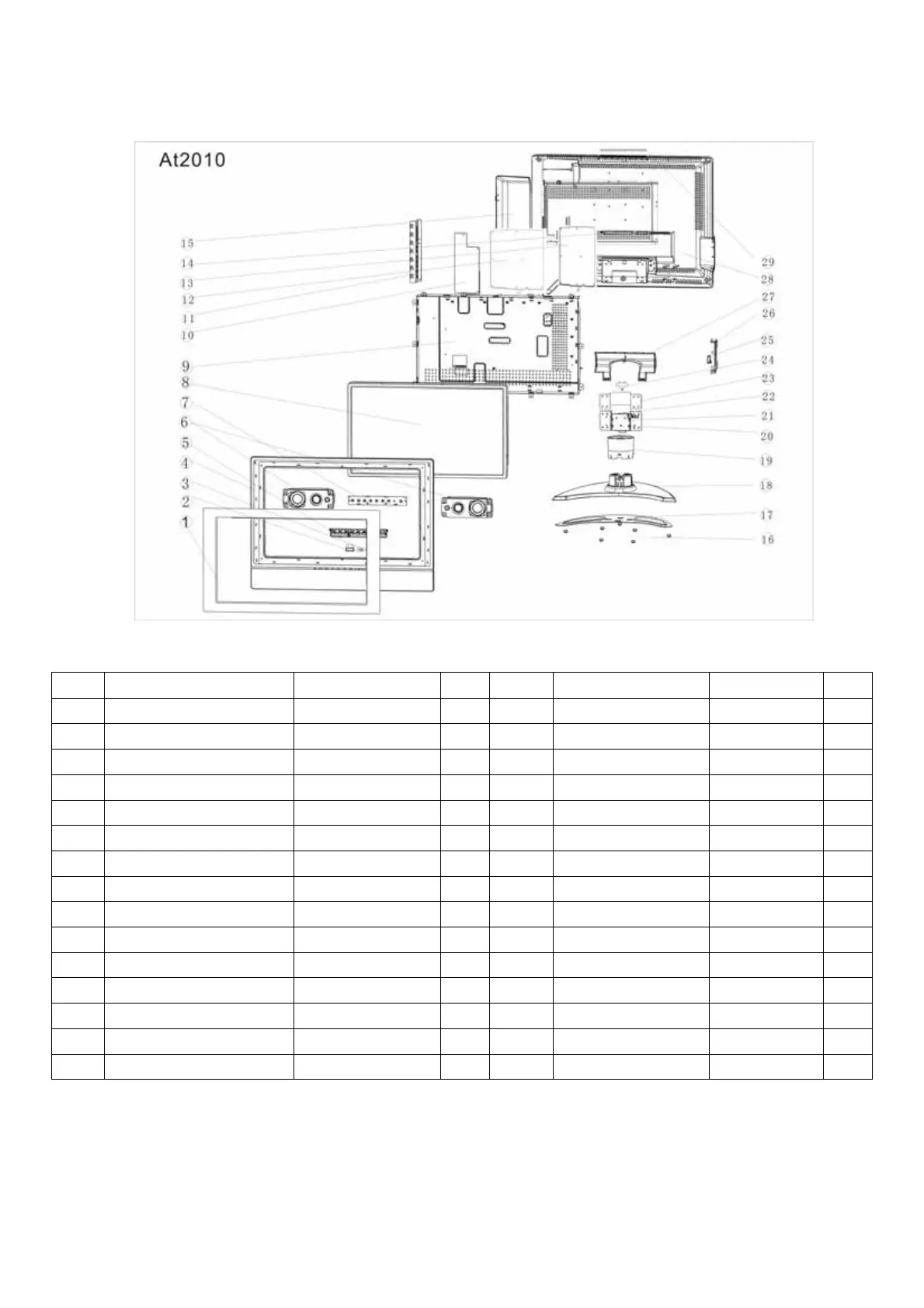

Exploded Diagram (Model: AT2010)

Index Part Name Part No. Qty Index Part Name Part No. Qty

1 BEZEL PLATE Q34T 5 1 16 RUBBER FOOT 012T 394 3 7

2 REMOTE LENS Q33T 12 1 17 BASE BKT Q15T 12 1 1

3 POWER LENS Q33T 11 1 1 18 BASE Q34T 17 1

4 BEZEL Q34T 16 1 19 STAND M1L1140-6128 1

5 KEY PAD Q33T 10 1 20 HINGE 037T 525 2 1

6 SPEAKER 078T 443 2 21 STAND MID Q33T4836 1

7 KEY BOARD FOR ROHS KEPFA60KB6P 1 22 STAND TOP Q33T4837 1

8 PANEL 750TVMA1WB1 1 23 HINGE BKT 015T6257 1 1

9 MAIN FRAME 015T6254 1 1 24 CLIP CABLE Q33T4832 1

10 TUNER BOARD SMT SMTHJPFA60A8P 1 25 CARD READER 033T4907 1

11 SHIELD-BKT 015T6269 2 1 26 AUDIO BOARD N/A

12 MAIN BOARD CBPFAF5BMTATP 1 27 COVER HINGE 034T1656 1

13 POWER BOARD ADPC24100B1P 1 28 REAR COVER 034T1652 1

14 SHIELD MAIN 085T6134 1 1 29 PC PLATE ON TOP 033T6301 1

15 COVER CABLE 034T1655 1

Acer AT2010 Service Guide
