EN-12

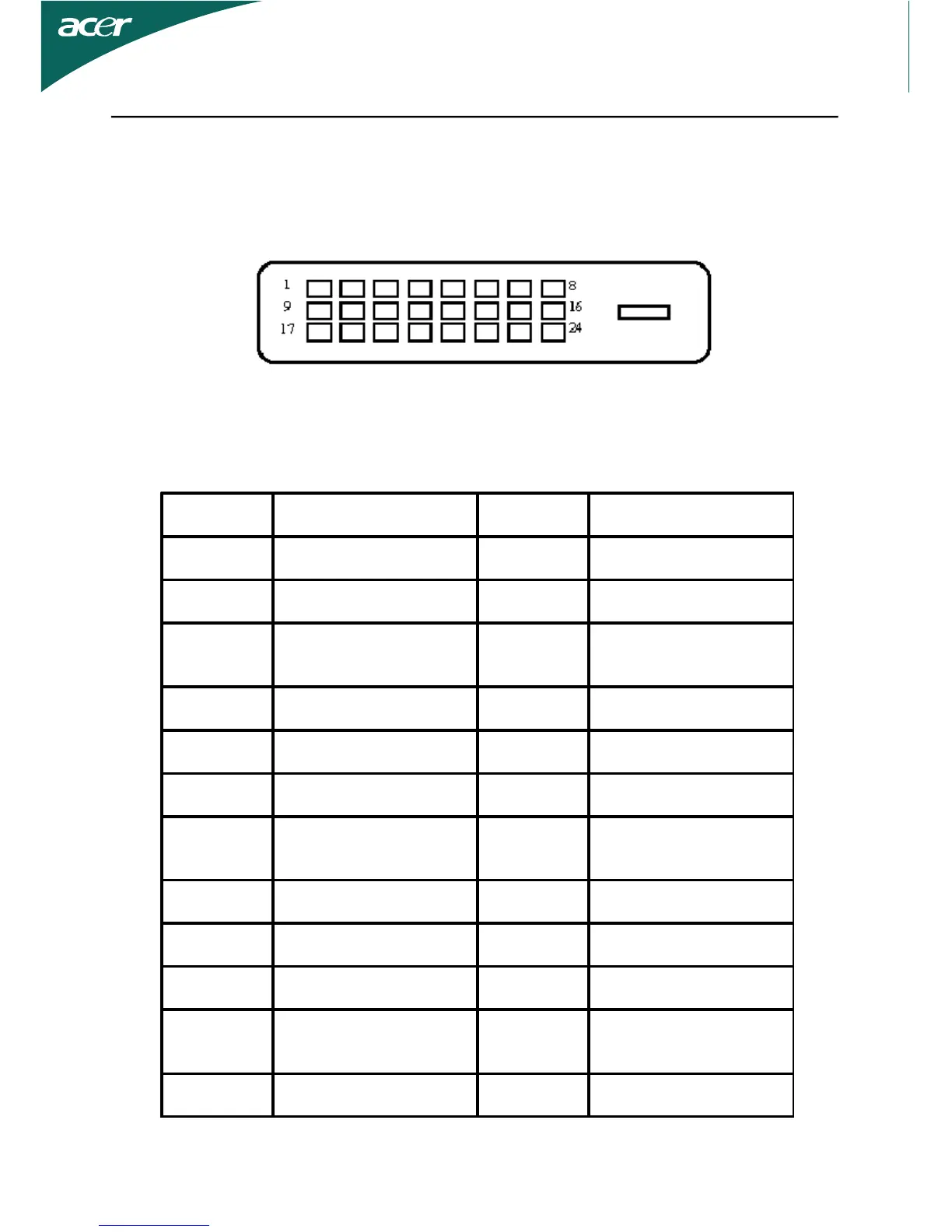

24-Pin Color Display Signal Cable
PIN Meaning PIN Meaning
1. TMDS Data2- 13. NC
2. TMDS Data2+ 14. +5V Power
3.
TMDS Data 2/4
Shield
15.
GND(return for
+5V hsync.vsync)
4. NC 16. Hot Plug Detect
5. NC 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19.
TMDS Data 0/5
Shield
8. NC 20. NC
9. TMDS Data1- 21. NC
10. TMDS Data1+ 22. TMDS Clock Shield
11.
TMDS Data 1/3
Shield
23. TMDS Clock+
12. NC 24. DDC TMDS Clock-
