ACER B246HL
13

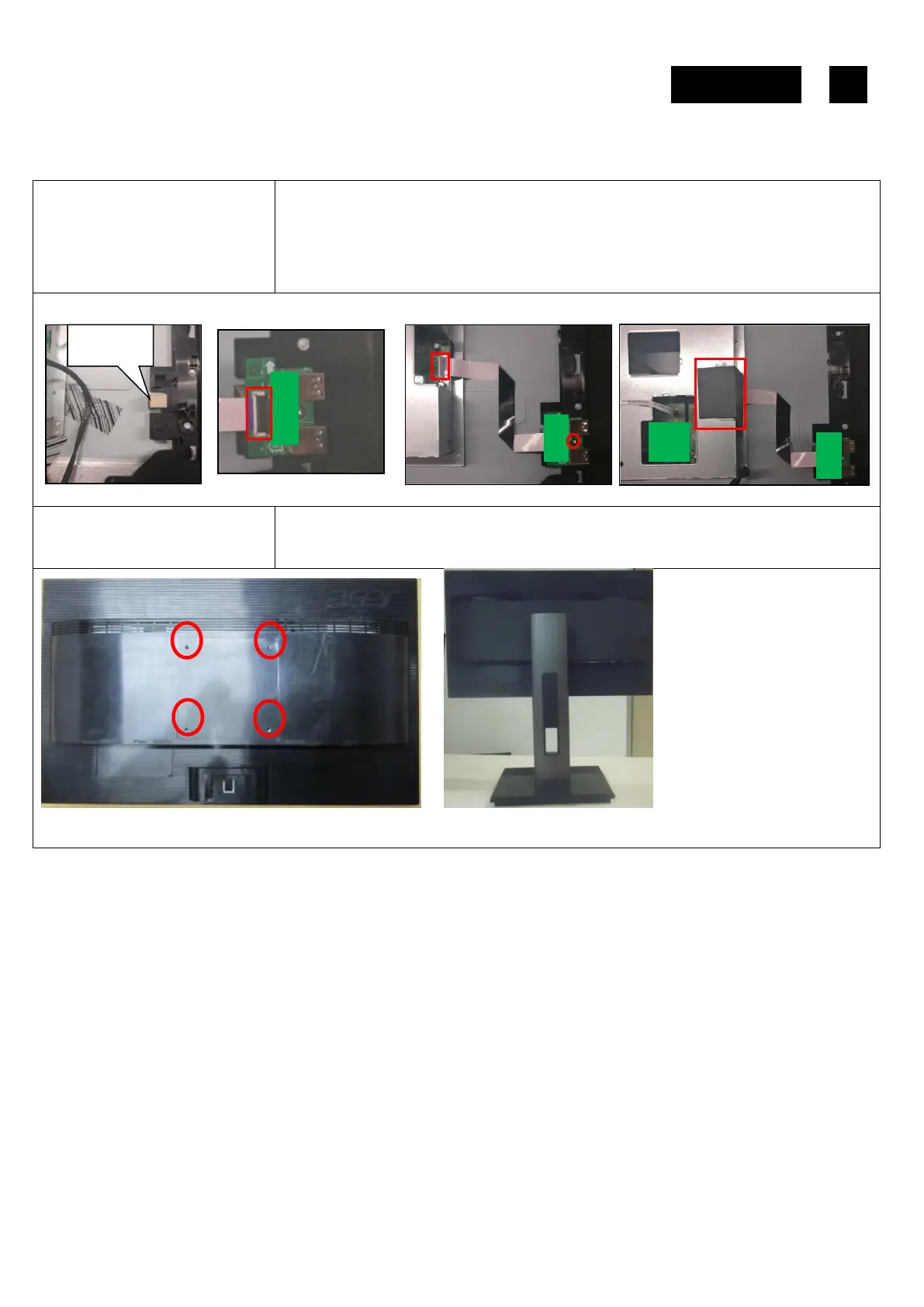

S6
Assemble the USB SIDE BD
on MF.
(This step is only for SKU with
USB)
Stick a gasket on the back of panel as picture 1. Assemble USB-FFC to the USB SIDE
BD as picture 2.
Assemble the USB-BD on the MF. Lock one screw to the USB SIDE BD. Tear off the
gum of the USB-FFC, insert the USB-FFC into the USB-BD and stick USB-FFC on the
panel as picture 3.
Affix a Mylar on the right hole of the SHD as picture 4.
PICTURE 1 PICTURE 2 PICTURE 3 PICTURE 4
S7
Assemble RC, stand and
base
Assemble the RC with screw.
Assembly the Stand and the Base to Monitor
GASKET
USB SIDE BD
USB SIDE
BD
I/F BD
USB SIDE
BD
