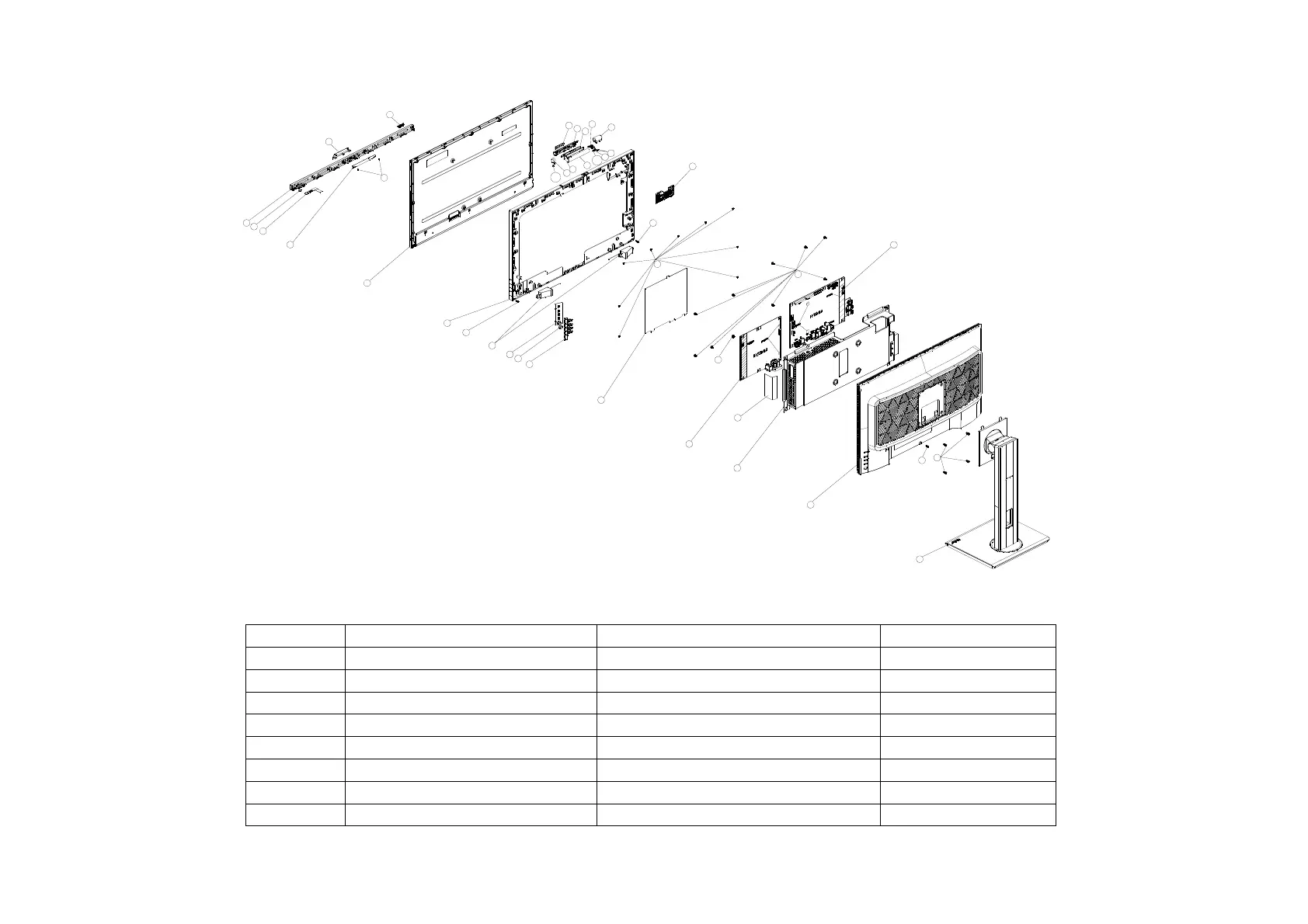

1. Exploded view diagram with list of items
3
1
2
4
5
6
7
8
S2
9
10
11
12
13
14
17
18
19
S7
S6
15
S4
S3
S5
S2
16
S11
27
26
25
S10
S9
S8
24
23
22
21
20
S1
28
Item Description TPV Part No. ACER Part No.
5 LED BOARD LEPCLQA3 N/A
6 LCD M238HCA-L3E C1 NB INX 750GBN238H3E12N000 N/A
7 OPTION BOARD PTPCPQB8 N/A
10 KEY BOARD KEPCPQB8 N/A
14 ADAPTER BOARD PLPCKE201IACC N/A
15 MAIN BOARD CBPRPTOC0Q1 N/A
16 IR BOARD IRPCQ5 N/A
395G179Q30P1530000 CABLE 30P 400MM (MB TO PANEL) 50.TPEM2.004
