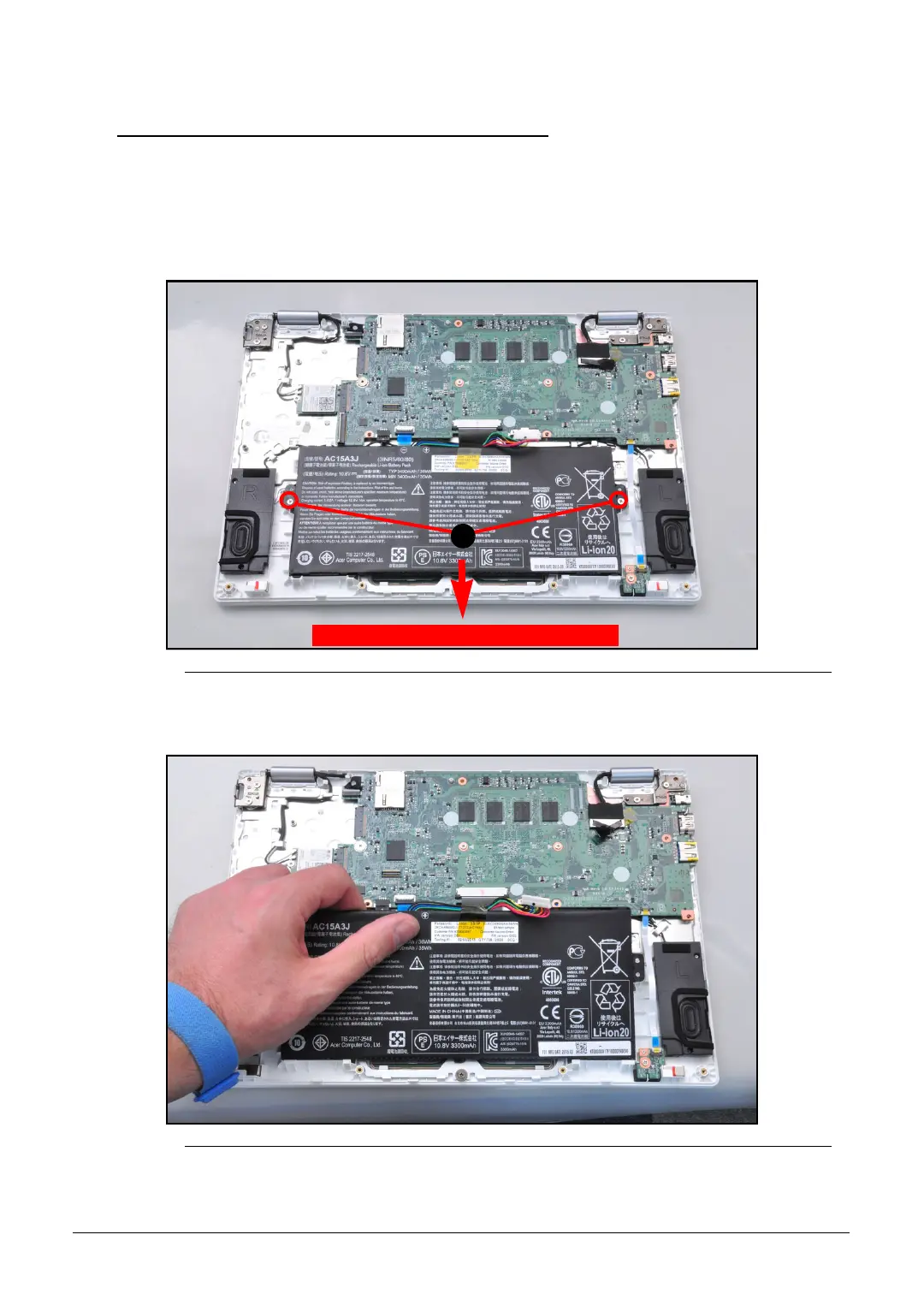

1-10 Disassembly Procedures
Battery Pack Removal 0
Prerequisite:
Base Cover Removal
1. Remove two (2) screws (A) securing the battery pack in place (Figure 1-10).
Figure 1-10. Battery Screw Location
2. Lift up the top edge of the battery pack to remove it from the system (Figure 1-11).
Figure 1-11. Battery Pack Removal
A
WEEE Annex VII component: Battery
A
B
