Acer Chromebook R753T User Manual

Disassembly Procedures 1-17

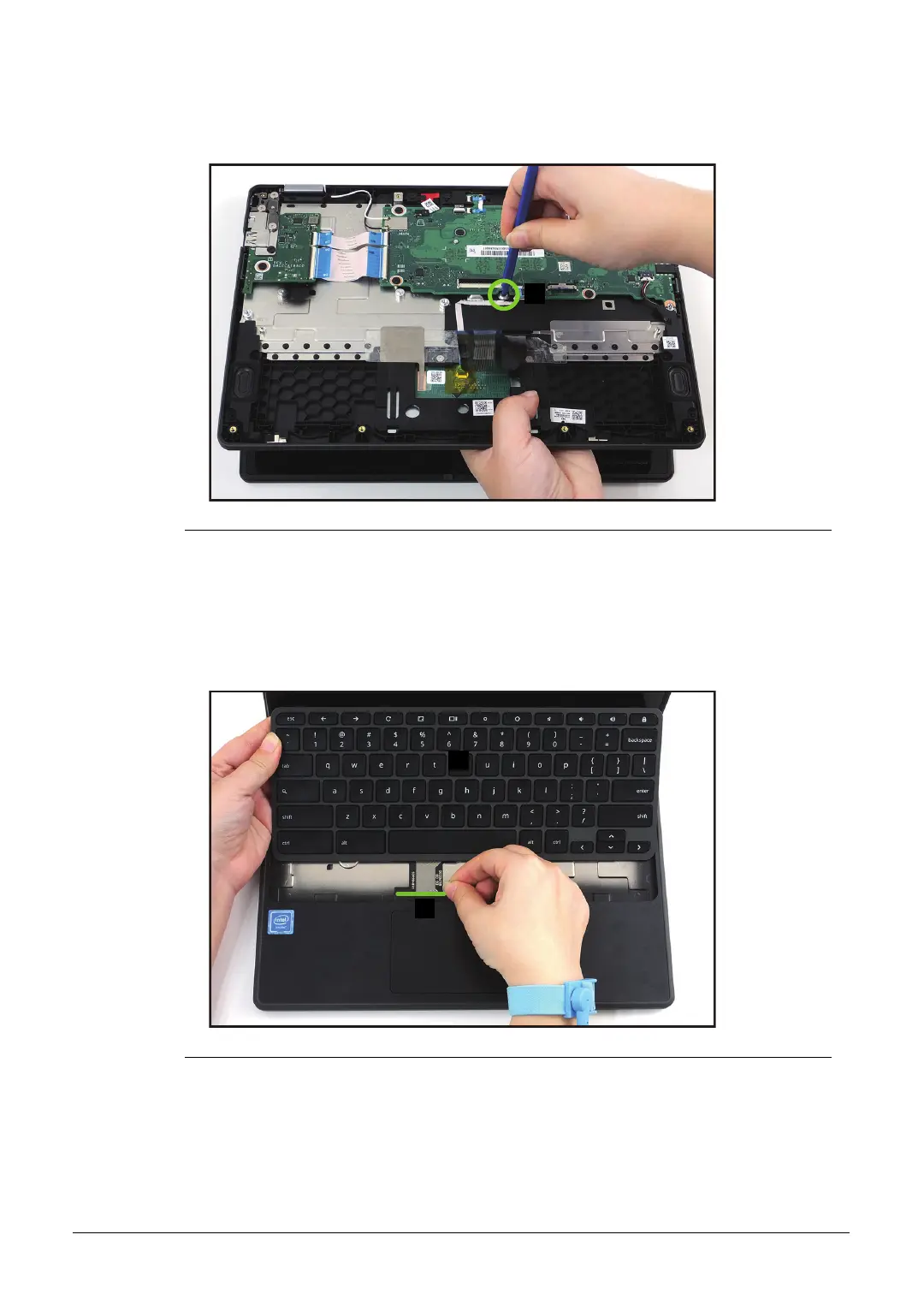

4. Using a pointed tool, push the screw hole (C) firmly to release the keyboard from the
top assembly (Figure 1-21).
Figure 1-21. Keyboard Removal
5. Carefully lift the bottom of the keyboard to release it from the top assembly. DO
NOT remove yet!
6. Unroute the keyboard FPC from the opening (D) on the keyboard compartment.
Then remove the keyboard (E) (Figure 1-22).
Figure 1-22. Keyboard Removal
C
E
D

Acer Chromebook R753T Specifications

General

Category	Laptop
Operating System	Chrome OS
RAM	4GB
Battery Life	Up to 12 hours
Color	Black
Display Resolution	1366 x 768 pixels
Wireless	802.11ac
Webcam	HD Webcam
