1-8 Disassembly Procedures
Battery Pack Removal 0
Prerequisite:
Base Cover Removal
1. Find the battery pack (A) on the top assembly (Figure 1-6).
2. Detach the adhesive tape from the battery pack and keyboard FPC connector
(Figure 1-6).

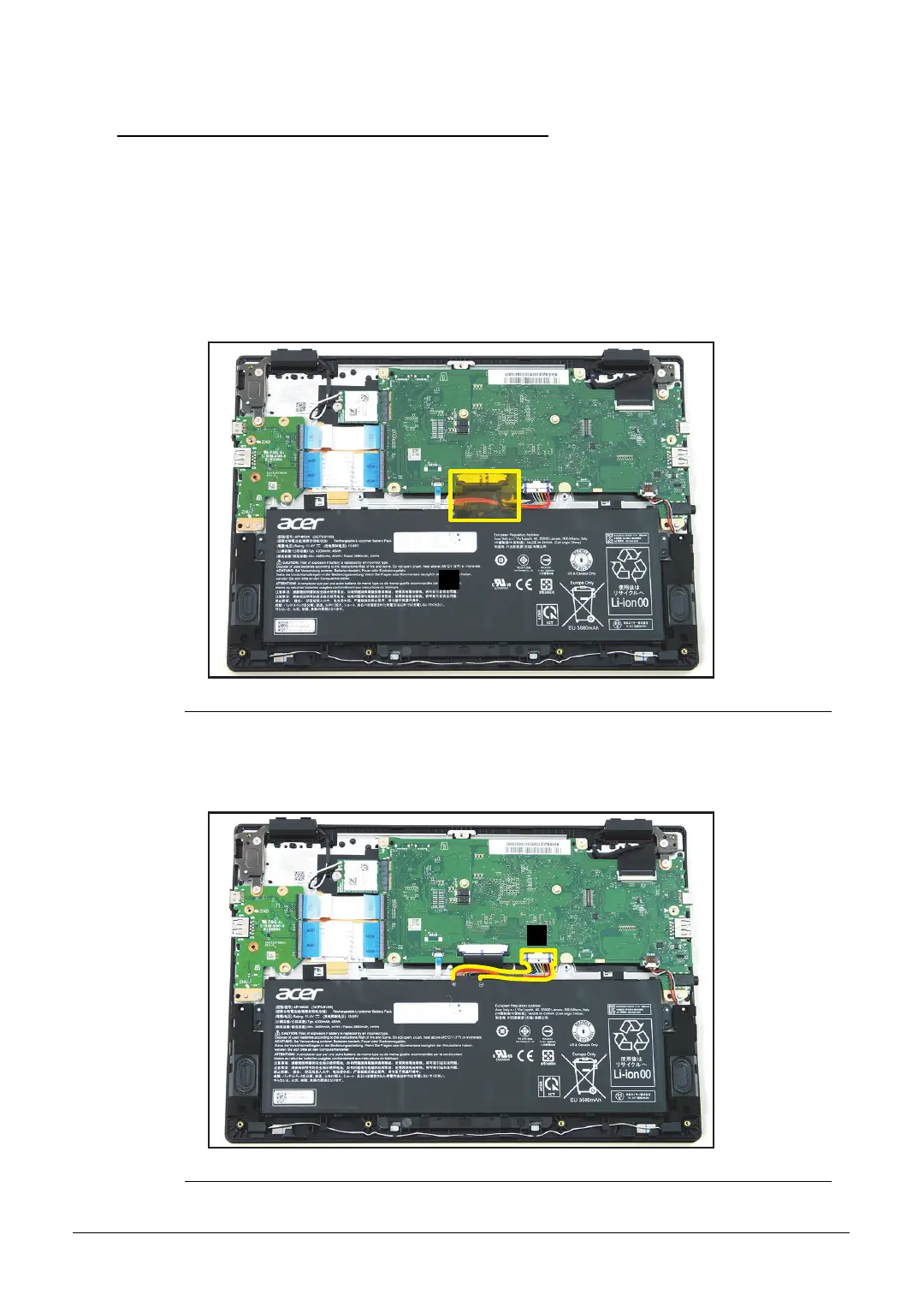

Figure 1-6. Battery Pack Removal
3. Disconnect the battery cable from the mainboard connector (B) (Figure 1-7).
Figure 1-7. Battery Pack Removal
