Disassembly Procedures 1-11
6. Place your thumbs on the left and right side hinges while holding the top assembly
with your two hands. Slightly rotate the top assembly upwards and release
(Figure 1-10).

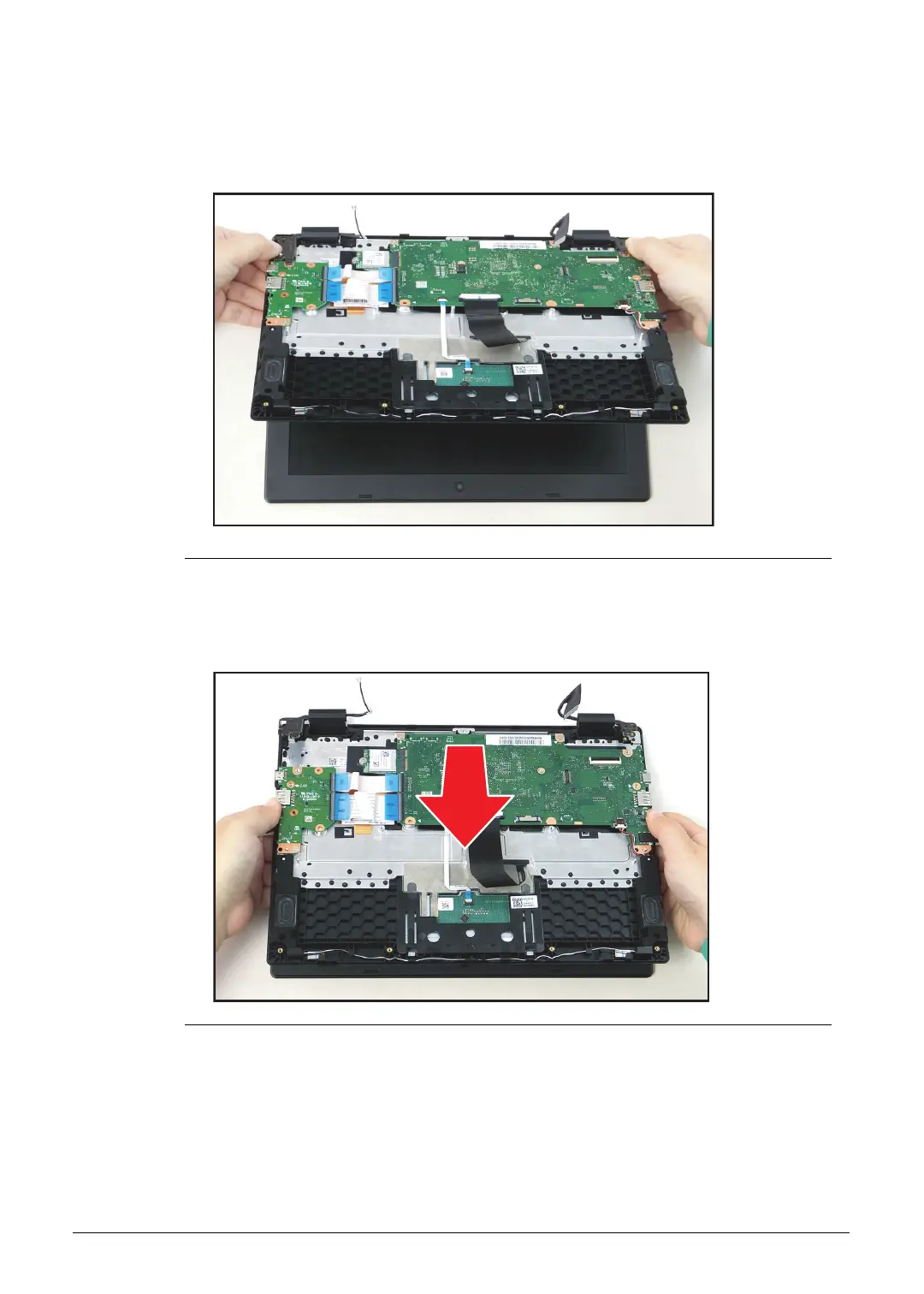

Figure 1-10. LCD Module Removal
7. Slide and then remove the top assembly from the LCD module (Figure 1-11).
Figure 1-11. LCD Module Removal
