Acer Chromebook Spin R721T User Manual

1-12 Disassembly Procedures
LCD Module Removal (ZHUB Only) 0
Prerequisite:
Battery Pack Removal
1. Disconnect the WLAN antennas cables from the WLAN module connectors (A)
(Figure 3-12).
2. Unthread the WLAN antennas cables from the routing channel (Figure 3-12).
3. Release the latch and disconnect the eDP cable from the mainboard connector (B)
(Figure 3-12).
4. Unthread the eDP cable from the routing channel (Figure 3-12).
5. Detach the adhesive tape and disconnect the G-sensor cable from the mainboard
connector (C) (Figure 3-12).
6. Unthread the G-sensor cable from the routing channel (Figure 3-12).
7. Remove four (4) screws securing the LCD module in place (Figure 3-12).

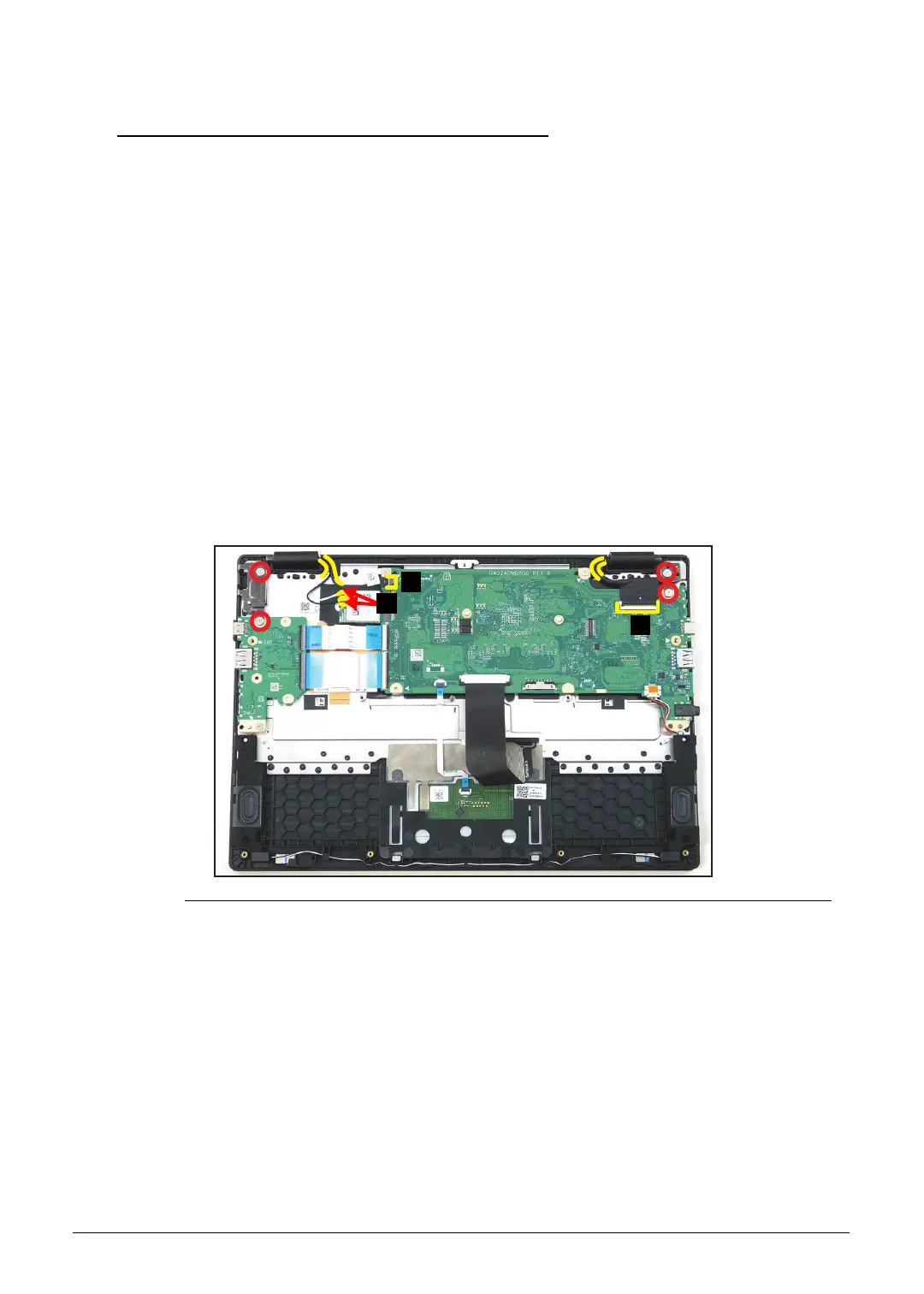

Figure 3-12. LCD Module Removal
B
A
C

Acer Chromebook Spin R721T Specifications

General

Operating System	Chrome OS
Battery Life	Up to 10 hours
Wireless	802.11ac Wi-Fi
Bluetooth	Bluetooth 4.2
Ports	microSD card reader, headphone/microphone combo jack
Battery	3-cell Li-ion
