Acer Chromebook Spin R721T - Page 29

Disassembly Procedures 1-27

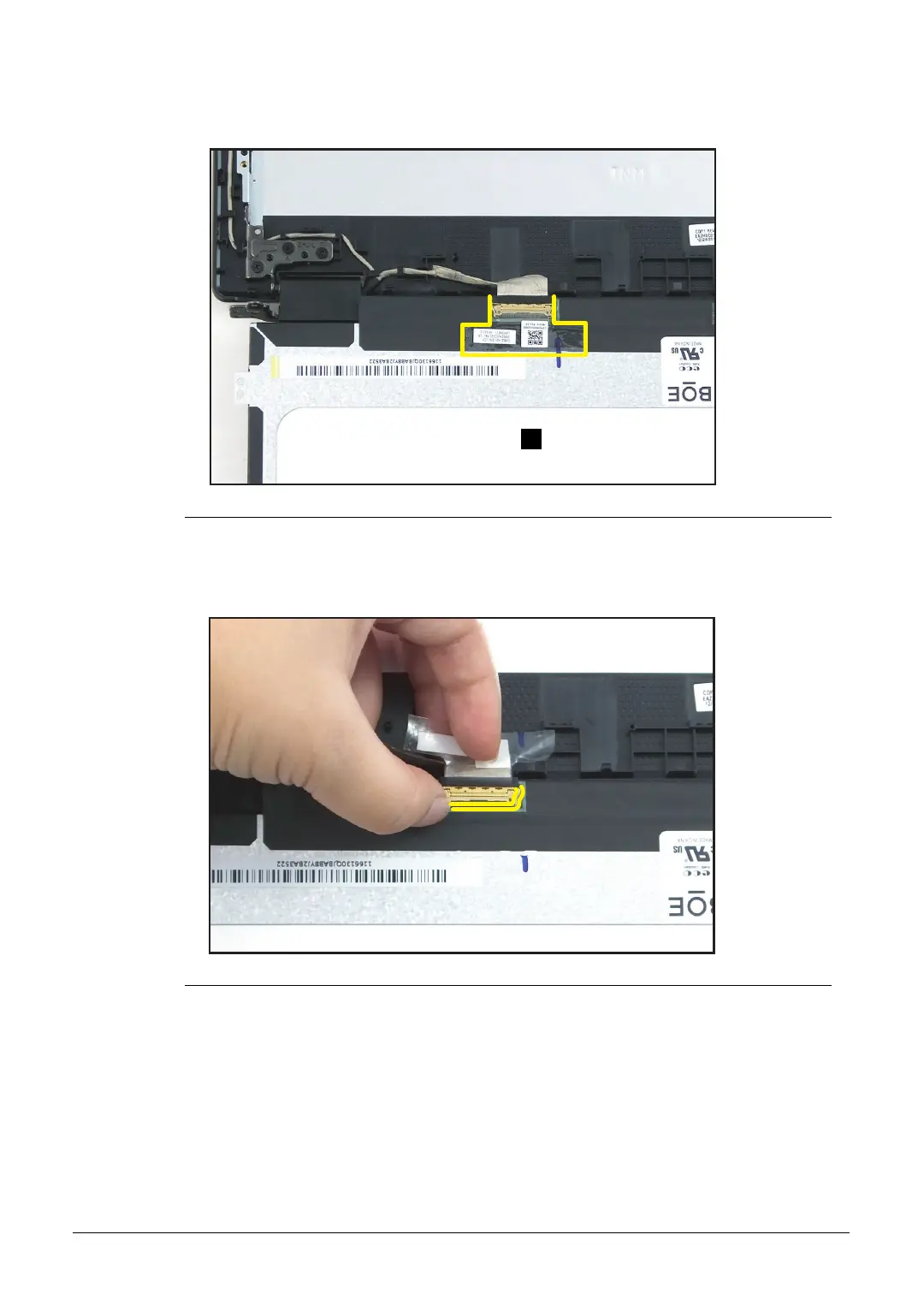

4. Detach the mylar tape securing the eDP cable to the LCD panel (A) (Figure 1-37).
Figure 1-37. LCD Panel Removal
5. Disengage the clip on the eDP cable connector (Figure 1-38).
Figure 1-38. LCD Panel Removal
A
