LCD Panel Removal (ZHUB Only) 0
Prerequisite:
LCD Module Removal (ZHUB Only)
1. Find the LCD panel (A) in the LCD cover (Figure 1-40).
2. Rotate the LCD hinges slightly downwards for easy access (Figure 1-40).

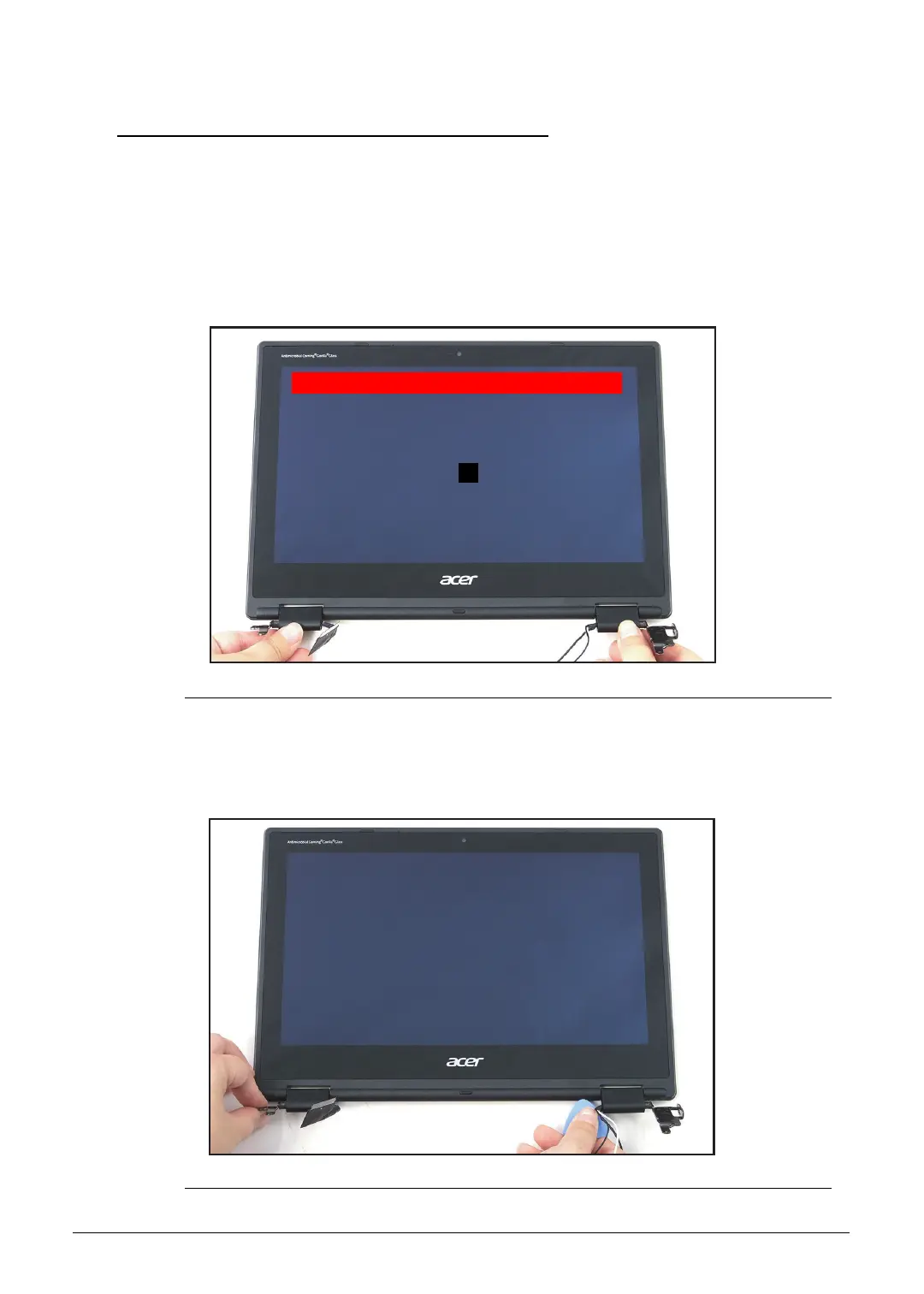

Figure 1-40. LCD Panel Removal
3. Using a flat-headed tool, carefully pry open the LCD panel starting from the bottom
right corner of the LCD assembly (Figure 1-41).
Figure 1-41. LCD Panel Removal
A
WEEE Annex VII Component: LCD Panel
