52
English

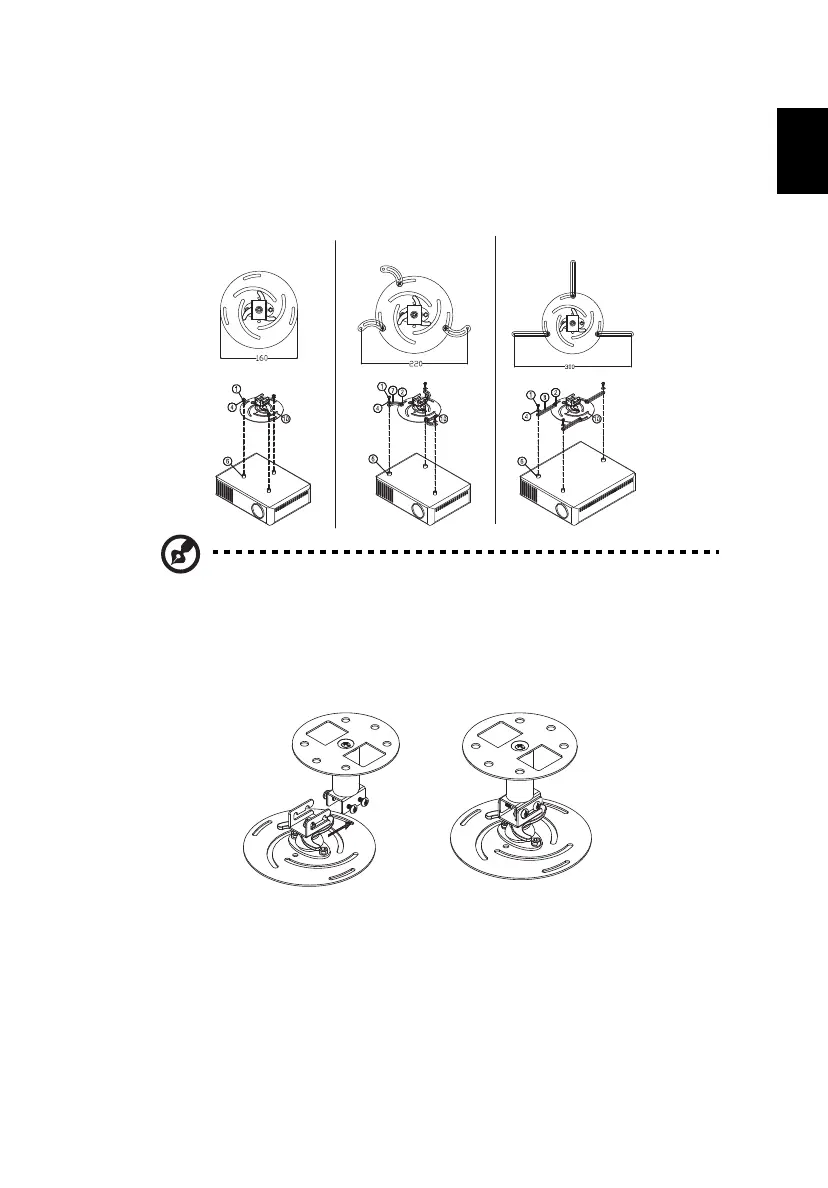

3 Type 1:
For the standard size use three bracket screws to mount the projector to
the ceiling mount bracket.
Type 2 and Type 3:
Alternatively, for the larger size, use the sliding extensions for more
supports.
Note: It is recommended that you keep a reasonable space
between the bracket and the projector to allow for proper heat
distribution.
4 Connect the main body connector to the projector bracket (illustration 1),
and then screw up four screws (illustration 2).
Type 1:
Type 2: Type 3:
Illustration 1
Illustration 2
