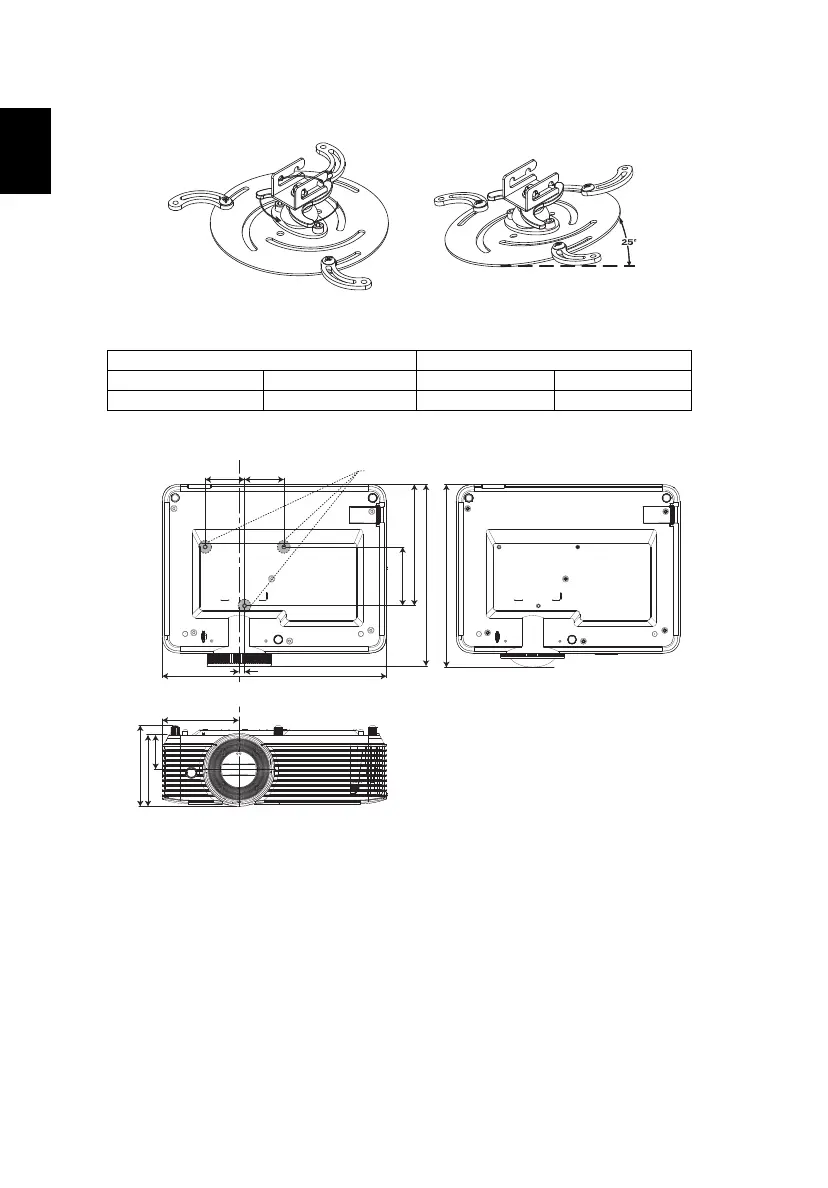

5 Adjust the angle and positioning as necessary.
Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
425VV
360°
55.00mm 55.00mm
313.50mm
8.00mm
107.00mm
113.68mm
100.18mm
48.19mm
254.10mm
169.80mm
82.30mm
255.25mm
SCREW SPEC. M4 x 25 mm
