Acer DYNAMIC 2140GH - Inverter Type

HEAVY DUTY / HIGH SPEED PRICISION LATHE
14. Thread Cutting
Engagement Lever
15. Threading Indicator
Dial
16. Carriage Lock
17. Lead Screw
18. Feed Rod
19. Spindle Control Lever
20. Quill Lock
21. Coolant Pipe
22. Jogging Switches

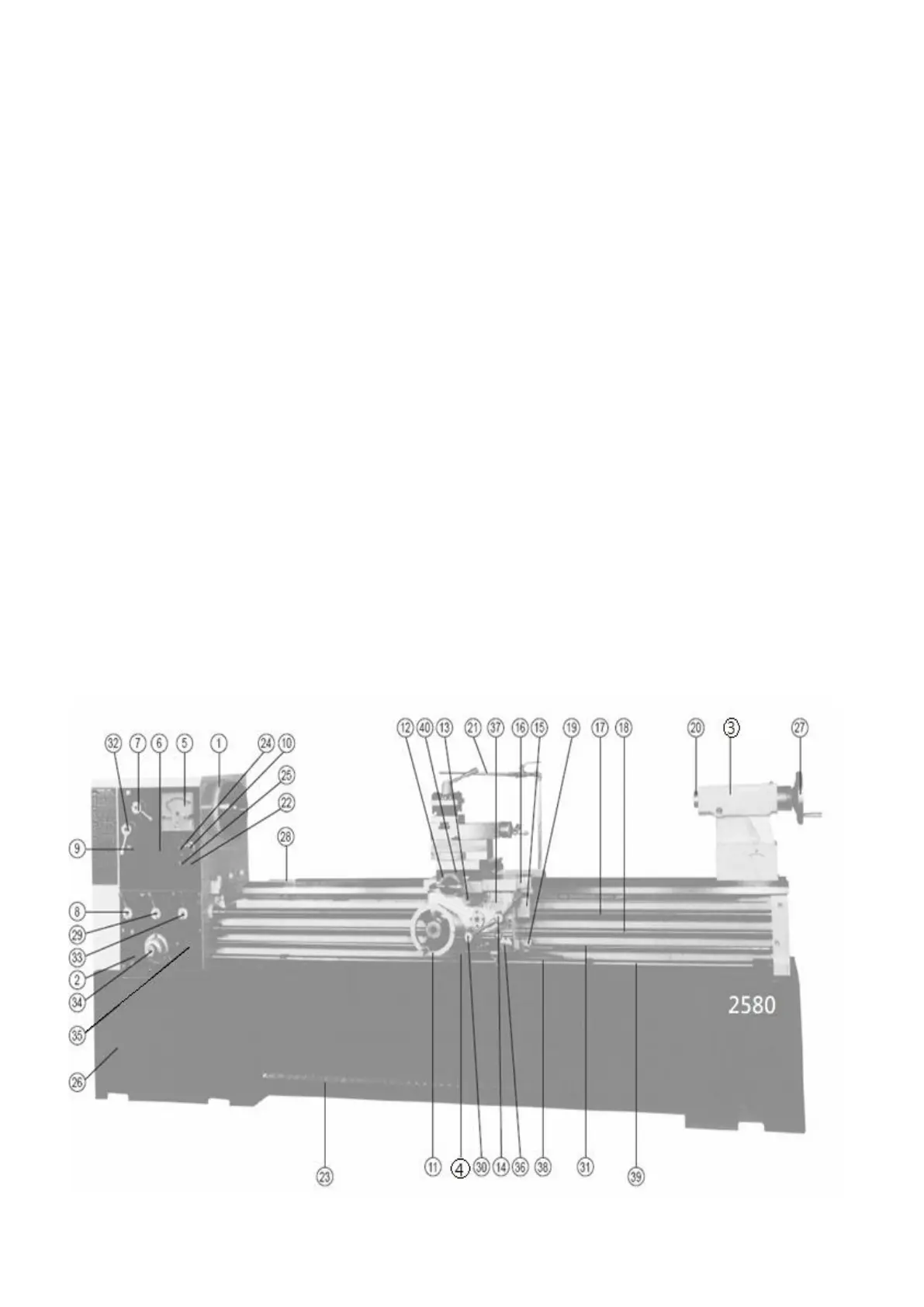

1. Headstock
2. Feed Gear Box
3. Tailstock
4. Apron
5. Spindle Speed
6. Hi, Middle & Low Speed
Selector
7. Feed Direction Selector
8. Feed Selector
9. Oil Level Sight Window
10. EMG. Stop Switches
11. Longitudinal Transverse23. Brake Pedal
Hand wheel
24. Power Switches
29. Feed Selector
30. Auto Feed Clutch Lever
31. Starting Rod
32. Feed Selector
33. Feed Selector
34. Feed Selector
35. Engage Lever
36. Hand Oiler
37. Pressure Adjusting
Screw
38. Longitudinal Kick-out
Device
39. Stopping Rod
12. Cross Feed Handle
25. Coolant Pump Switches
40. Carriage Lock Cap
13. Longitudinal Cross Feed
26. Foundation Bolts
Screw
Selector
27. Quill Transverse
41. Manual Speed Selecting
Hand wheel
Switches
28. Gap
42. Speed Regulator
25
INVERTER TYPE
