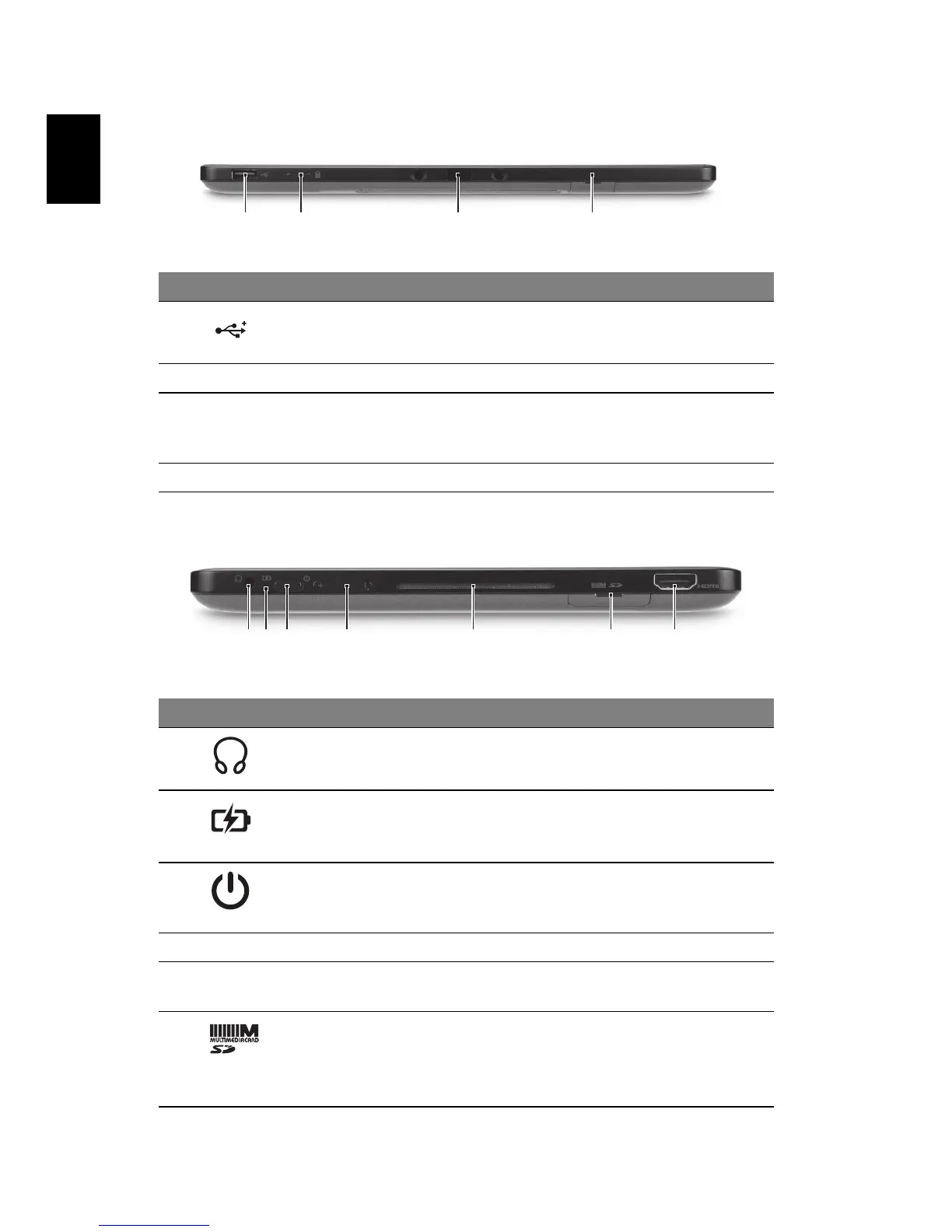

Acer ICONIA - Bottom View; Left View

Your Acer tablet PC tour 4
English
Bottom view
Left view
No. Icon Item Description
1 USB 2.0 port Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2 Lock switch Locks the screen orientation.
3 Dock connector Connects to the supplied keyboard /
docking station. USB port may also be
used as a standard USB port.
4 SIM card slot Accepts a 3G SIM card.
No. Icon Item Description
1 Headphone jack Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2 Battery LED Indicates the computer's battery status.
1. Charging: Amber.
2. Fully charged: Blue when plugged in.
3 Power button Press to turn the tablet on; press again to
place the tablet in Sleep mode. Press and
hold to turn the tablet off.
4 Volume key Press to increase or decrease volume.
5 Ventilation slot Provides adequate air flow to maintain a
safe operating temperature.
6 2-in-1 card reader Accepts Secure Digital (SD),
MultiMediaCard (MMC).
Note: Push to remove/install the card.
Only one card can operate at any time.
