Acer LCD monitor Manual

8

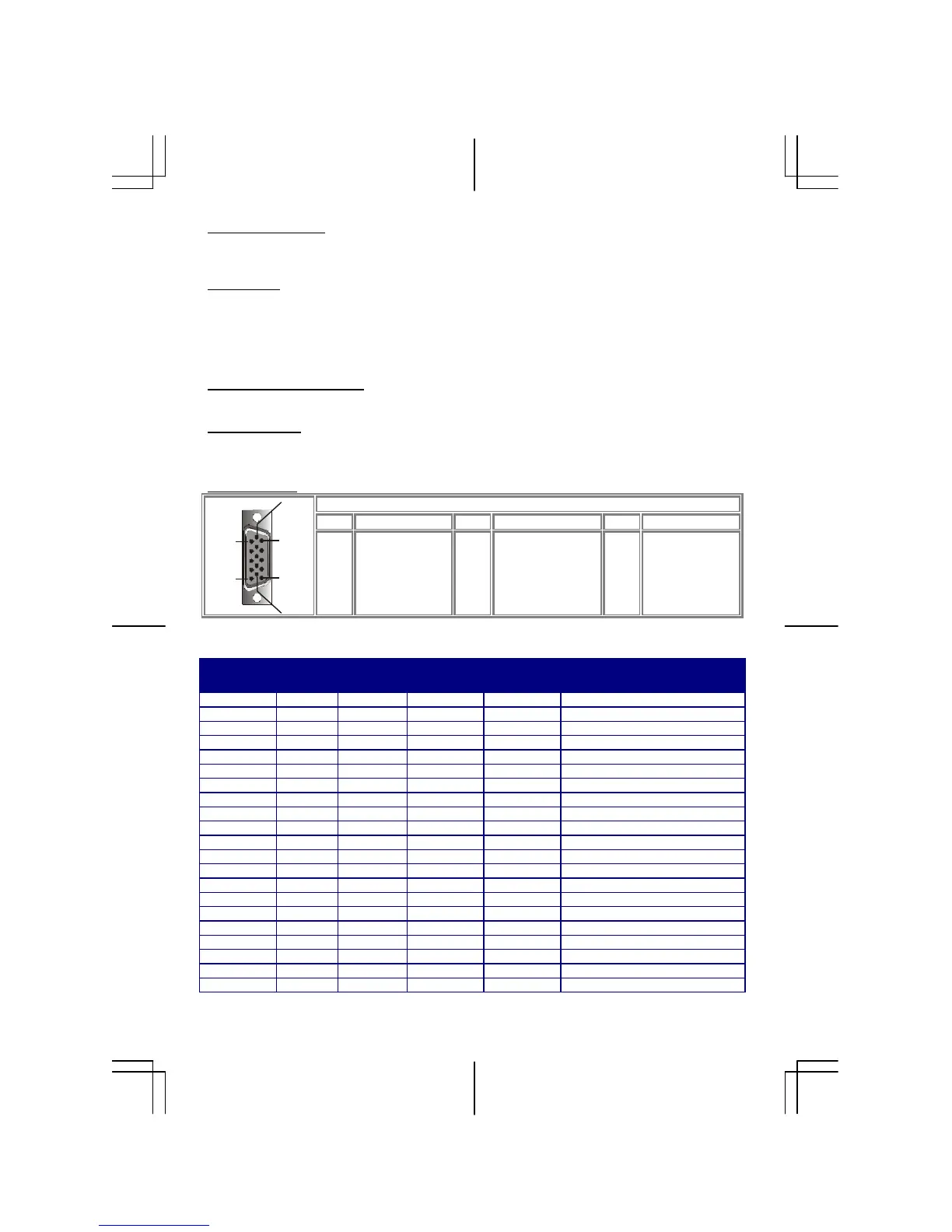

External Connection
Power Input (DC input) +12 VDC / 5A min. input through AC/DC adapter
Video Cable 1.5M with 15-pin D-sub connector
Audio Cable 1.5M with Stereo Jack
Environment
Operating Condition:
Temperature
Relative Humidity
5°C to 40°C/41°F to 104°F
20% to 80% (non-condensing)
Storage Condition:
Temperature
Relative Humidity
-20°C to 60° C/-4°F to140° F
5% to 85% (non-condensing)
Power Supply (AC Adapter)
Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz
Input Current 1.5 A maximum
Size and Weight
Dimensions 424 (W) x 436 (H) x 178 (D) mm
Net Weight 6.5 ± 0.3 kg
Gross Weight 8.7 ± 0.3 kg
Pin Assignment
Signal
PIN Description PIN Description PIN Description
1
5
6
10
11
15
1
2
3
4
5
Red
Green
Blue
NC
Digital GND
6
7
8
9
10
Red Rtn
Green Rtn
Blue Rtn
+5V
Digital GND
11
12
13
14
15
NC
SDA
H. Sync.
V. Sync.
SCL
Standard Timing Table
If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing.
Resolution H. Freq.
(KHz)
V. Freq.
(Hz)
Pixel Freq.
(MHz)
H/V Sync.
Polarity
Mode
640 x 350 31.469 70.087 25.175 +/- VGA-350
640 x 400 24.83 56.42 21.05 -/- NEC PC 9801
640 x 400 31.469 70.087 25.175 -/+ VGA-400-GRAPH
640 x 400 31.5 70.15 25.197 -/- NEC PC9821
640 x 480 31.469 59.940 25.175 -/- VGA 480
640 x 480 35.000 66.670 30.240 -/- APPLE MAC – 480
640 x 480 37.861 72.809 31.500 -/- VESA – 480 – 72Hz
640 x 480 37.500 75.000 31.500 -/- VESA – 480 – 75Hz
720 x 400 31.469 70.087 28.322 -/+ VESA-400-TEXT
832 x 624 49.725 74.550 57.283 -/- APPLE-MAC-800
800 x 600 35.156 56.250 36.000 +/+ SVGA
800 x 600 37.879 60.317 40.000 +/+ VESA-600-60 Hz
800 x 600 48.077 72.188 50.000 +/+ VESA-600-72 Hz
800 x 600 46.875 75.000 49.500 +/+ VESA-600-75 Hz
1024 x 768 48.363 60.004 65.000 -/- XGA
1024 x 768 53.964 66.132 71.664 +/+ COMPAQ-XGA
1024 x 768 56.476 70.069 75.000 -/- VESA-600-70 Hz
1024 x 768 60.023 75.029 78.750 +/+ VESA-768-75 Hz
1024 x 768 60.04 75.02 80.00 -/- APPLE MAC-768
1280 x 1024 63.981 60.020 108 +/+ SXGA
1280 x 1024 79.976 75.025 135 +/+ SXGA
