Acer TMP214-52 - DIMM Modules Removal

1-12 Disassembly Procedures
DIMM Modules Removal 0
Prerequisite:
Battery Pack Removal
1. Find the DIMM module (A) in the system (Figure 1-15).
2. Push the DIMM module clips (B) outwards (Figure 1-15).

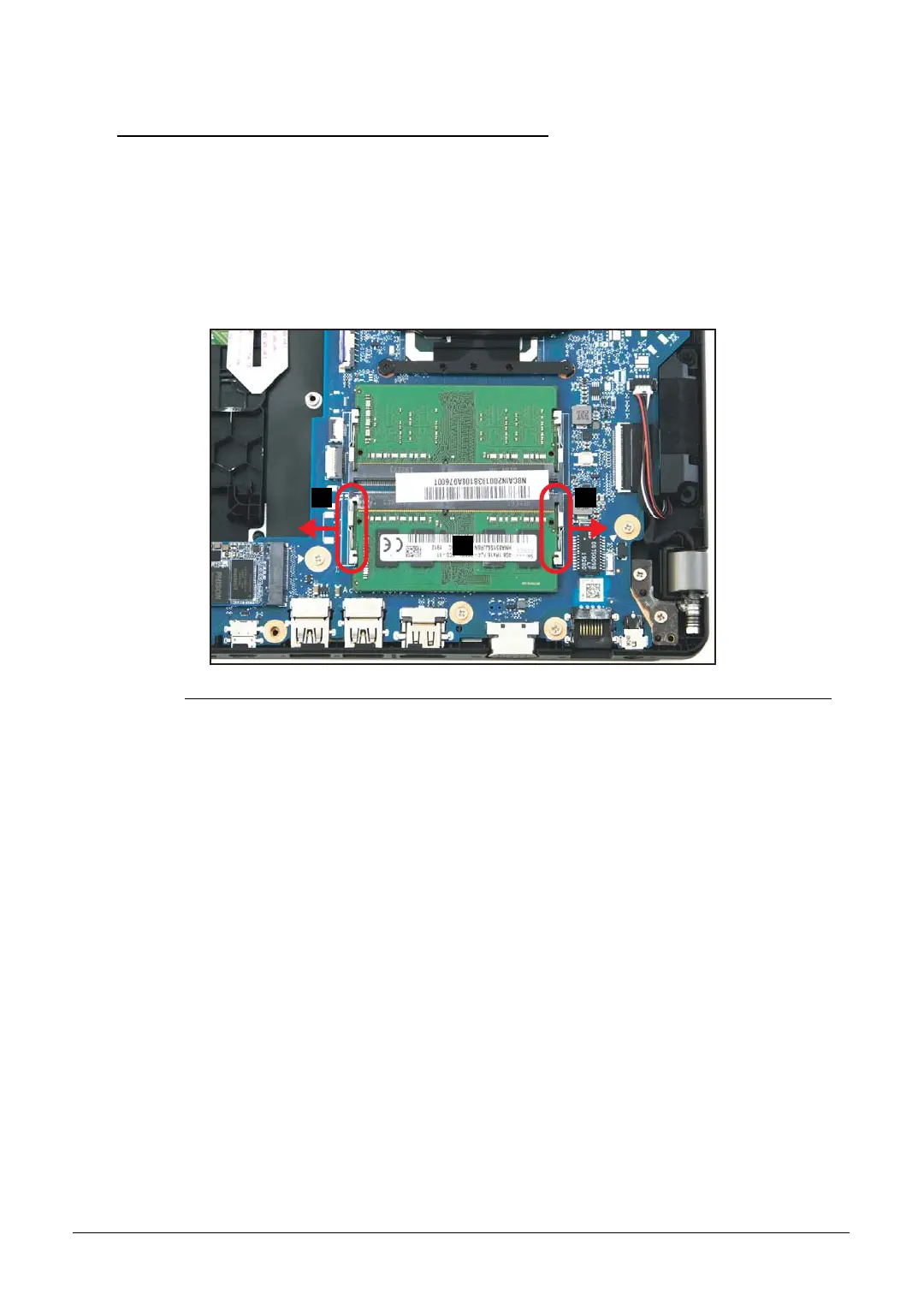

Figure 1-15. DIMM Module Removal
B B
A
