Acer TMP214-52 - Page 40

1-38 Disassembly Procedures

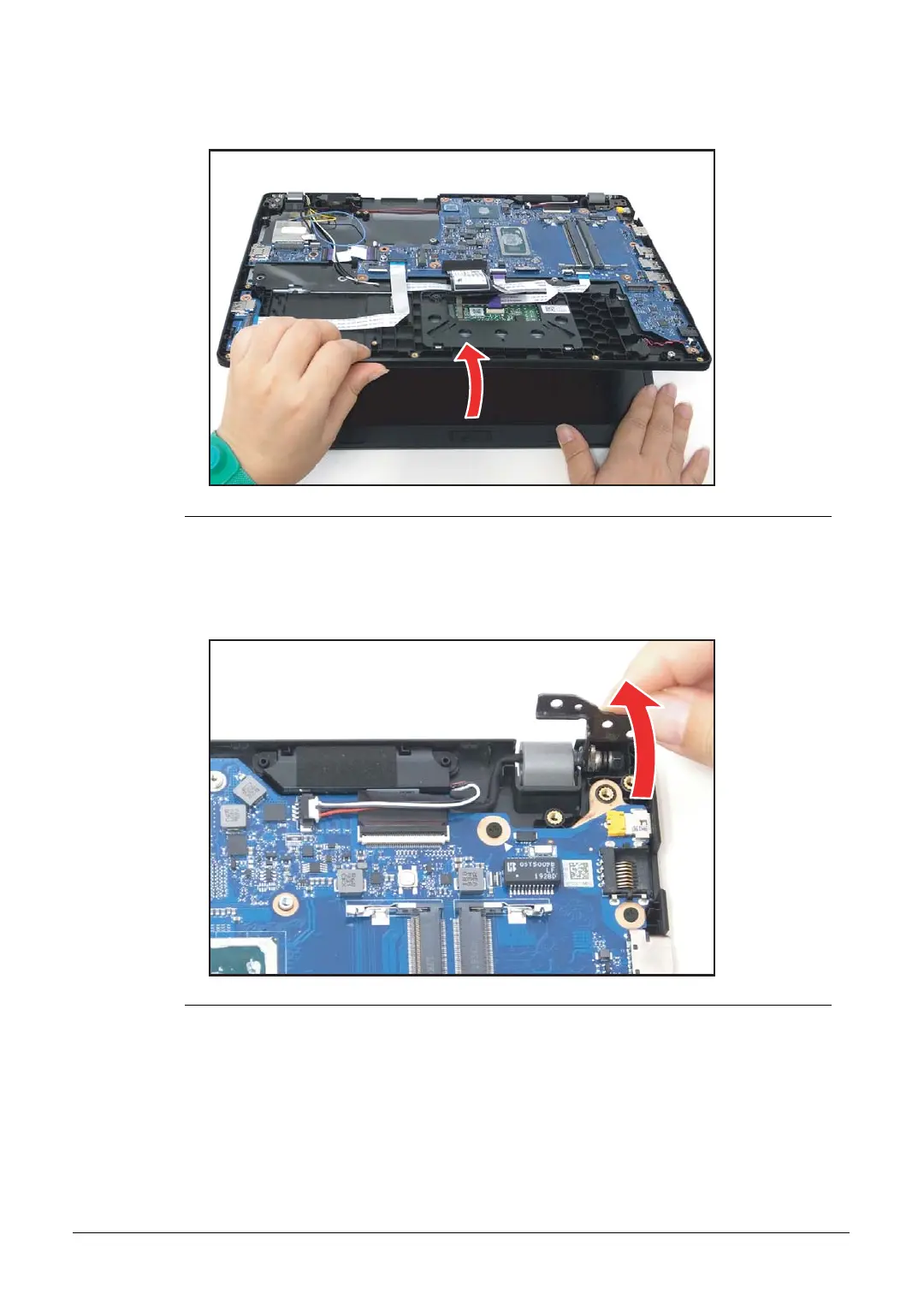

2. Lift the top assembly until it is fully open (Figure 1-52).
Figure 1-52. Mainboard Removal
3. Close the top assembly and lift the right side of LCD hinge until it is fully extended
(Figure 1-53).
Figure 1-53. Mainboard Removal
