1-40 Disassembly Procedures
11. Pry to detach the adhesive tape underneath the RTC battery. Then remove the RTC
battery (I) (Figure 1-55).
12. Disconnect the eDP cable from the mainboard connector (J) (Figure 1-55).
13. Disconnect the speakers cable from the mainboard connector (K) (Figure 1-55).
14. Remove seven (7) screws (L) securing the mainboard in place (Figure 1-55).

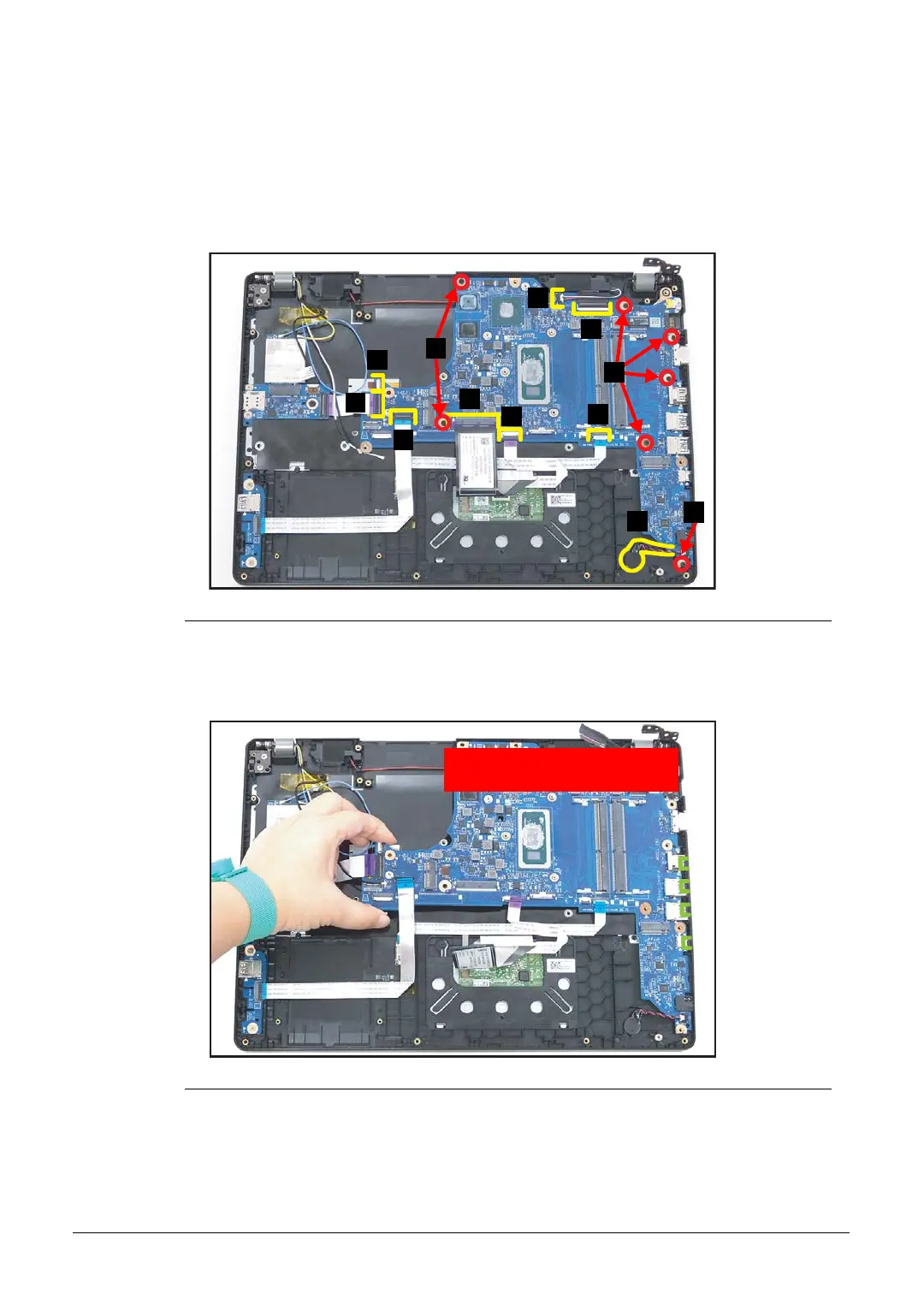

Figure 1-55. Mainboard Removal
15. Release the mainboard from the top assembly and then remove (Figure 1-56).
Figure 1-56. Mainboard Removal
H
K
C
E
D
F
G
L
L
J
II
L
WEEE Annex VII Component:
Mainboard
