Acer TravelMate 210 User Manual

Chapter 1 3

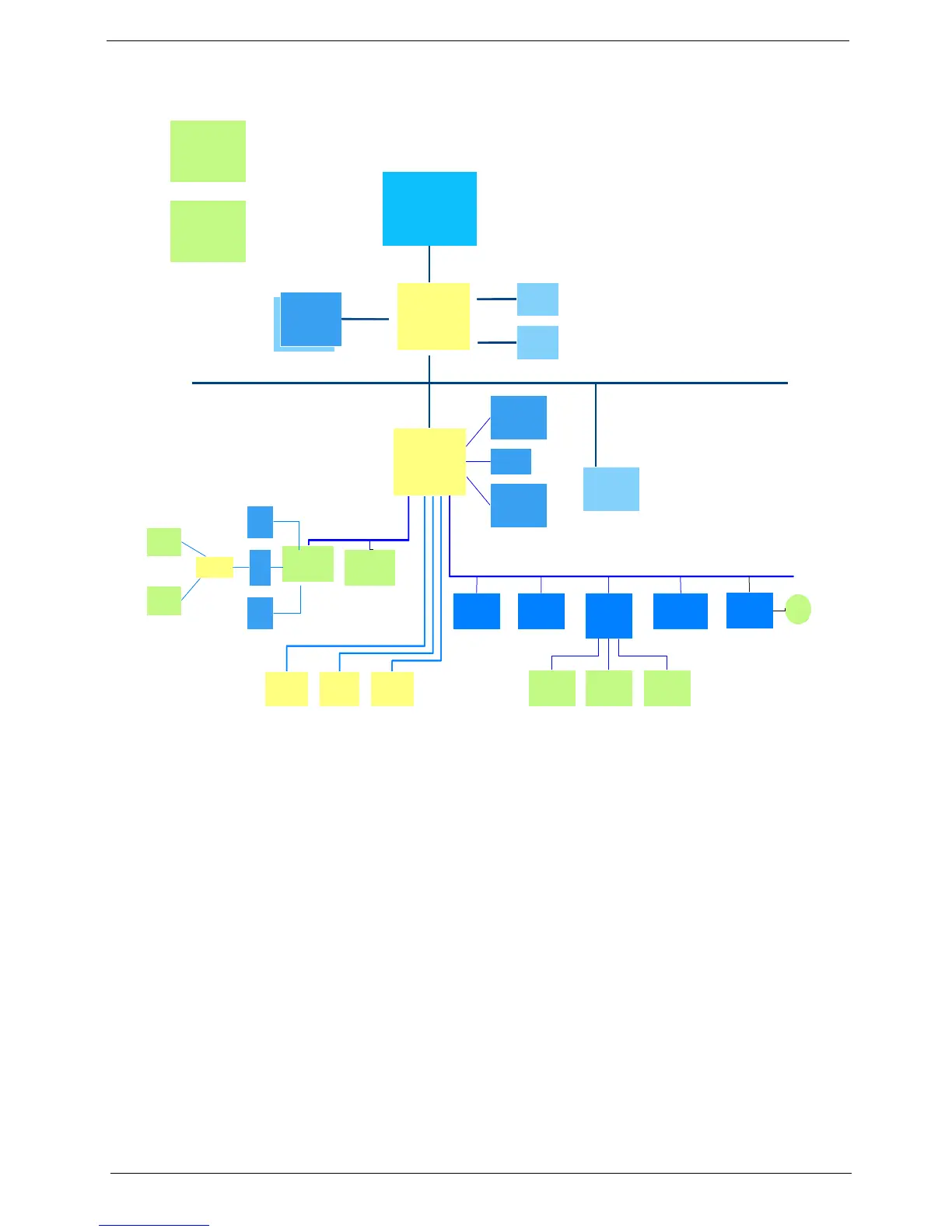

System Block Diagram
Mobile PIII
Celeron
N/ B
S/B
DI MM*2
MODEM
Daughter Card
AC ' 97 Codec
CS4299 or ALC200
Fl oppy Printer Serial
LI NE
IN
MI C
VR
OP AMP
TPA0202
INT.
SPKR
INT.
SPKR
DEBUG
BIOS ROM
MX29F004
KBC
M38867
Finger Print
RTC
BQ3285LF
CMOS
BAT
Primary EIDE
HDD
Secondary
EIDE
CDROM
USB*2
CARDBUS
OZ6912
TOUCH PAD INT. KB PS/2 CONN
PCI BUS
XD BUS
HOST BUS
MEM BUS
AC Link
CLK GEN.
ICS9248-157
SDRAM CLK
BUFFER
ICS-9112-17
CRT
LCD
Mobile PIII
Celeron
N/ B
S/B
DI MM*2
MODEM
Daughter Card
AC ' 97 Codec
CS4299 or ALC200
Fl oppy Printer Serial
LI NE
IN
MI C
VR
OP AMP
TPA0202
INT.
SPKR
INT.
SPKR
DEBUG
BIOS ROM
MX29F004
KBC
M38867
Finger Print
RTC
BQ3285LF
CMOS
BAT
Primary EIDE
HDD
Secondary
EIDE
CDROM
USB*2
CARDBUS
OZ6912
TOUCH PAD INT. KB PS/2 CONN
PCI BUS
XD BUS
HOST BUS
MEM BUS
AC Link
CLK GEN.
ICS9248-157
SDRAM CLK
BUFFER
ICS-9112-17
CRT
LCD
CRT
LCD
