Acer TravelMate 5730 Series User Manual

Chapter 3 89

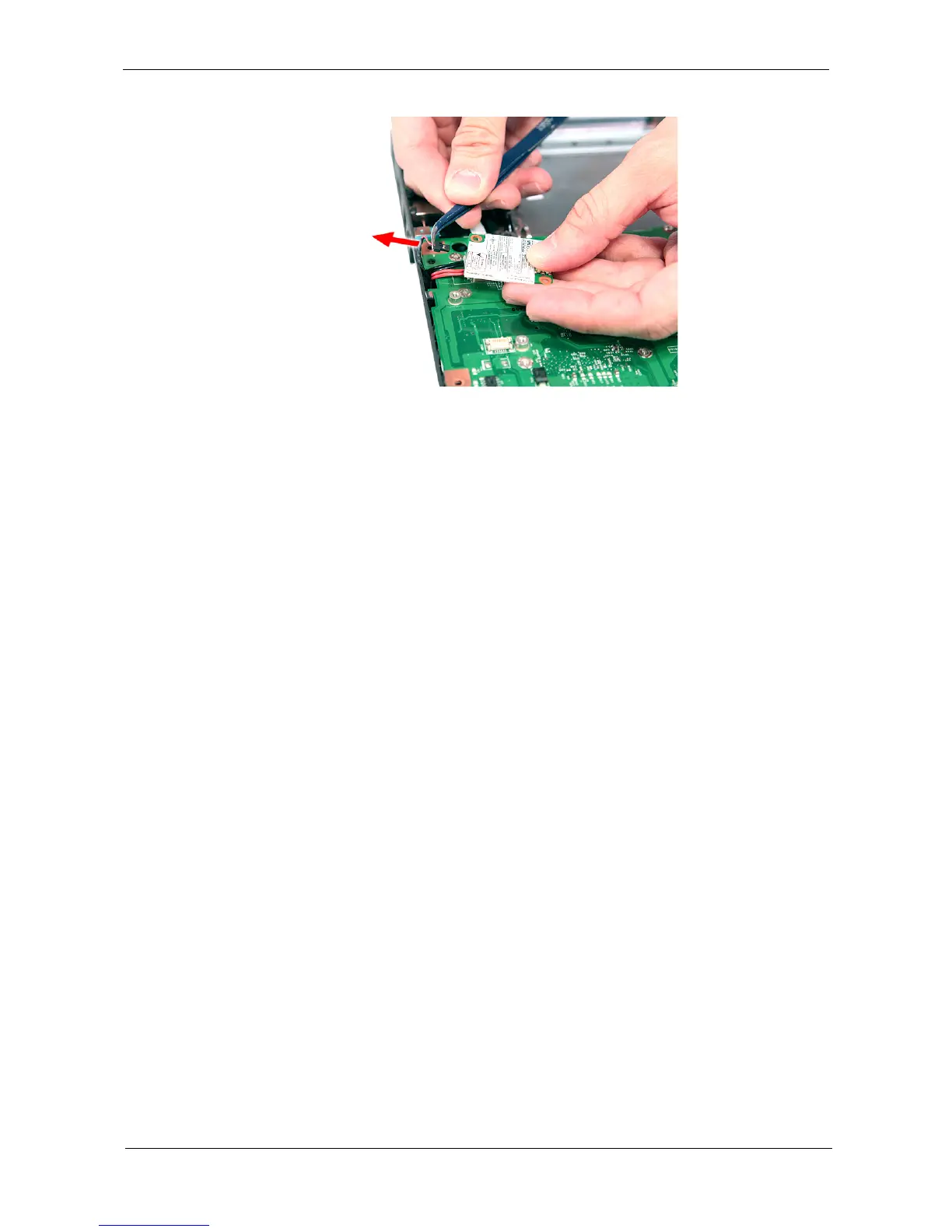

19. Disconnect the cable from the modem board.
Removing the USB Board Module
1. See “Removing the Battery Pack” on page 56.
2. See “Removing the SD dummy card” on page 57.
3. See “Removing the PC and ExpressCard dummy cards” on page 58.
4. See “Removing the Lower Cover” on page 59.
5. See “Removing the DIMM” on page 60.
6. See “Removing the WLAN Board Modules” on page 61.
7. See “Removing the Hard Disk Drive Module” on page 63.
8. See “Removing the Optical Drive Module” on page 64.
9. See “Removing the Middle Cover” on page 68.
10. See “Removing the Keyboard” on page 71.
11. See “Removing the Heatsink Fan Module” on page 72.
12. See “Removing the CPU and VGA Heatsink Module” on page 73.
13. See “Removing the CPU” on page 74.
14. See “Removing the VGA Board (Discrete Model only)” on page 75.
15. See “Removing the LCD Module” on page 76.
16. See “Separating the Upper Case from the Lower Case” on page 78.

Acer TravelMate 5730 Series Specifications

General

Processor	Intel Core 2 Duo
RAM	Up to 4GB DDR2
Resolution	1280 x 800
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista Business
Wireless	802.11a/b/g/n
LAN	Gigabit Ethernet
Card Reader	5-in-1 card reader
Battery Life	Up to 3 hours
Storage	Up to 320GB HDD
Display	15.4-inch
Optical Drive	DVD-Super Multi double-layer
Ports	4 x USB 2.0, VGA, HDMI, ExpressCard/54
Webcam	Integrated
