Machine Maintenance 3-47
Removing the Camera Board 0
1. Perform the “Removing the LCD Bezel” procedure described on page 3-43.
2. Release the camera cable from the adhesive tape securing it.

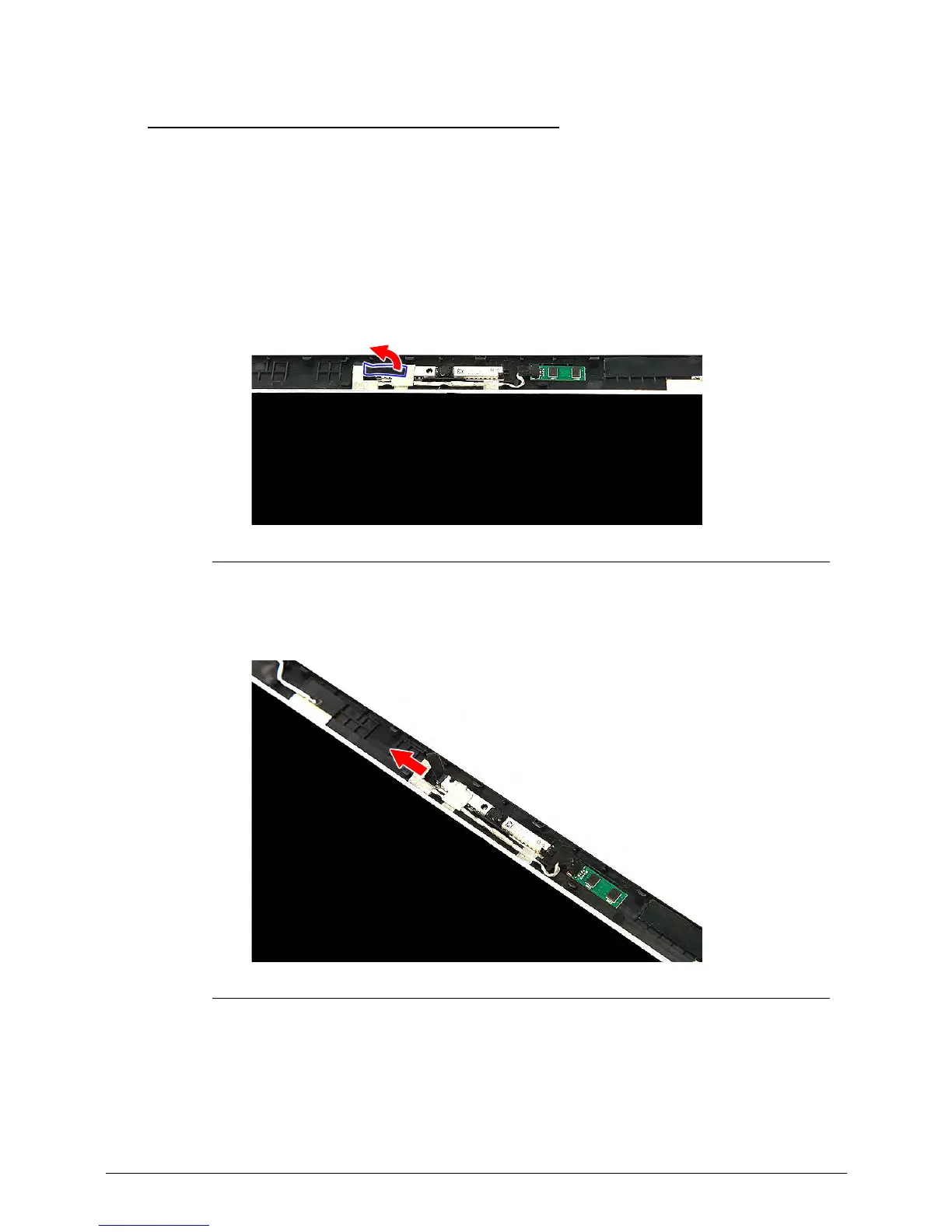

Figure 3-66. Camera Cable Adhesive Tape
3. Disconnect the camera cable from the camera board.
Figure 3-67. Camera Cable
4. Release the camera board from the adhesive tape securing it.
To Next Page
