Machine Maintenance 3-31
Removing the Mainboard 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-21.
2. Perform the “Removing the RF Key Control Module” procedure described on page 3-29.
3. Perform the “Removing the TPM Board” procedure described on page 3-30.

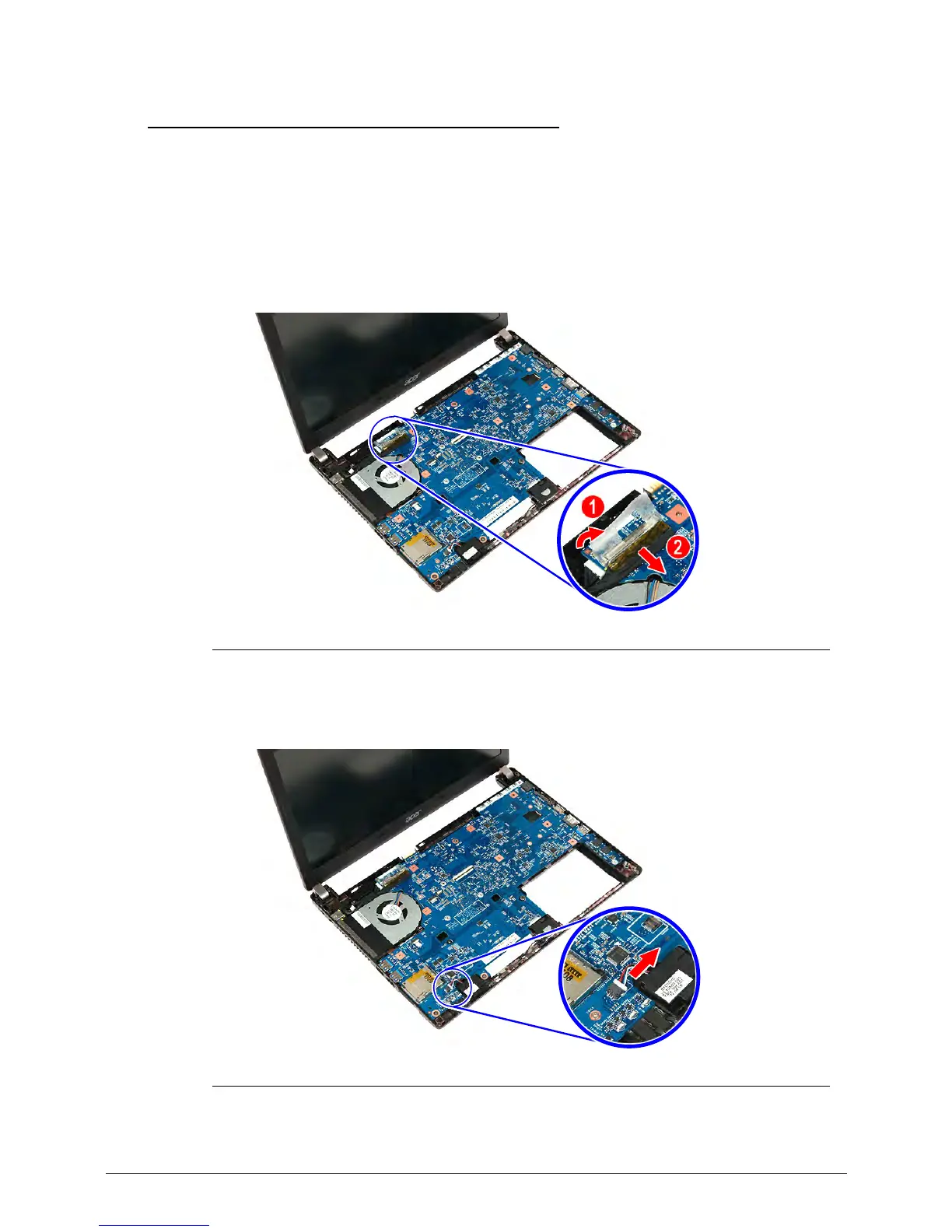

4. Release the LCD cable from the transparent tape securing it to the mainboard (1), then
disconnect the LCD cable from the mainboard (2).
Figure 3-40. LCD Cable Tape
5. Disconnect the speaker cable from the mainboard.
Figure 3-41. Speaker Cable
