Ports and connectors
This section describes the ports and connectors of the Acer USB Type-C Dock
D501.
Note: You computer must feature a USB Type-C port that supports at the
same time the Power Delivery, DP, and data transfer functions.
Views

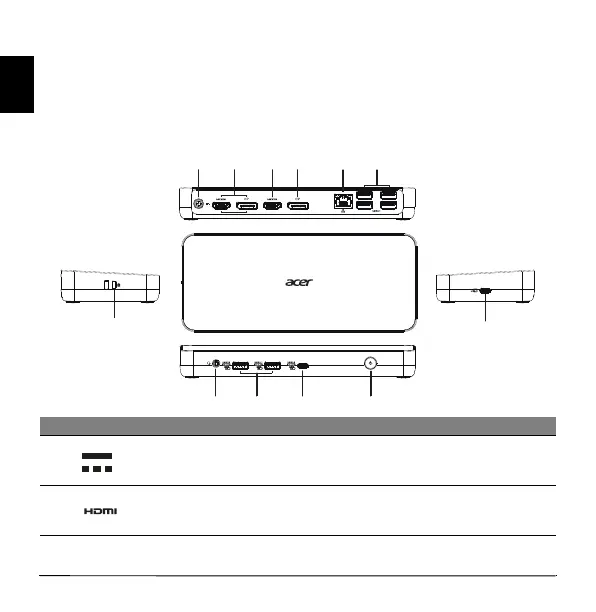

12 34 56
78 9 10
11
12
# Icon Item Description
1 DC-in jack
Connects to the AC adapter to power the dock.
Note: Only use the 110 W power adapter that
comes with the dock.
2
HDMI0 2.0 / DP0 1.4
port
Supports high-definition digital audio/video
connections.
Note: Only one display output at the same time.
