Acer V193W - Page 8

- 8 -
Impedance
50 Ohm TDR Scan
needed for DVI cable and
interface board


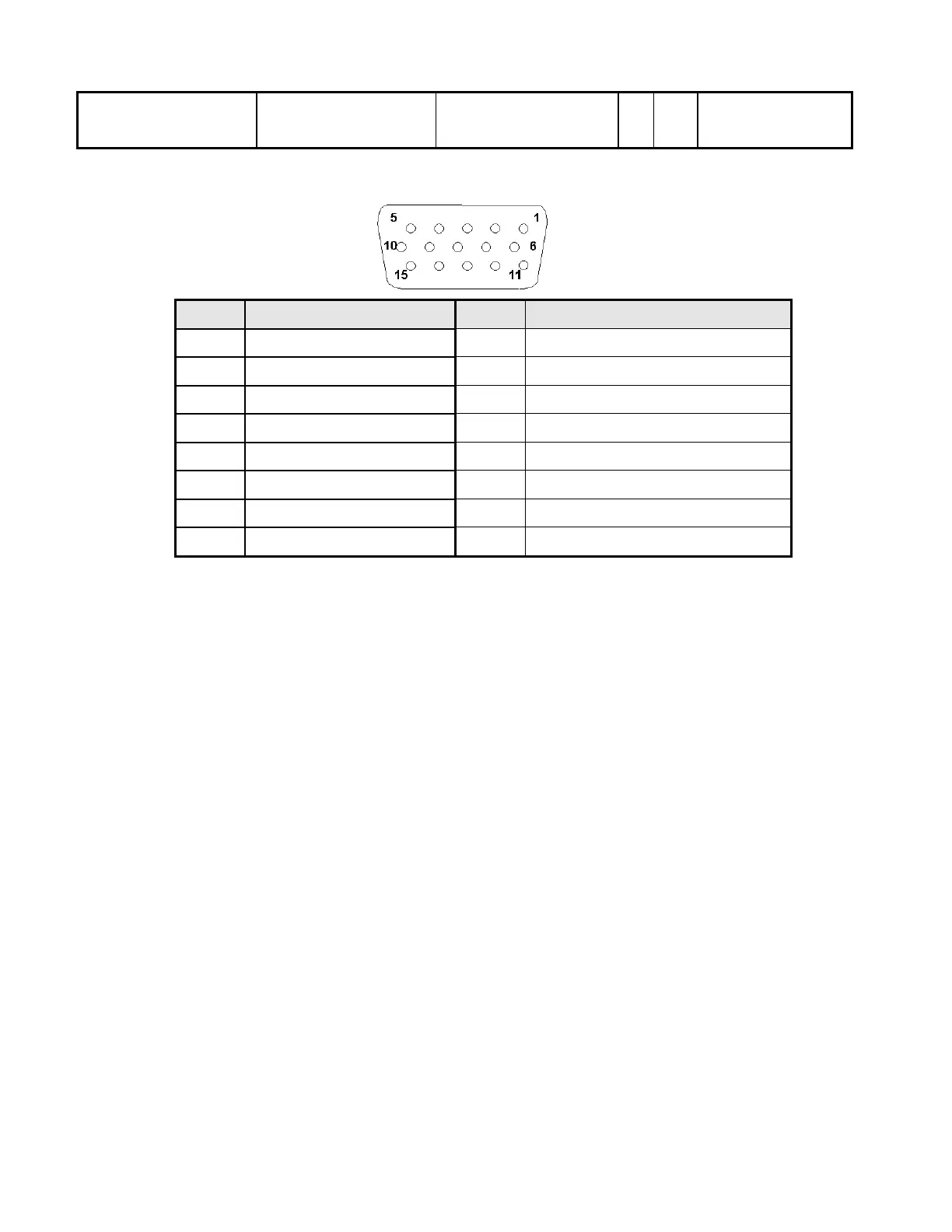

Note-1: The pin assignment of 15-pin D-sub connector is as below,
Pin
Signal Assignment
Pin
Signal Assignment
1
Red video
9
PC5V (+5 volt power)
2
Green video
10
Sync Ground
3
Blue video
11
Ground
4
Ground
12
SDA
5
Cable Detected
13
H-Sync (or H+V)
6
Red Ground
14
V-sync
7
Green Ground
15
SCL
8
Blue Ground
