• H6815/V6815/E8615/E8615C/ET-4K15/HT-4K15/GM834/HV834/VH-735/TH-
735/D4K1735/D4K1732 series
To obtain an image size of 60" set the projector at a distance 1.6 m and 2.1 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
37.5 83 x 47 1.0 1.3 49
40 89 x 50 1.1 1.4 52
50 111 x 62 1.3 1.8 65
60 133 x 75 1.6 2.1 78
70 155 x 87 1.9 2.5 92
80 177 x 100 2.1 2.8 105
90 199 x 112 2.4 3.2 118
100 221 x 125 2.7 3.5 131
120 266 x 149 3.2 4.2 157
150 332 x 187 4.0 5.3 196
200 443 x 249 5.4 7.0 262
250 553 x 311 6.7 8.8 327
300 664 x 374 8.04 10.6 392
Zoom Ratio: 1.3x

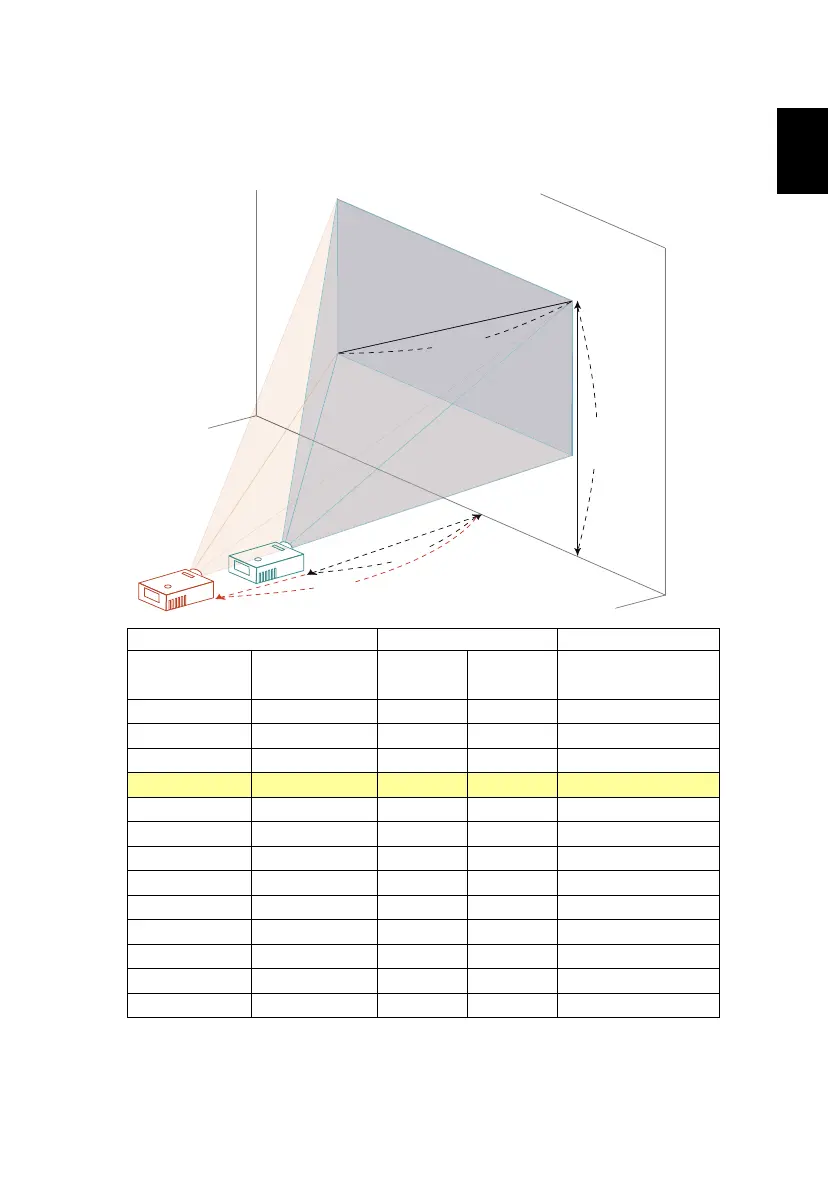

A
C
D
B
Desired Distance
2.1 m
1.6 m
Height: 78 cm
from base to top of
60"
Desired image size
