Acer Acer –LCD-X163W
5

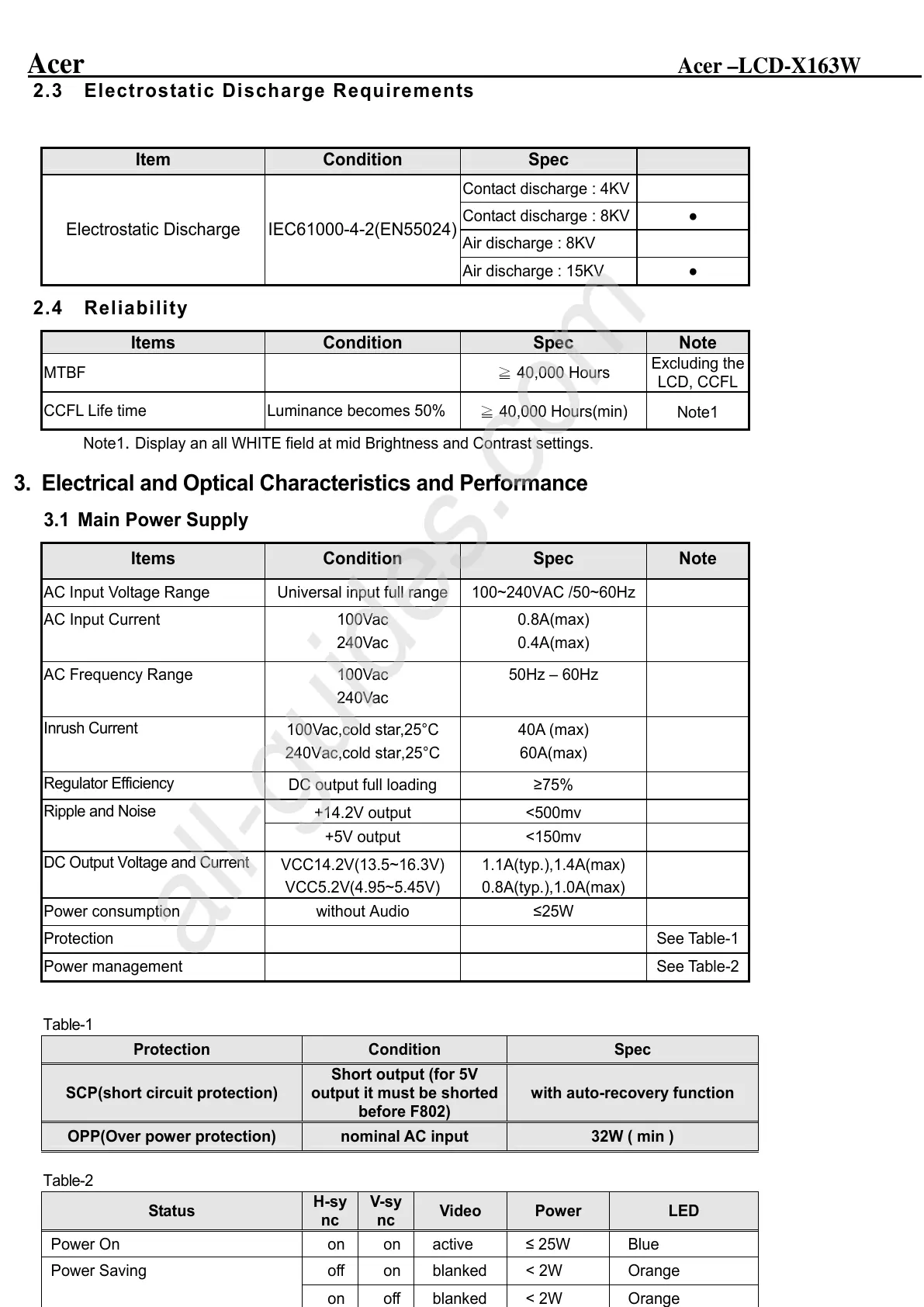

2.3 Electrostatic Discharge Requirements
Item Condition Spec
Contact discharge : 4KV
Contact discharge : 8KV ●
Air discharge : 8KV
Electrostatic Discharge IEC61000-4-2(EN55024)
Air discharge : 15KV ●
2.4 Reliability
Items Condition Spec Note
MTBF ≧ 40,000 Hours
Excluding the
LCD, CCFL
CCFL Life time Luminance becomes 50%
≧ 40,000 Hours(min)
Note1
Note1. Display an all WHITE field at mid Brightness and Contrast settings.
3. Electrical and Optical Characteristics and Performance
3.1 Main Power Supply
Items Condition Spec Note
AC Input Voltage Range Universal input full range 100~240VAC /50~60Hz
AC Input Current 100Vac
240Vac
0.8A(max)
0.4A(max)
AC Frequency Range 100Vac
240Vac
50Hz – 60Hz
Inrush Current
100Vac,cold star,25°C
240Vac,cold star,25°C
40A (max)
60A(max)
Regulator Efficiency
DC output full loading ≥75%
+14.2V output <500mv
Ripple and Noise
+5V output <150mv
DC Output Voltage and Current
VCC14.2V(13.5~16.3V)
VCC5.2V(4.95~5.45V)
1.1A(typ.),1.4A(max)
0.8A(typ.),1.0A(max)
Power consumption without Audio ≤25W
Protection See Table-1
Power management See Table-2
Table-1
Protection Condition Spec
SCP(short circuit protection)
Short output (for 5V
output it must be shorted
before F802)
with auto-recovery function
OPP(Over power protection) nominal AC input 32W ( min )
Table-2
Status
H-sy
nc
V-sy
nc
Video Power LED
Power On on on active ≤ 25W Blue
off on blanked < 2W Orange
Power Saving
on off blanked < 2W Orange
