Acer XB253Q Lifecycle Extension Guide

ACER XB253Q
5

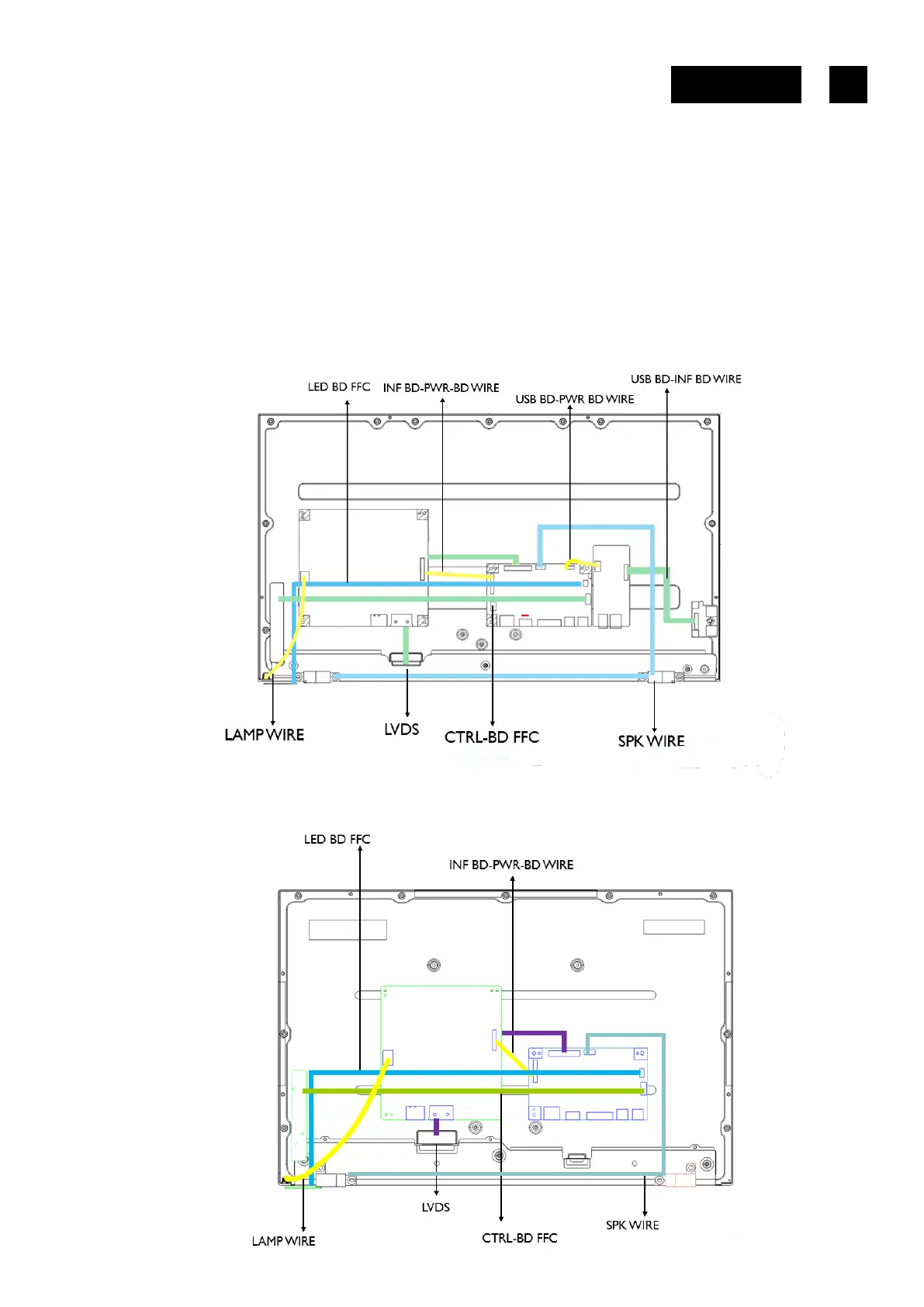

2. Wiring connectivity diagram
There are two types of wiring diagrams for model XB253Q. The wiring connectivity position will be
different according to the ACTUAL PCBA connector position. Please base on different SKU refer to
below diagram.
NOTE: INF BD= Interface Board, PWR BD=Power Board, CTRL BD= Control Board
1. SKU with USB.
2. SKU without USB.

Acer XB253Q Specifications

General

Screen shape	Flat
Backlight type	LED
Display diagonal	24.5 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
Contrast ratio (dynamic)	100000000:1
Display number of colors	16.7 million colors
Display brightness (typical)	400 cd/m²
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
NVIDIA G-SYNC type	G-SYNC Compatible
RMS rated power	2 W
Number of speakers	2
Certification	MPR II
Product color	Black
Market positioning	Gaming
Number of upstream ports	1
USB Type-A downstream ports quantity	4
Cables included	AC, DisplayPort, HDMI, USB
Power consumption (max)	70 W
Power consumption (off)	0.25 W
Power consumption (standby)	0.45 W
Power consumption (typical)	17.4 W

Weight and Dimensions

Depth (with stand)	236.22 mm
Width (with stand)	558 mm
Height (with stand)	513.08 mm
Weight (with stand)	5307 g
Depth (without stand)	66.04 mm
Height (without stand)	330 mm
Weight (without stand)	3220 g
