Acer XV340CKP - Page 18

7

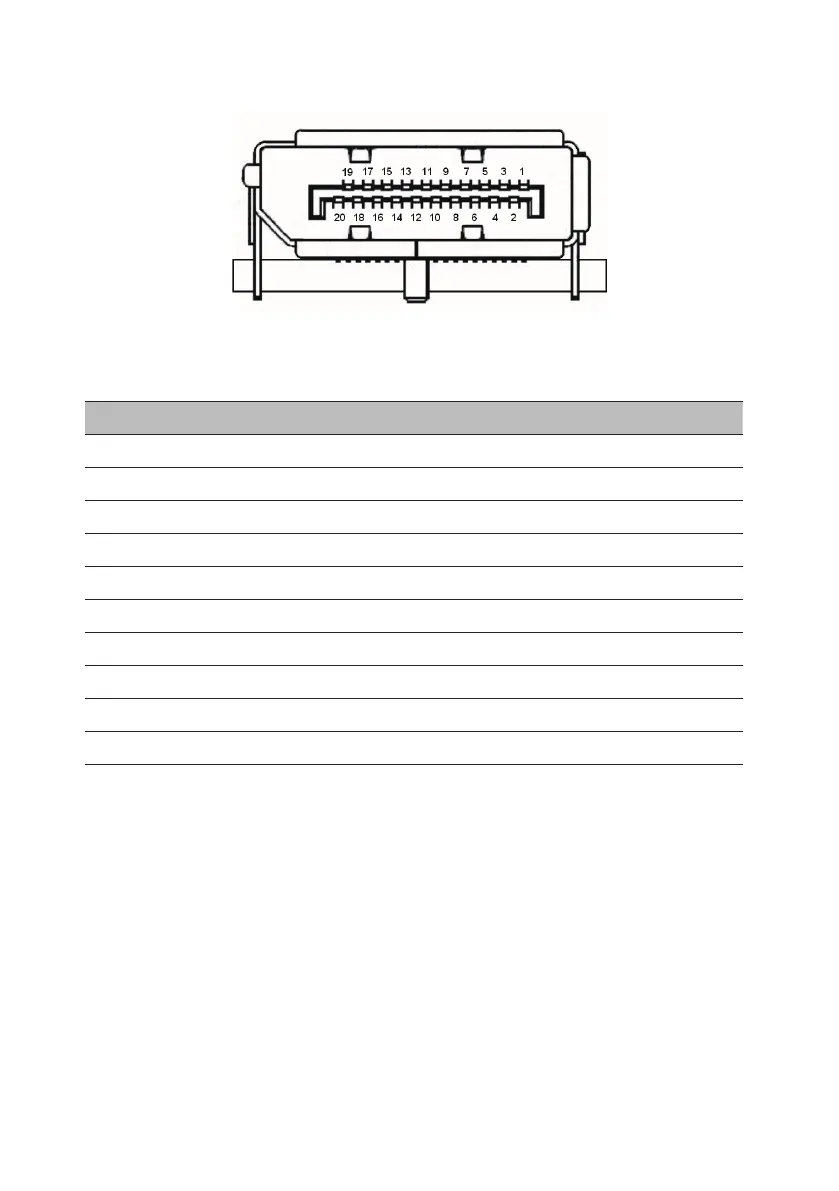

20-pin color display signal cable
PIN No. Description PIN No. Description
1 Lane0 (p) 11 GND
2 GND 12 Lane3 (n)
3 Lane0 (n) 13 Cong 1
4 Lane1 (p) 14 Cong 2
5 GND 15 AUX_CH (n)
6 Lane1 (n) 16 GND
7 Lane2 (p) 17 AUX_CH (p)
8 GND 18 Hot Plug Detect
9 Lane3 (n) 19 DP Power_Return
10 Lane3 (p) 20 DP Power
