3
rd
Screen

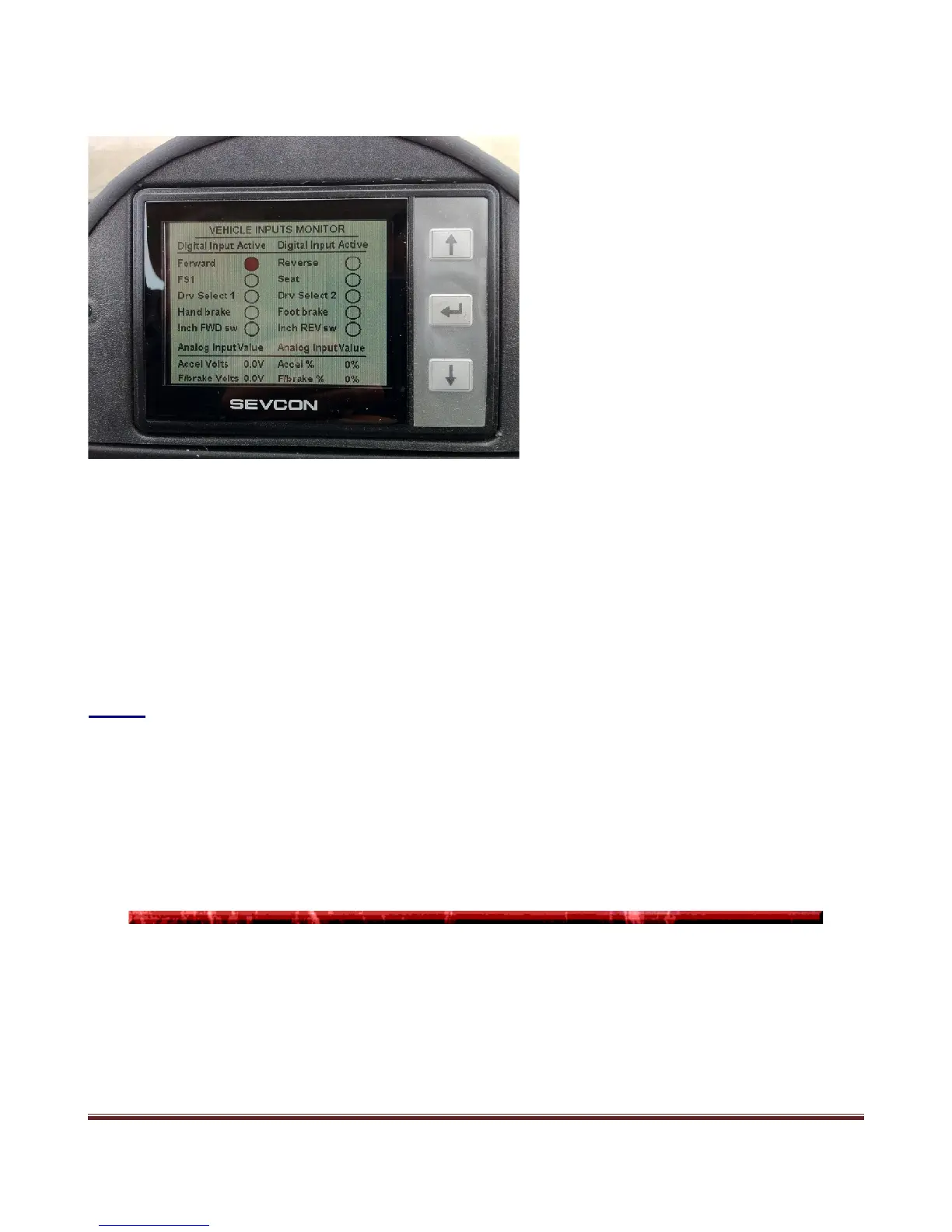

VEHICLE INPUTS MONITOR
on this screen all switch and input signal conditions are displayed:
Forward Reverse
FS1 Seat
Drv Select 1 Drv Select 2
Hand Brake Foot Brake
Inch FWD sw Inch REV sw
Note:
Drive profile #2 (Drv Select 2) is only used for testing Purpose to see the Range of motor on the controller.
Features not used:
Seat
Hand Brake
Inch FWD sw
Inch REV sw
To proceed to a 4
th
Screen push center arrow button [8 ] once.
