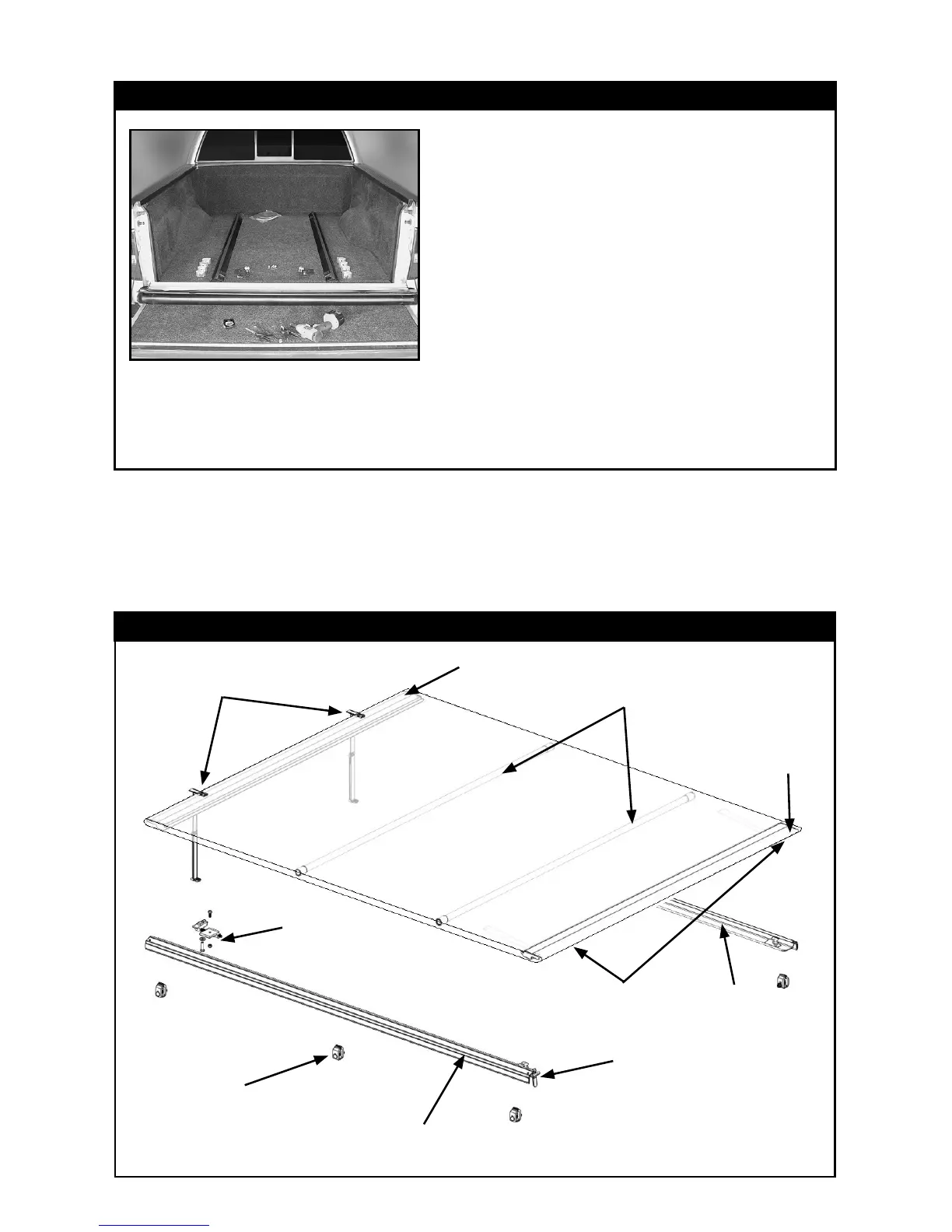

INSTALLATION INSTRUCTIONS:
Note: Side rails and bows are silver nish.
PREPARATION
NOTE ON BED LINERS: With an under-the-rail drop-in bed liner, installation is
possible with minimal trim/cutting of bed liner at front corner of box and back by
tailgate to allow side rail to install properly. Considerable trim/cutting is required
with an over-the-rail drop-in bed liner.
Unpack cover components.
Clean truck box if dirty.
COMPONENTS:
1 driver side rail
1 passenger side rail
6 clamps
1 left and 1 right tension adjuster with nuts & bolts
1 pre-rolled up cover assembly
TOOLS NEEDED:
2 - 1/2” wrenches 1 - Tape measure or ruler
1 - Spring clamp optional Protective eyewear
(to hold rails in place while clamping)
Tension adjuster
Front bar
Storage straps
Support bows
Slide lock on
rear bar
Rear bar
Right side rail
Left side rail
Trigger latch
Rail clamps
PARTS DIAGRAM
