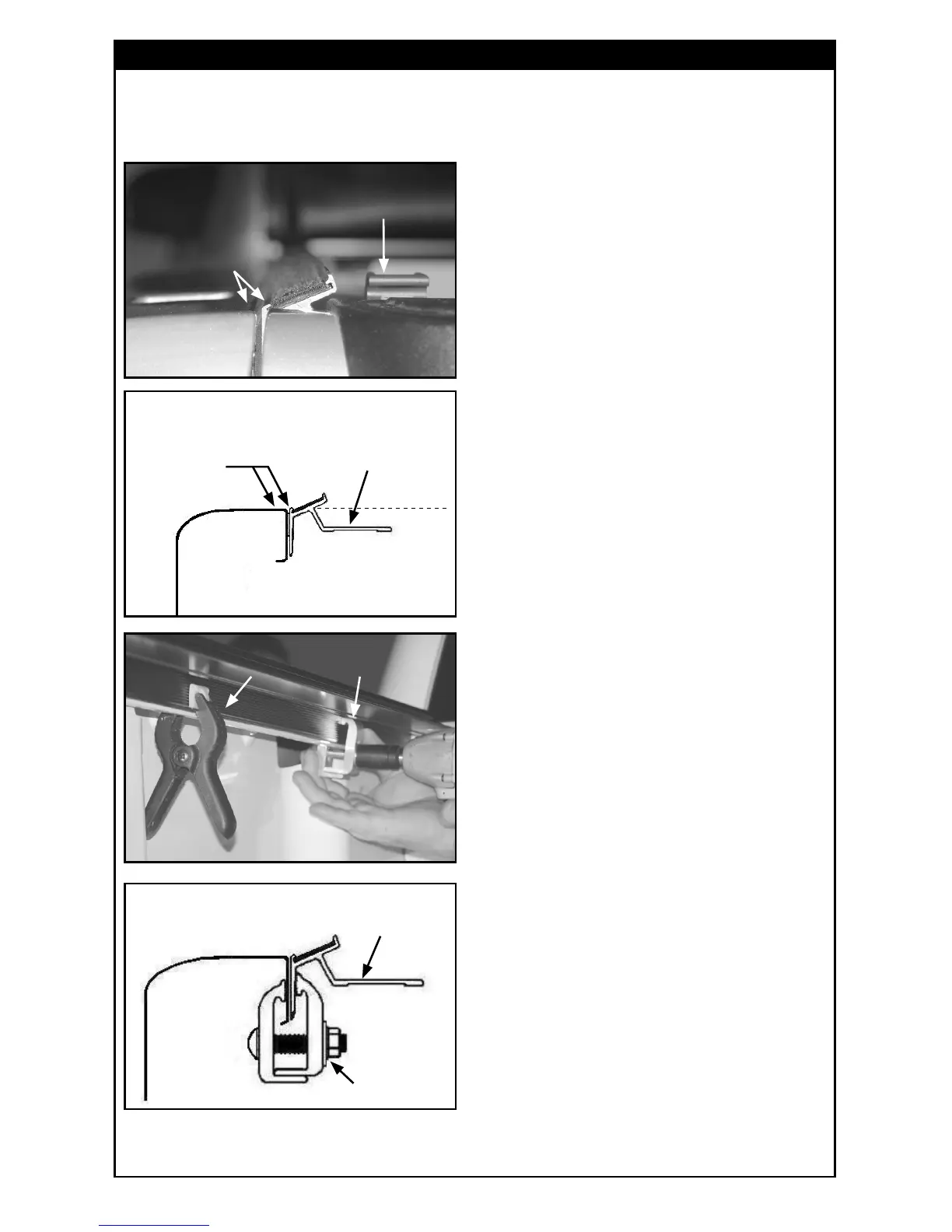

1. INSTALLING COVER SIDE RAILS
Align outside edge
of cover rail as
shown with top of
box rail at front,
center and rear
NOTE: Some installs require drilling/bolting. Those kits will contain special side
rail instructions. Follow those instructions for rail attachment in conjunction
with instructions in this owner’s manual.
This surface of
the rail should
be level
At front set top
of rail ush with
top of box
B. At front, adjust top of rail ush with
top of box and hold it there with as-
sistance of another person or with a
spring clamp.
First clamp
at front
Temporary
spring clamp
C. Install rst clamp as close to front
of bed as possible and use 1/2”
wrench to tighten.
This surface of
rail should be
level
D. With rail ush at top of box and
clamp teeth engaged, tighten clamp.
Check if rail is level. If rail tilts up,
loosen clamp; lower it; engage teeth;
and tighten it. If rail tilts down, loosen
clamp; raise it; engage teeth; and
tighten it.
A. Position side rail with weather strip
against inside lip of box. Push rail
forward until it touches front of
box. End of rail with strike goes to
rear.
Adjust clamps
up or down
until they hold
rail level when
tightened
IMPORTANT: To keep rail on
truck secure, make sure clamp
teeth engage grooves on rail,
turn nut nger tight and then use
wrench to nish tightening.
Nylon strike
to rear
To Next Page
