12
INSTALLATION

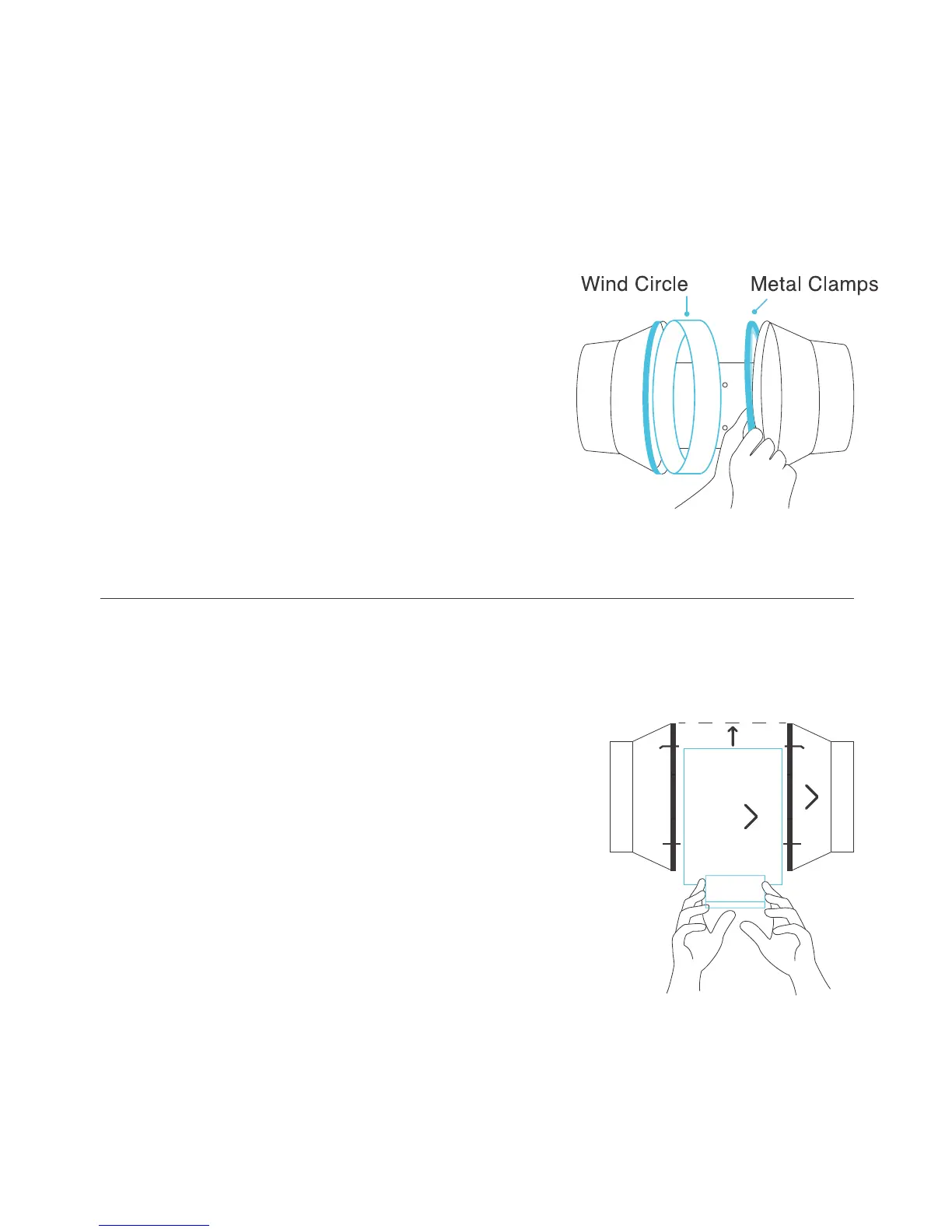

STEP 7
If your model has metal fixing
clamps, position them back onto
the input and exhaust flanges.
Also, remember to position the
wind circle back to the flange.
Do not tighten the screws yet.
STEP 8
Secure the motor box back onto
mounting flanges. Please make sure
the airflow direction marking on the
motor box matches the marking on
the exhaust flange.
