18
SECTION 18 RS 232 DATA FORMATS / INSTALLATION NOTES

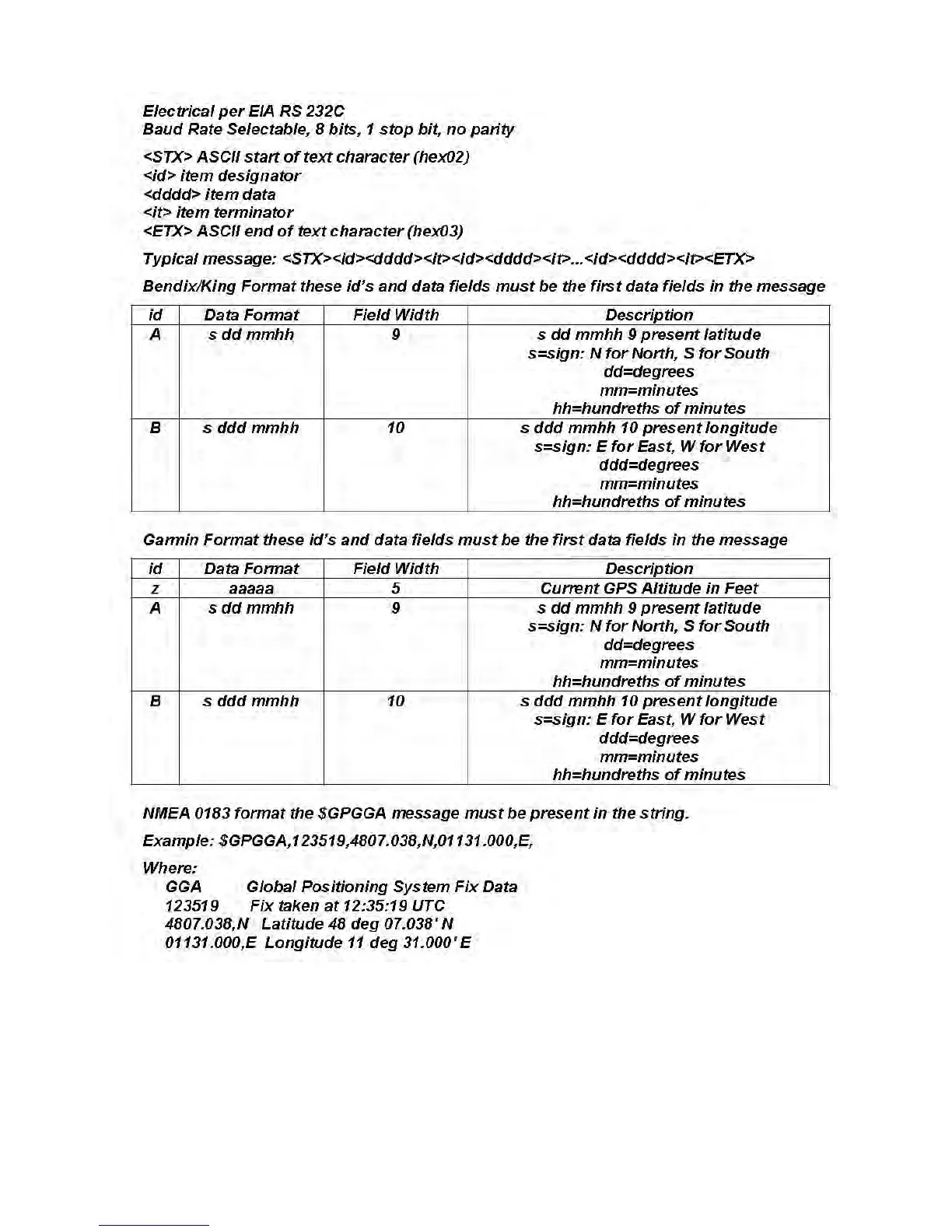

The following data messages are recognized by the model E-04 RS 232 GPS interface:
GPS installation notes:
1.) Garmin portable x96 series (i.e. 469, 596 etc.) GPS: the output should be set to TIS In/
NMEA & VHF Out, this sets the baud rate to 9600 which is the default baud rate of the E-04.
NEMA In/NMEA Out may also be used at a different baud rate. Under advanced NEMA settings
the data rate should be set to “normal” not “fast” and Garmin priority should be set to “Off”.
2.) Bendix/King, and Garmin panel mount receivers use RS 232 aviation format out @9600
baud.
3.) Avidyne IFD540 Revision 9.3 and above, use RS 232 aviation message out @ 9600 baud.
4.) The ELT is also compatible with most ARNAV, II Morrow, and Trimble Navigation GPS
receivers. Please contact the GPS manufacture for the proper RS 232 configuration that
conforms to our data input requirements above.
