22B

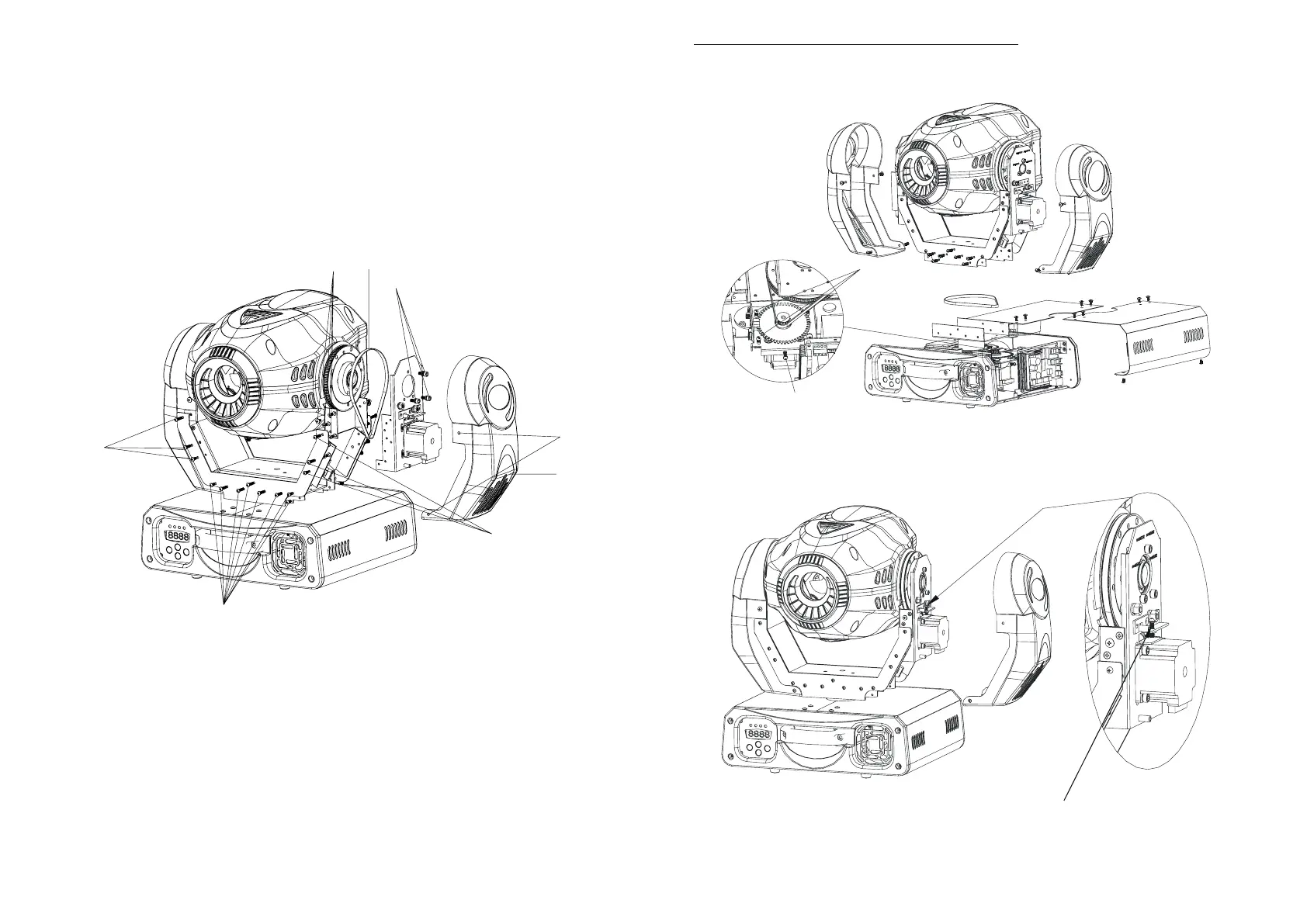

H. If The tilt belt is broken
1. Turn off the main power.
2. Unscrew all the screws (A) and open the right arm cover (B).
3. Unscrew the screws (C), the screws (D) and screws (E) that fix the bridge.
4. Change a new belt (F). Please adjust the tension of the belt properly. Note: it is too tight to
rupture.
5. Reverse the procedures from point 3 to 2 .
A
B
C
C
E
D
C
F
23B
Pay attention to the belt tension when install the belt.
Please refer to the photos below:
F
G
Photo 1
Adjust belt tension through loose the screw
Photo 2
