2. Technical Specification
Power supply
-
AC 120V~60Hz or AC 230/240/250V~50/60Hz
Lamp
-
HMI 575W / HMQ 575/2 lamp base:SFc10-4
Optical system
- High efficiency optical system
- High quality optical lens and dichroic colors
- Beam angle: 14°
Shutter/Dimmer
- Blackout, 0~100 smooth dimming and strobe speed
variable(1~10 flashes per
second).
Color wheel
- Independent color wheel with 9 trapezoid
dichroic colors plus white.
- Color wheel rotates with variable speed, giving rainbow effect.
Gobo wheel
- Independent gobo wheel with 9 replaceable gobos
plus open.
- Independent gobo wheel with 7 rotating, replaceable gobos
plus open.
Effect Wheel
- Prism/Rotating Prism
Movement
- Pan: 540° in 2.8 second.
- Tilt: 270° in 1.6 second.
DMX Channels
- Standard DMX 512 signal addressing and can be controlled by any universal DMX
controller.
16 Channels:
Channel 1 = Pan Channel 9 = Gobo 2
Channel 2 = Tilt Channel 10 = Gobo 2 Rotation
Channel 3 = Pan/Tilt Speed select Channel 11 = Prism
Channel 4 = Dimmer Channel 12 = Prism Rotation
Channel 5 = Shutter/Shaking Channel 13 = Focus
Channel 6 = Color Channel 14 = Pan 16 bit
Channel 7 = Iris Channel 15 = Tilt 16 bit
Channel 8 = Gobo 1 Channel 16 = Reset/Lamp on/off
5B

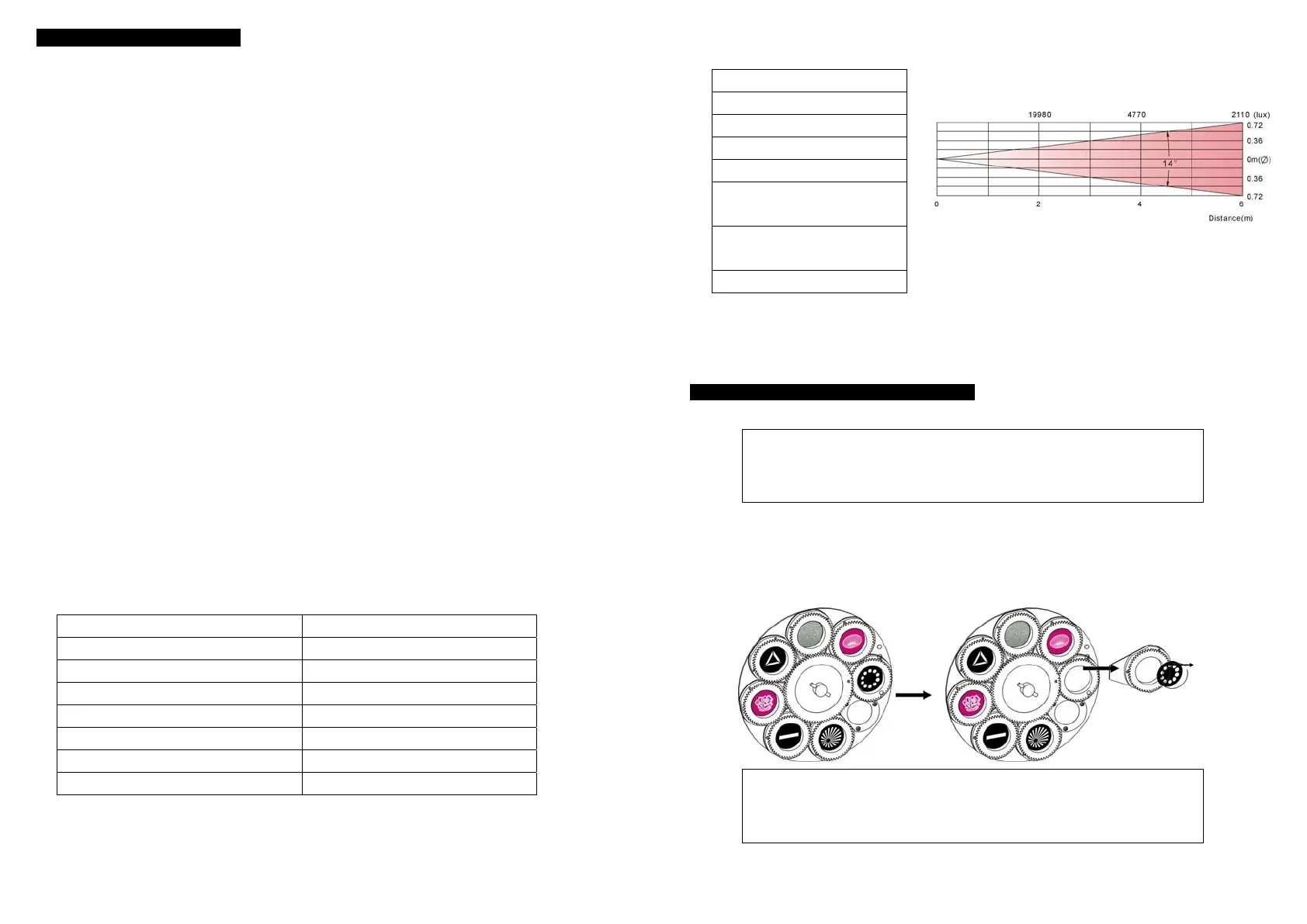

8 Channels: Luminous intensity:
Channel 1 = Pan
Channel 2 = Tilt
Channel 3 = Shutter
Channel 4 = Gobo
Channel 5 = Color
Channel 6 = Gobo Rotation /
Iris
Channel 7 = Prism/Prism
Rotation/Dimmer
Channel 8 = Focus
Dimension: 427 x 478 x 369 mm (L x W x H)
Weight: 28.5 kg
2.1. Inserting/Exchanging rotating gobos
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
Open the cover by loosening the fastening screw at the sides of the cover.
If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be
exchanged, remove the fixation ring with an appropriate tool. Remove the gobo and insert
the new gobo. Press the fixation-ring together and insert it in the front of the gobo.
CAUTION!
Never unscrew the screws of the rotating gobo as the ball bearing
will otherwise be opened!
