OPERATIONAL PROBLEMS

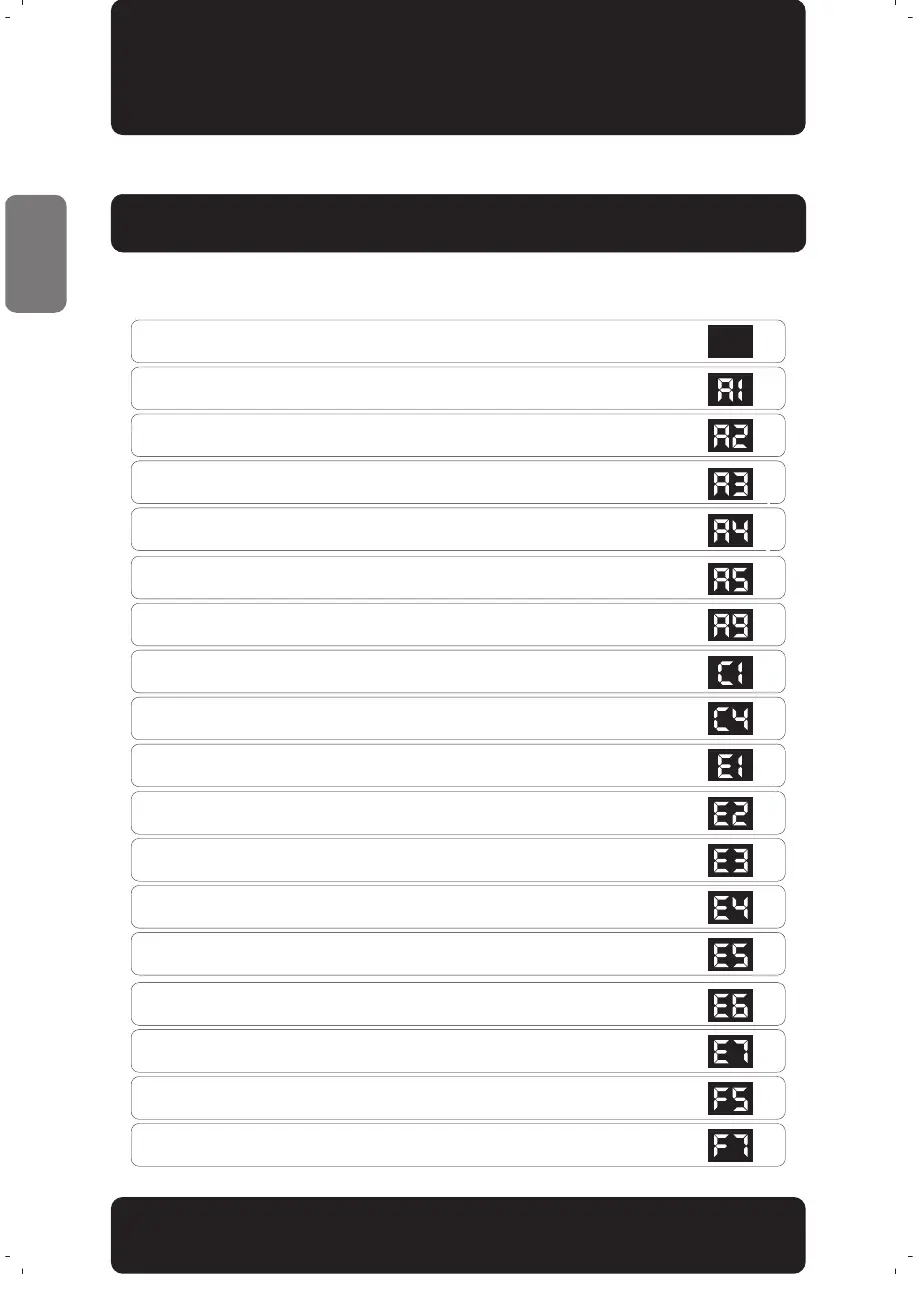

DIAGNOSTIC DISPLAY
When the stairlift is switched on, the diagnostic display underneath the
seat is illuminated. During normal operation it will display these symbols:
7KHVWDLUOLIWLVVZLWFKHGR˨RULQVOHHSPRGH
see page 20
.
The stairlift is ready to use but the batteries are not being charged - Check mains
electricity supply is switched on and the stairlift is parked on its charge points.
Moving Up (arm switch control)
Moving Down (arm switch control)
Moving Up (Remote control)
Moving Down (Remote control)
Lift waiting for hinge to operate
Batteries are charging
Batteries are fully charged
Down side foot sensitive safety edge has been activated - Check for obstructions.
Up side foot sensitive safety edge has been activated - Check for obstructions.
Under foot plate sensitive safety edge has been activated - Check for obstructions.
Down side sensitive safety edge has been activated - Check for obstructions.
Up side sensitive safety edge has been activated - Check for obstructions.
The seat is swivelled away from its operating position.
Battery low – Bring the unit down to the nearest charging station. The unit won’t allow the user to
WUDYHOLQWKH83GLUHFWLRQXQWLOWKHEDWWHULHVDUHVX˫FLHQWO\FKDUJHGDQGWKHFRGHKDVFOHDUHG
%DWWHU\˪DWɷ$XGLEOHDODUPɷ3UHVVWKHDUPVZLWFKFRQWURORUWKHUHPRWHFRQWURORQFH
to stop the alarm. Bring the unit down to the nearest charging station.
If this symbol is displayed, DO NOT use the hand winder in the down direction as
this could damage the stairlift. Contact your stairlift supplier immediately.
