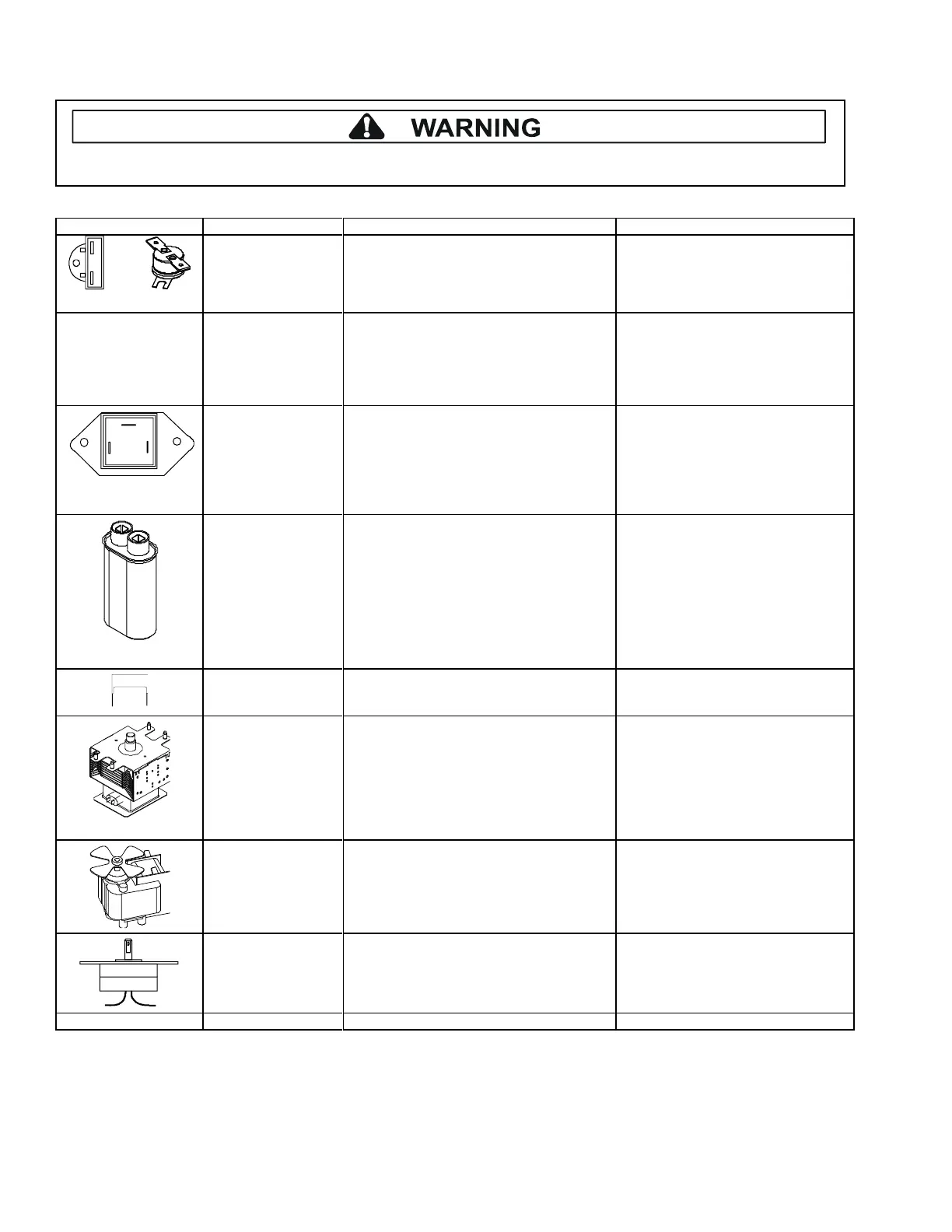

Component Testing Procedures
To avoid risk of electrical shock, personal injury, or death, disconnect power to oven and discharge capacitor
before servicing, unless testing requires it.
16500038 July 2012
©2012 ACP, Inc.
2
Illustration
Component
Testing
Thermal Cutout
Disconnect all wires from TCO.
Measure resistance across terminals.
Cavity Thermal Fuse ...................................
Magnetron TCO ...........................................
Diode Assembly
Discharge Capacitors
Remove diode lead from capacitor and
connect ohmmeter.
Reverse leads for second test.
MT2
MT1 GATE
Triac
Disconnect wires to triac.
Measure resistance from:
MT1 to MT2 .................................................
MT1 to Gate ................................................
MT2 to Gate ................................................
All terminals to ground .................................
Capacitor Doubler
Discharge Capacitors
Remove wires from capacitor terminals and
connect ohmmeter, set on highest
resistance scale to terminals.
Also check between each terminal and
capacitor case.
Snubber Assembly
Disconnect wires to snubber.
Measure resistance across terminals.............
Magnetron
Discharge Capacitors
Remove wires from magnetron and connect
ohmmeter to terminals. Also check
between each terminal and ground.
Blower Motor
Remove all wires from motor.
Measure resistance across coil .......................
Antenna motor
Remove all wires from motor.
Measure resistance across terminals..............
Wire Harness
Test continuity of wires ...................................
