Attachment to Lifejacket Oral Inflation Tube Using Oral Inflation Clip

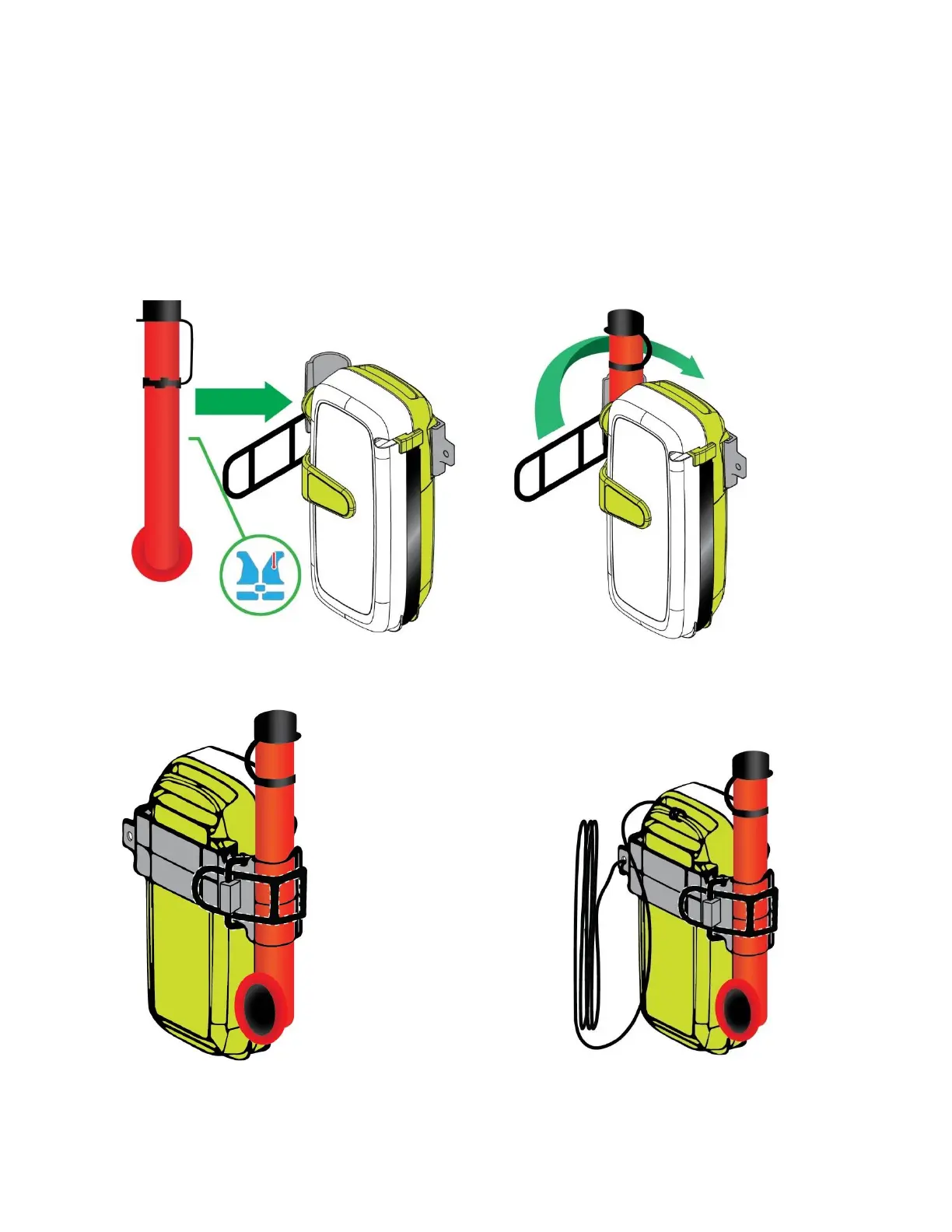

After attaching the Oral Inflation Clip (with mounting strap attached to the clip) as
shown above, steps 1-4 below show how the clip is attached to the lifejacket’s Oral
Inflation Tube.
Step 1 Step 2
Step 3 Step 4
