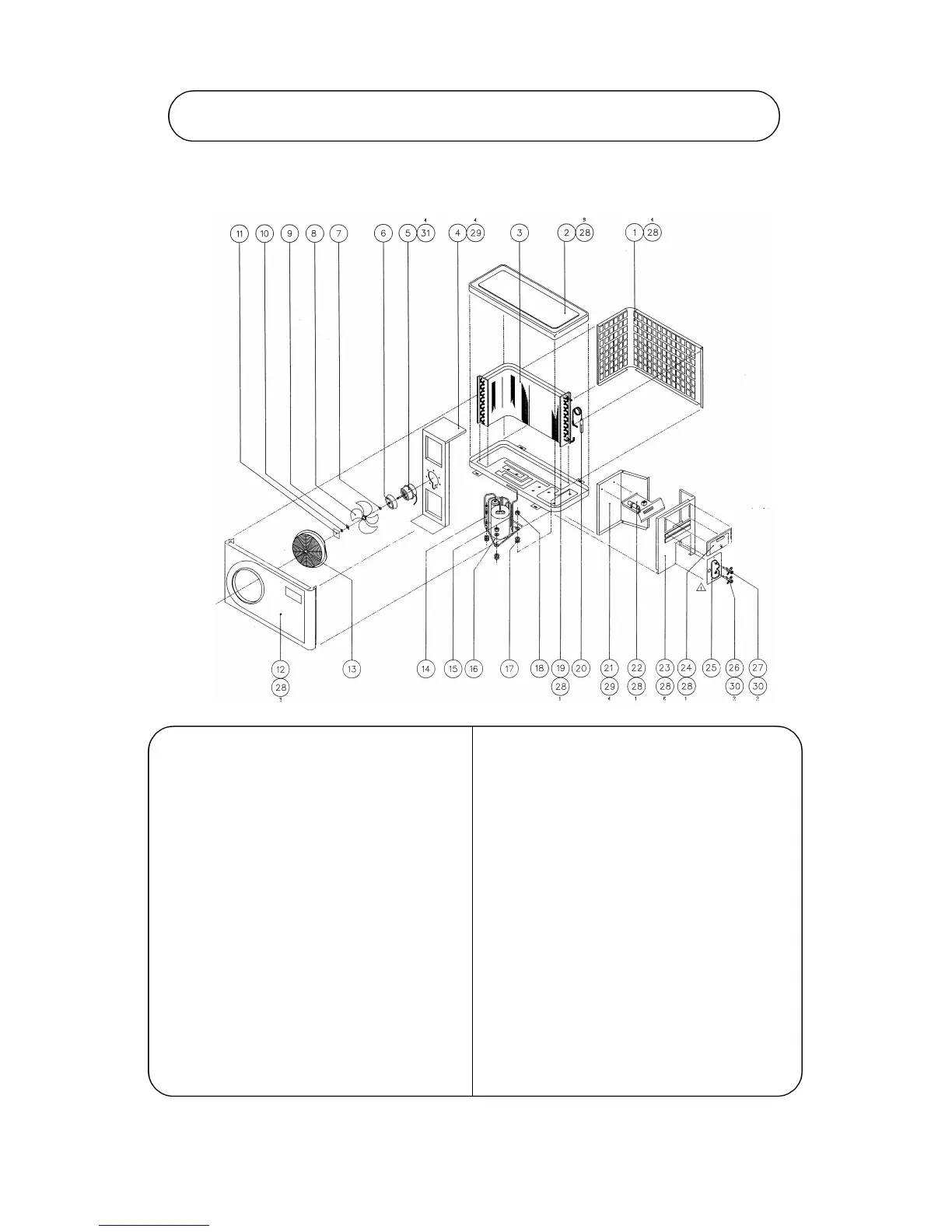

MODEL : A4LC 10/15/20/25B
1. BACK PANEL 16. ROTARY COMPRESSOR
2. TOP PANEL 17. RUBBER GROMMET
3. CONDENSER COIL ASSY. 18. COMPRESSOR NUT
4. FAN MOTOR BRACKET 19. BASE PAN ASSY.
5. FAN MOTOR 20. CAPILLARY TUBE ASSY.
6. FLINGER 21. PARTITION
7. RING WASHER 22. TERMINAL BOX PANEL ASSY.
8. FAN BLADE 23. SIDE PANEL
9. SQUARE WASHER 24. ACCESS PANEL
10. HEX NUT 25. FLARE VALVE MOUNTING PLATE
11. BLACK LABEL 26. SUCTION VALVE (5/8”)
12. FRONT PANEL 27. LIQUID VALVE
13. OUTER NOZZLE
14. SUCTION PIPE ASSY.
15. DISCHARGE PIPE ASSY.
