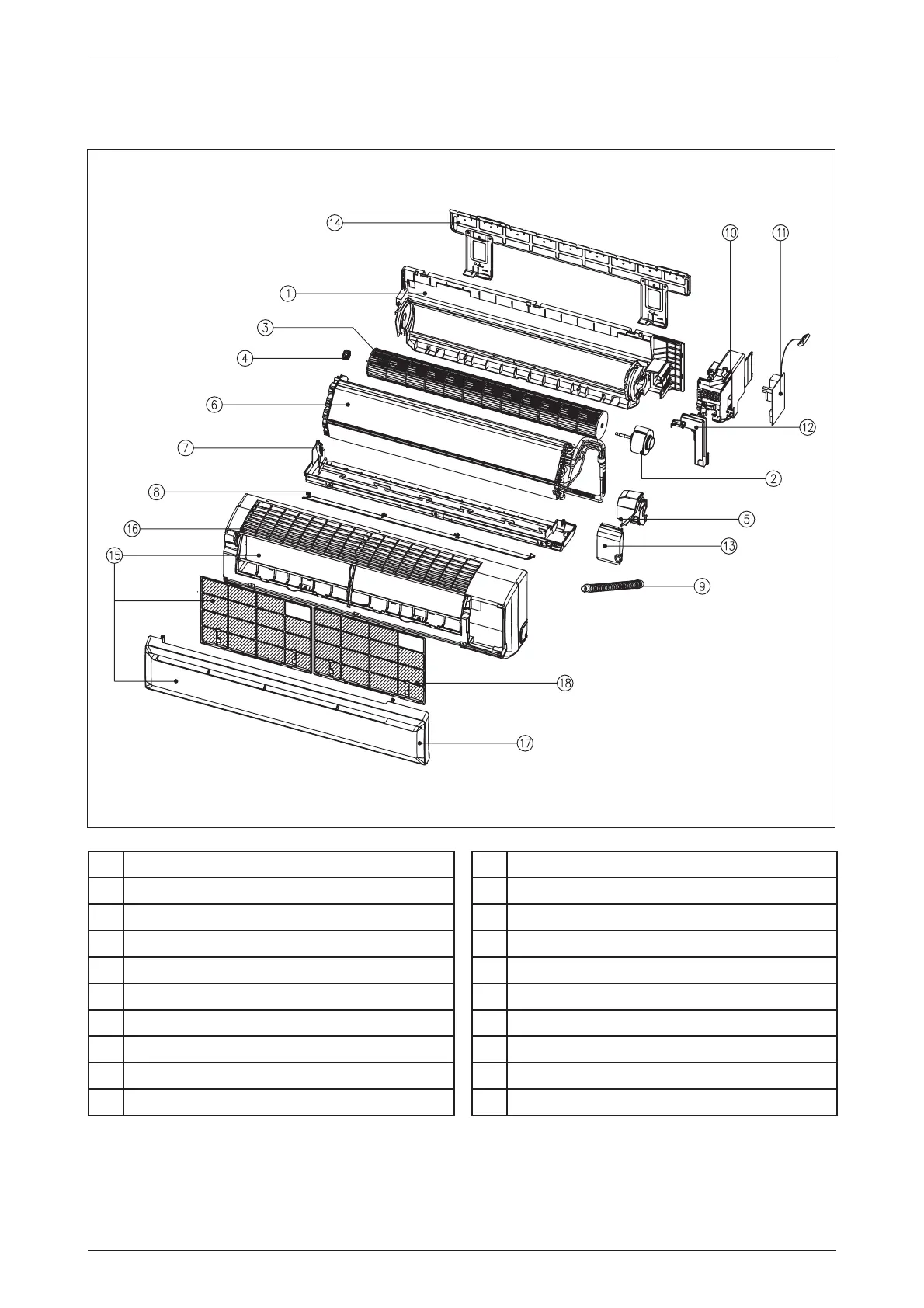

Exploded View and Part List A5MSY-2010
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Indoor Unit
Model: A5WMY 20/25JR
No Description
1
Assy. Chasis
2
Motor
3
Blower
4
Fan Bush
5
Cover, Motor
6
Assy. Heat Exchanger
7
Assy. Air Discharge Housing
8
Assy. Louver
9
Hose
No Description
10
Assy. Control Box
11
Assy. Control Module
12
Cover, Control Box
13
Cover, Service
14
Assy. Mounting Plate
15
Assy. Front Cover
16
Cover, Front
17
Intake Grille
18
Filter
