MODEL : AMSD 1020A / 1520 A

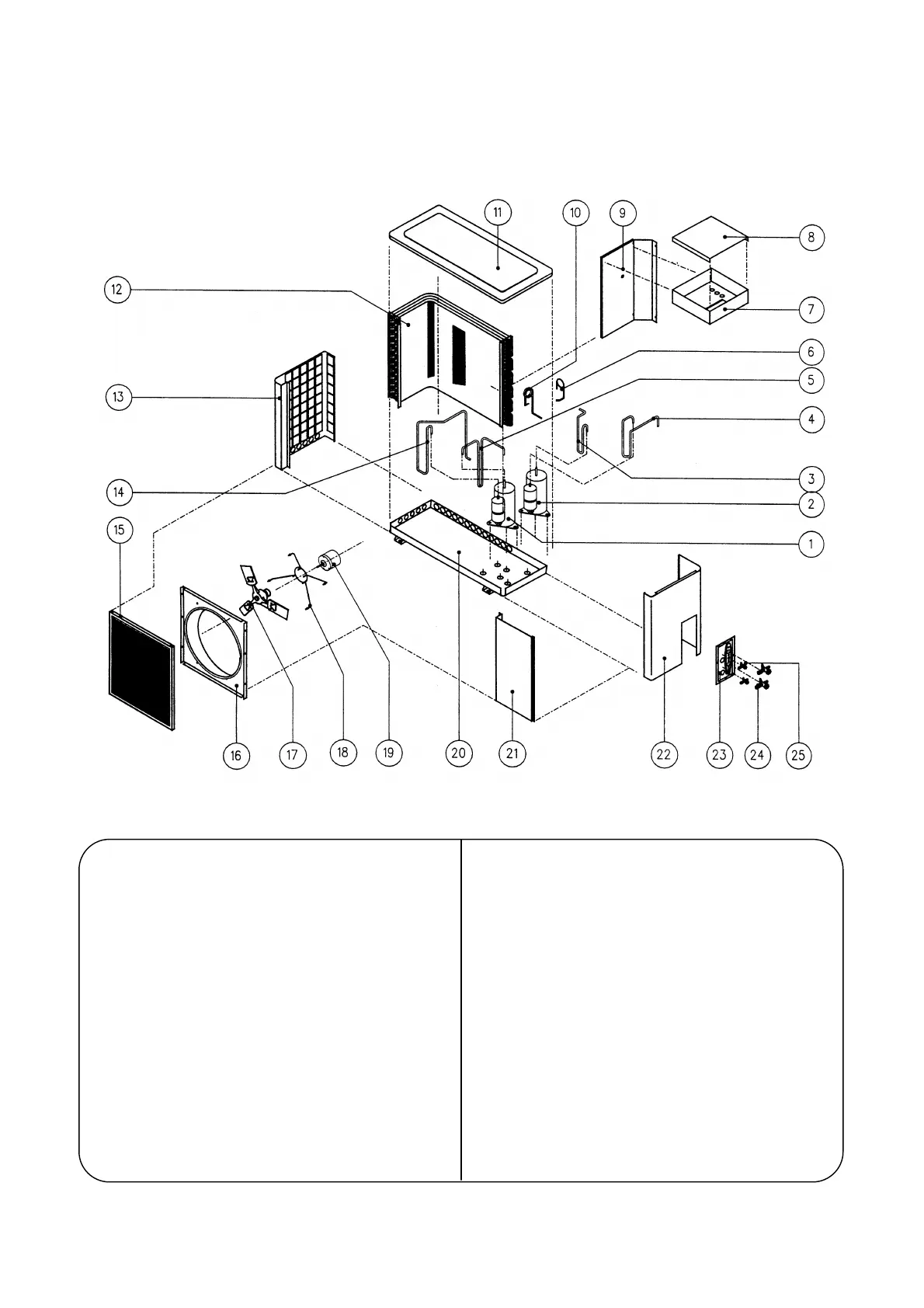

1. ROTARY COMPRESSOR 2 (1.0/1.5HP) 14. SUCTION TUBE 2
2. ROTARY COMPRESSOR 1 (2.0HP) 15. FAN GUARD
3. DISCHARGE TUBE 1 16. ORIFICE FOR 18” PROPELLER
4. SUCTION TUBE 1 17. FAN BLADE 18”
5. DISCHARGE TUBE 2 18. FAN MOTOR BRACKET
6. CAP. TUBE 2 ASSY 19. FAN MOTOR
7. CONTROL BOX ASSY 20. BASE PAN ASSY
8. CONTROL BOX COVER 21. FRONT PANEL
9. PARTITION 22. SIDE PANEL RIGHT
10. CAP. TUBE 1 ASSY 23. VALVE PLATE
11. TOP PANEL 24. FLARE VALVES (GAS)
12. CONDENSER COIL ASSY 25. FLARE VALVES (LIQUID)
13. SIDE PANEL LEFT
